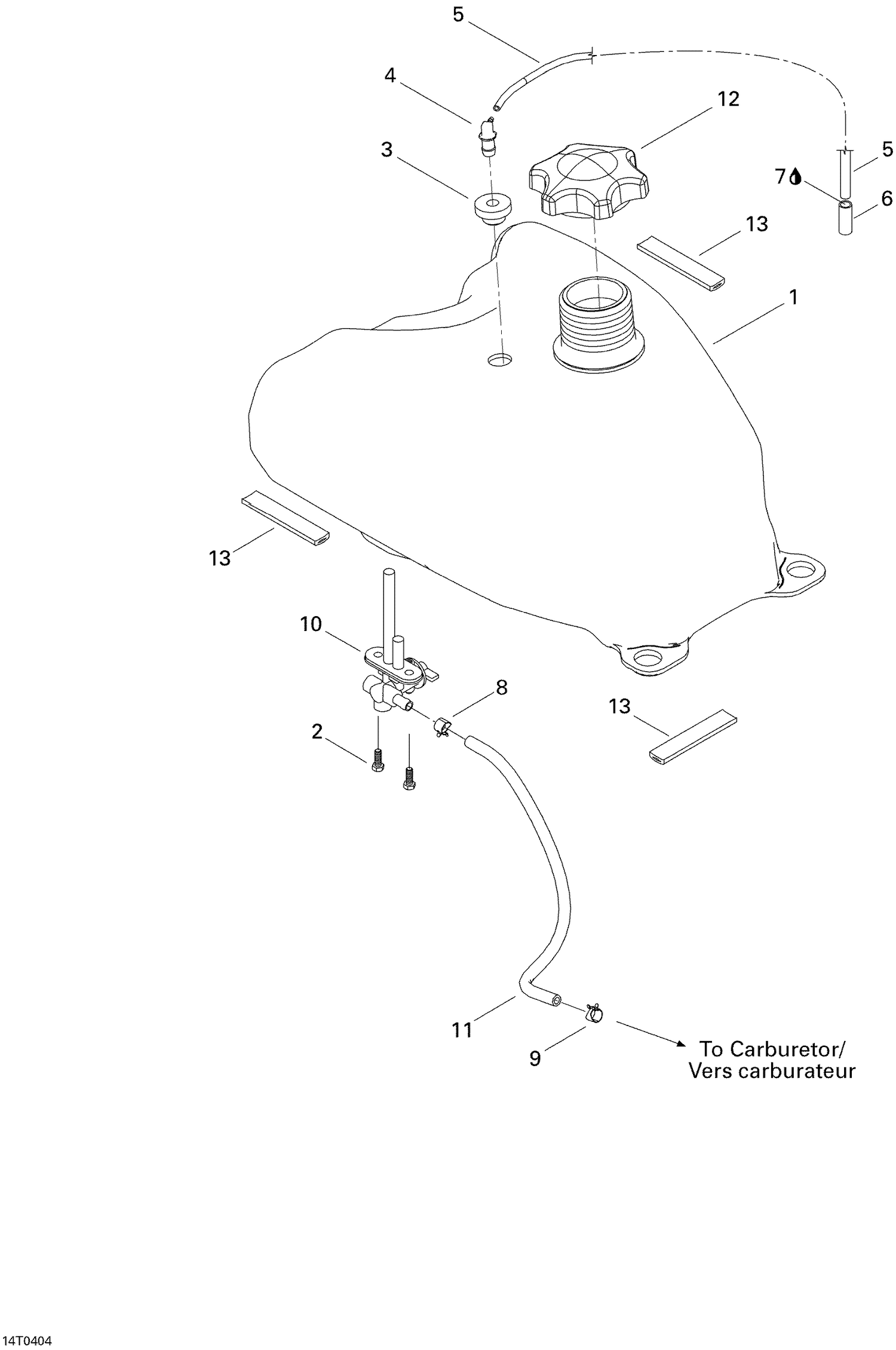

02- Fuel System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK - Call your local BRP dealership
709000010
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Screw M5 X 14
207151444
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
Grommet
570045500
|
$6.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Male Connector
414814100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDS DESCRIPTION
219704409
Superseded by 219704709
|
$11.63 | ||
|
Unavailable |
|||
|
#6
Was 415110000 Polyurethane Hose 5.2 mm
219704414
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADHESIVE LOCTITE 414 28ML - Call your local BRP dealership
219704463
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring Clamp
414655700
|
$0.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Oetiker Clamp
293650125
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FUEL VALVE - Call your local BRP dealership
709000011
|
$49.99 | ||
|
Unavailable |
|||
|
#11
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership
219704422
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Fuel Tank Cap 91 Octane
513033024
Superseded by 513033722
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Neoprene Seal (1PAC=3M)
219704364
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
