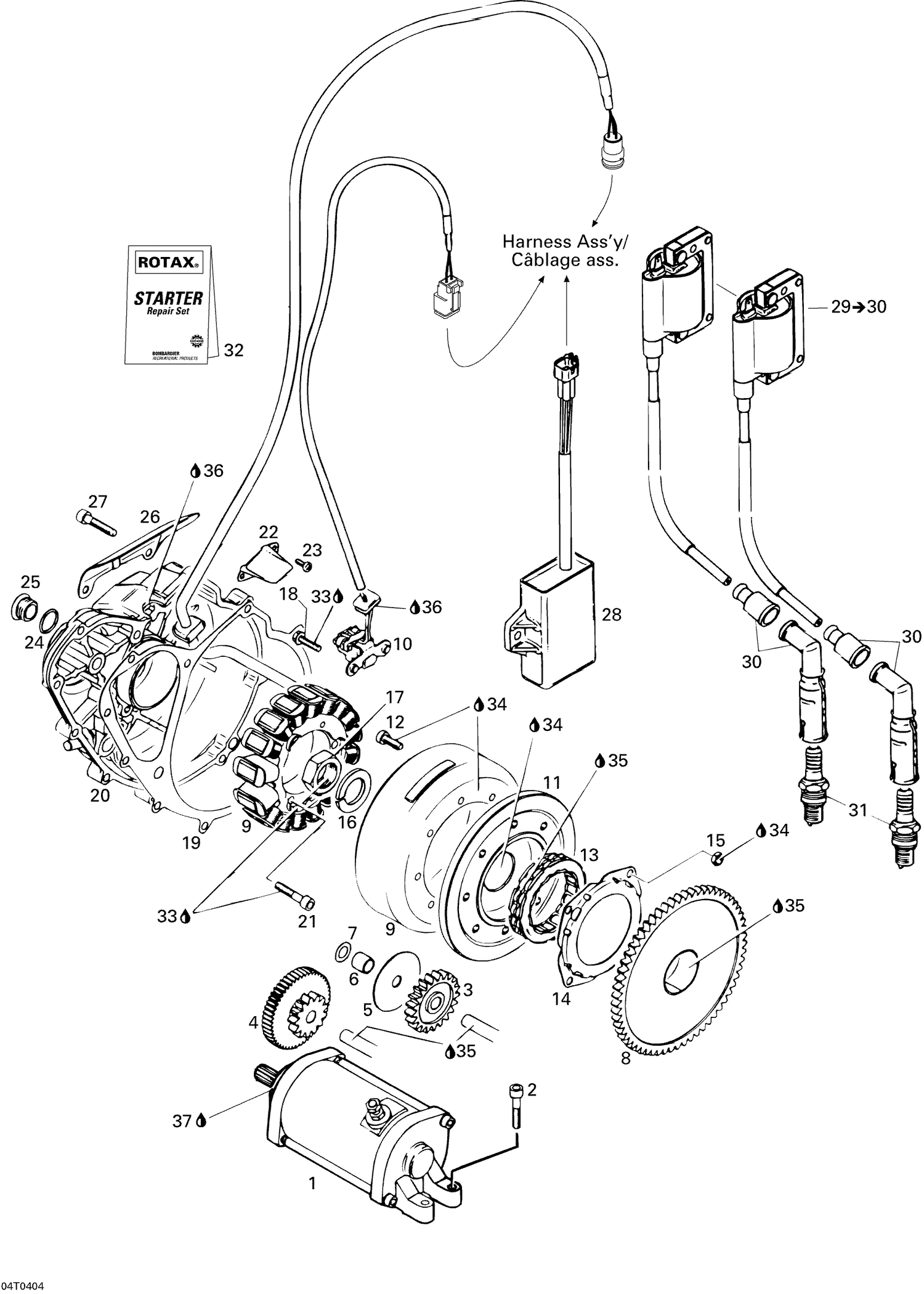

03- Ignition Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELECTRIC STARTER - Call your local BRP dealership
420294351
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
STARTER BRUSH KIT - Call your local BRP dealership
420294354
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-Ring For Starter (Not Illustrated)
293300103
|
$5.99 | ||
|
Unavailable |
|||
|
#2
Socket Head Screw M6 X 30
205063044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership
420234655
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Intermediate Gear, 11/52 Teeth
420234756
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Thrust Washer
420627080
|
|||
|
Available to order. Add to View Price |
|||
|
#6
SPACER - Call your local BRP dealership
420247785
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Thrust Washer
420827590
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STARTING GEAR, 61 TEETH - Call your local BRP dealership
420634319
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MAGNETO ASS'Y 12V/280W - Call your local BRP dealership
420295172
|
|||
|
Available to order. Add to View Price |
|||
|
#10
Pickup Ass'y
420265153
|
$144.99 | ||
|
Unavailable |
|||
|
#11
FLYWHEEL ROTOR HUB - Call your local BRP dealership
420264577
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
420640980
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Sprag Clutch
420958857
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRAG CLUTCH HOUSING - Call your local BRP dealership
420259192
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT BM6 - Call your local BRP dealership
420242031
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Lock Washer, 22 mm
420945759
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hex. Nut, M22 X 1.5
420842234
Superseded by 420842239
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Taptite Screw M5 X 16
420941925
Superseded by 420941928
|
$0.50 | ||
|
Unavailable |
|||
|
#19
GASKET - Call your local BRP dealership
420250920
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
IGNITION COVER - Call your local BRP dealership
420211291
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Socket Head Screw M6 X 35
420241810
|
|||
|
Unavailable |
|||
|
#22
Interior Cable Support Ass'y
420251880
Superseded by 420251889
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
Phillips Screw M4 X 8
420240195
Superseded by 420240196
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-Ring
420250890
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
Drain Plug
420241801
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE EXTERNAL COVER - Call your local BRP dealership
420251990
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Socket Head Screw M6 X 30
205063044
|
$1.69 | ||
|
Unavailable |
|||
|
#28
AMPLIFIER BOX - Call your local BRP dealership
420664170
|
$574.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Ignition Coil
420265357
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPARK PLUG CAP - Call your local BRP dealership
420665010
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Spark Plug NGK DR8EA
707000008
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
STARTER BRUSH KIT - Call your local BRP dealership
420294354
|
$149.99 | ||
|
Unavailable |
|||
|
#33
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600039
Superseded by 293600121
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Sealing Compound Loctite 5366 310Ml
420297906
Superseded by 420297907
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Petamo Grease, GHY133N, 400 g
420899271
|
$69.99 | ||
|
Unavailable |
|||
