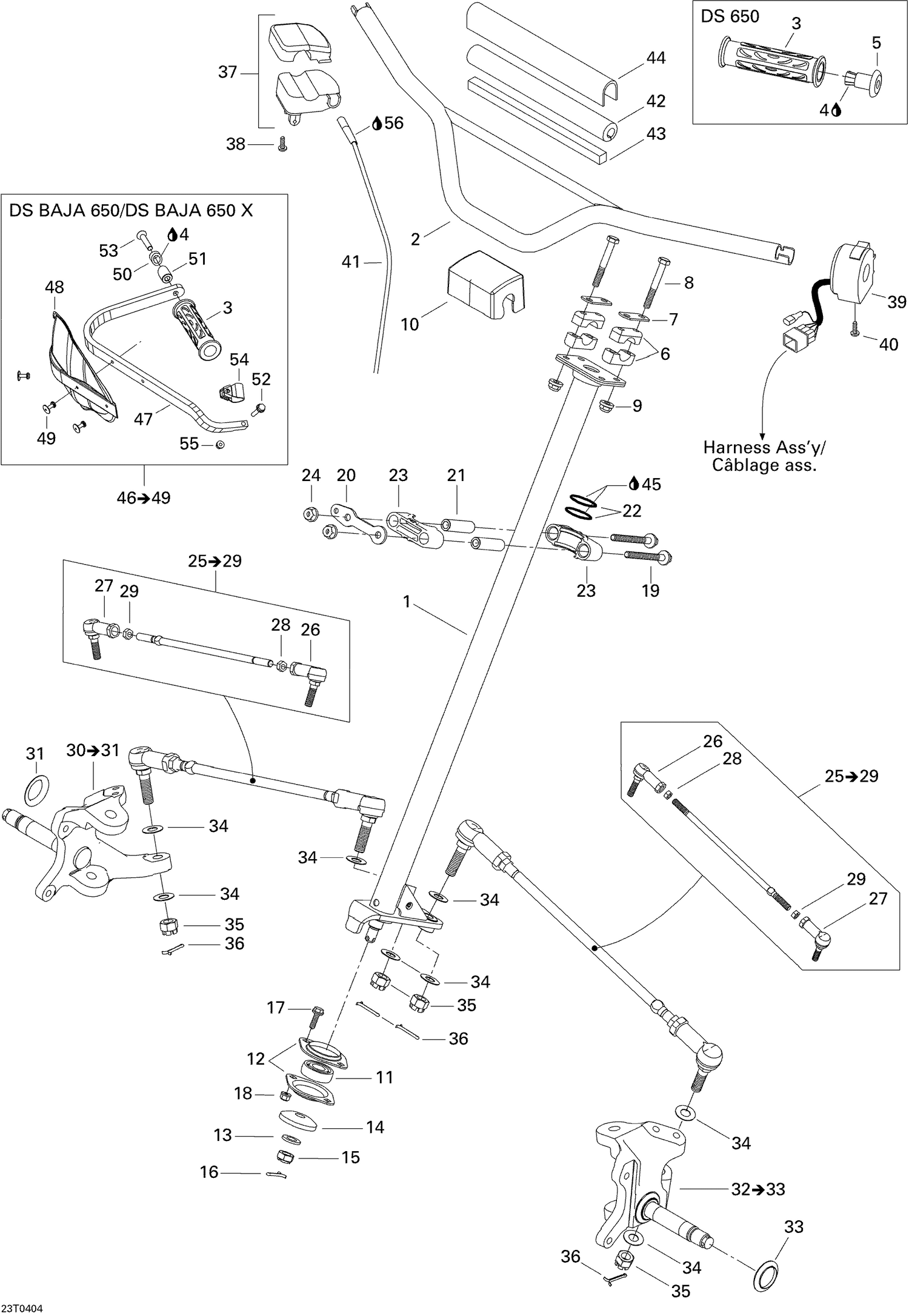

07- Steering System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN TUBE - Call your local BRP dealership
709400222
|
$199.99 | ||
|
Unavailable |
|||
|
#2
Handle Bar, Black
709400218
|
$54.99 | ||
|
Unavailable |
|||
|
#3
Handle Grip
709400157
Superseded by 709400493
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
Loctite 406, 7 Oz
293800100
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
END-PIECE - Call your local BRP dealership
709400189
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Steering Support
506151622
Superseded by 709400919
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Stiffner
506151196
Superseded by 709400509
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086044
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER - Call your local BRP dealership
705000371
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Ball Bearing
709400224
Superseded by 709400439
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLANGE, BEARING - Call your local BRP dealership
709400152
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
Flat Washer 12 mm
234021410
|
$0.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER - Call your local BRP dealership
250200017
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEX. CASTELLATED NUT M12 - Call your local BRP dealership
232220413
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Hex. Flange Screw M6 X 20, Scotch Grip
207562044
Superseded by 207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Hex. Flange Screw M8 X 75
207687544
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER PLATE - Call your local BRP dealership
709400053
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING - Call your local BRP dealership
709400072
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-Ring
293300068
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
Half Bushing
709400052
Superseded by 709400471
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#25
ROD-TIE ASS'Y - Call your local BRP dealership
709400240
Superseded by 709400489
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RH Ball Joint
709400241
Superseded by 709402302
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LH Ball Joint
709400242
Superseded by 709402303
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Not Available As Spare Part - RH Hex Jam Nut M12
|
|||
|
Unavailable |
|||
|
#29
Not Available As Spare Part - LH Hex Jam Nut M12
|
|||
|
Unavailable |
|||
|
#30
RH Knuckle
709400208
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WEAR RING - Call your local BRP dealership
705400056
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
LH Knuckle
709400210
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WEAR RING - Call your local BRP dealership
705400056
|
$14.99 | ||
|
Unavailable |
|||
|
#34
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Nut M12
250100045
Superseded by 250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
Cotter Pin
211400013
|
$0.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
THROTTLE HANDLE - Call your local BRP dealership
709400016
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW M5 X 30 - Call your local BRP dealership
205353060
|
$1.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
MULTI FUNCTION SWITCH - Call your local BRP dealership
710000072
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW M5 X 30 - Call your local BRP dealership
205453046
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#41
THROTTLE CABLE - Call your local BRP dealership
709400048
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Steering Cover Foam
709400087
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOAM INSERT - Call your local BRP dealership
709400094
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Steering Cover
709400158
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Steering Cover
709400198
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#
Steering Cover
709400243
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
Synthetic Grease, 400 G
293550010
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
RH PROTECTOR ASSY - Call your local BRP dealership
709400177
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#
LH Protector Ass’y
709400179
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
RH HANDLE PROTECTOR - Call your local BRP dealership
709400159
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#
LH Handle Protector
709400160
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Protector Plate
705000461
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
Pop Rivet 3/16"
293150103
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#50
Small Bracket
709400161
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
Large Bracket
709400162
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
HANDLE BRACKET - Call your local BRP dealership
709400174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
Socket Head Screw M8 X 40
205384044
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
Hex. Flange Screw M6 X 30, Scotch Grip
207663044
Superseded by 207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#56
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
|
$12.99 | ||
|
Unavailable |
|||
