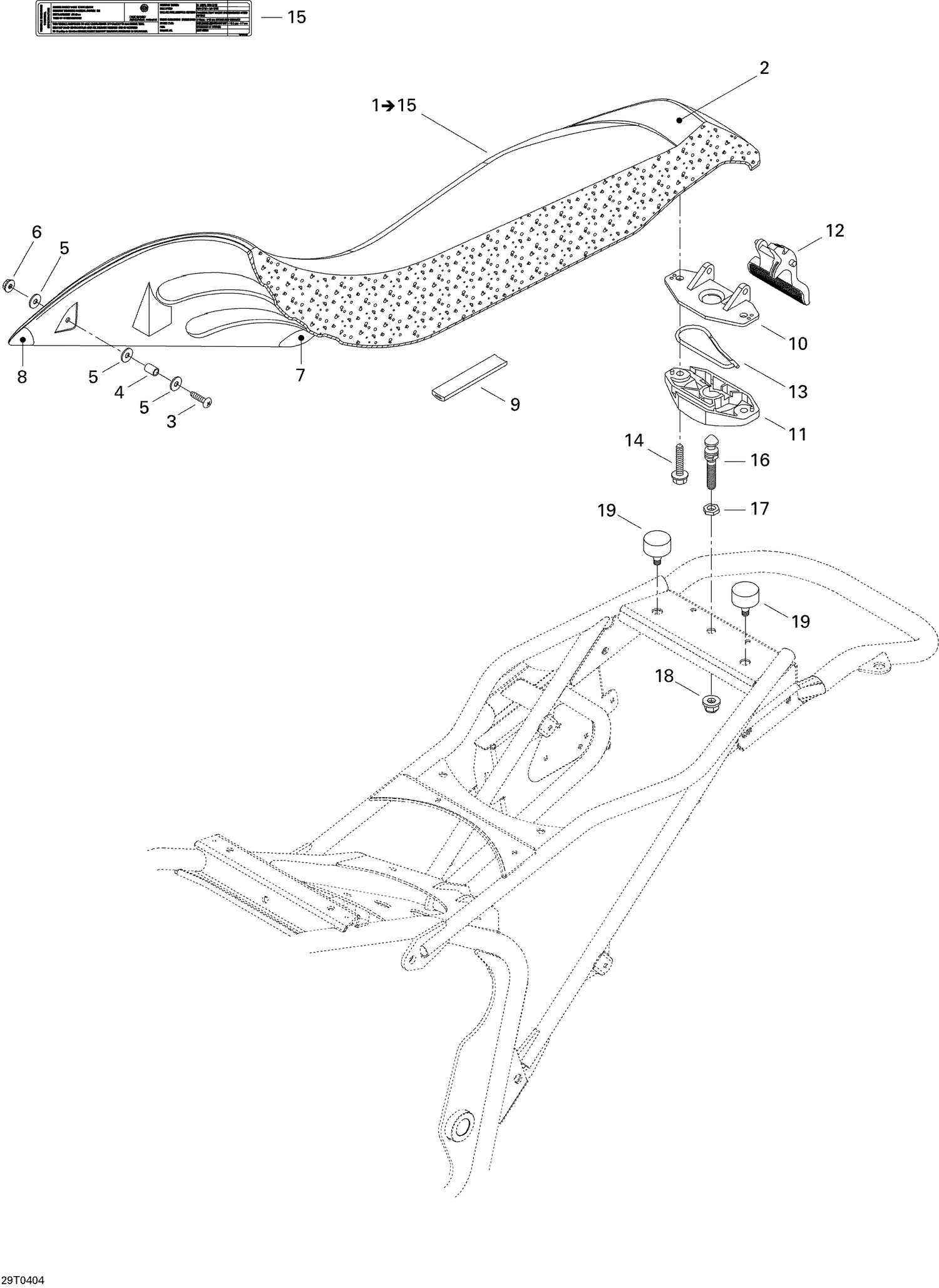

09- Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Seat Ass'y
708000196
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Seat Ass'y
708000197
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Seat Ass'y
708000227
|
$455.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Seat Cover
708000154
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#
Seat Cover
708000316
|
$145.49 | ||
|
Available to order. Add to View Price |
|||
|
#
Seat Cover
708000228
|
$185.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW M6 X 30 - Call your local BRP dealership
250000046
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER - Call your local BRP dealership
708000049
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Seat Corner
708000155
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SEAT CORNER, BLACK - Call your local BRP dealership
708000127
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seat Corner
708000156
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
LH SEAT CORNER - Call your local BRP dealership
708000128
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Seat Corner
708000157
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
RH SEAT CORNER - Call your local BRP dealership
708000129
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal Tray 1000Mm Long
219704368
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Latch Ass'y
269700076
Superseded by 269700109
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Latch Ass'y
269000015
Superseded by 269700109
|
$25.99 | ||
|
Unavailable |
|||
|
#12
Latch Ass'y
269700077
Superseded by 269700109
|
$25.99 | ||
|
Unavailable |
|||
|
#13
Latch Spring
269700017
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Screw M6 X 20, Scotch Grip
207562044
Superseded by 207562034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Emission Label
704900487
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
LATCH STUD - Call your local BRP dealership
291000689
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hex. Jam Nut M10
232100600
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rubber Stopper
708000006
Superseded by 708000758
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
