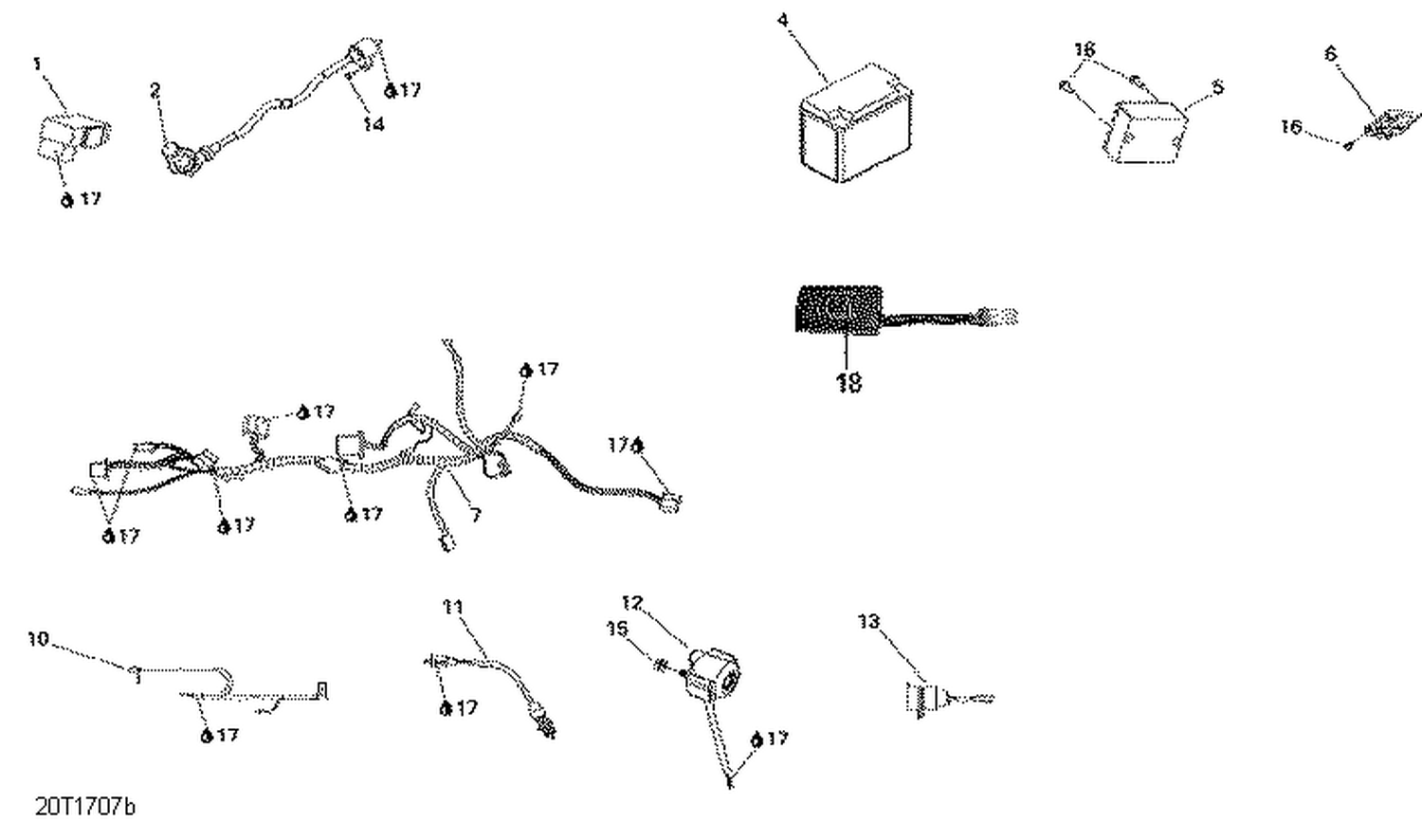

10- Electrical Components North America Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI Unit Ass'y
S30400RCB000
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ignition Coil
S3051ARB1010
Superseded by S3051ARB1000
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Battery 12 Amp
715900031
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Redresseur *Rectifier
S31600RCA000
Superseded by S31600RCA010
|
$243.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Connector Bracket
S31601RCA000
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
Harness Ass'y
S32100RCB900
Superseded by S32100RCB800
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Ground Cable
S32412RB1000
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rear Stop Switch Ass'y
S35350RCA000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Starter Solenoïd
S3585ARCA000
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DC Power Outlet, 12 Volts
S38600RA1000
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Flange Bolt M5 X 22
S90112GK8000
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
Flanged Nut 6 mm
S9405006070
|
$0.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Flanged Bolt M6 X 16
S958010601607
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
Coolant Temperature Control Unit
S37270RCA000
Superseded by S37270RA1000
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
