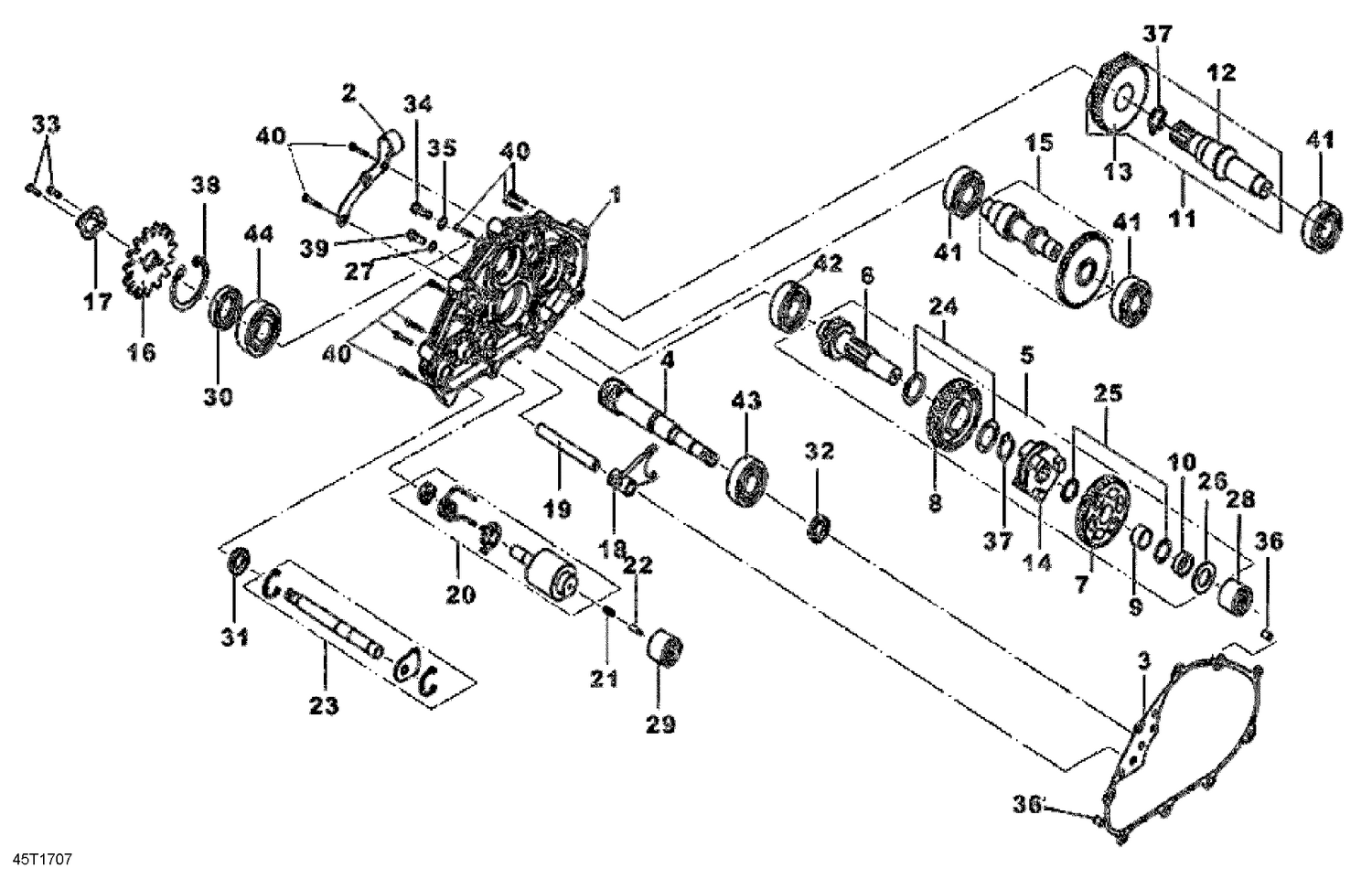

05- Gear Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Transmission Case
S21200RB1010
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Inner Cover Stay
S21201RB1000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Cover Transmission Gasket
S21395RB1000
|
$8.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Drive Shaft
S23411RB1000
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Counter Shaft Ass'y
S23420RB1000
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#7
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#8
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#9
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#10
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#11
Final Shaft Ass'y
S23430RCA010
|
$338.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#14
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#15
Reverse Shaft Ass'y
S23500RB1000
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Drive Sprocket
S23800RB1000
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Drive Sprocket Fixing Plate
S23801RB1000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
Shift Fork
S24211RB1000
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shift Fork Shaft
S24241RB1000
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Shift Drum Ass'y
S24300RB1000
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Gear Indication Spg
S24319R02000
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
Gear Indication
S24323R02000
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#23
Gear Shift Spindle Ass'y
S24610RB1000
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#25
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#26
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#27
Washer
S90474M9Q000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
Needle Bearing
S91003RB1000
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Needle Bearing
S91103X17000
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
Oil Seal
S91209RCA0000
Superseded by S91209RCA000
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
Oil Seal
S91202RB1000
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#32
Oil Seal
S91204HMA000
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hex. Bolt
S92101060100H
|
$0.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Drain Plug Screw
S9280012000
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#35
Washer 12 mm
S9410912000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#36
Dowel Pin
S9430110140
Superseded by S90703M8Q000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#37
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#38
Circlip
S9452052000
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
Flanged Bolt M8 X 12
S957010801200
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#40
Flanged Bolt M8 X 40
S957010804000
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#41
Ball Bearing
S961006204010
|
$14.81 | ||
|
Available to order. Add to View Price |
|||
|
#42
Ball Bearing
S961006304010
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
Ball Bearing
S961006305300
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Ball Bearing
S961506205000
Superseded by 293350115
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
