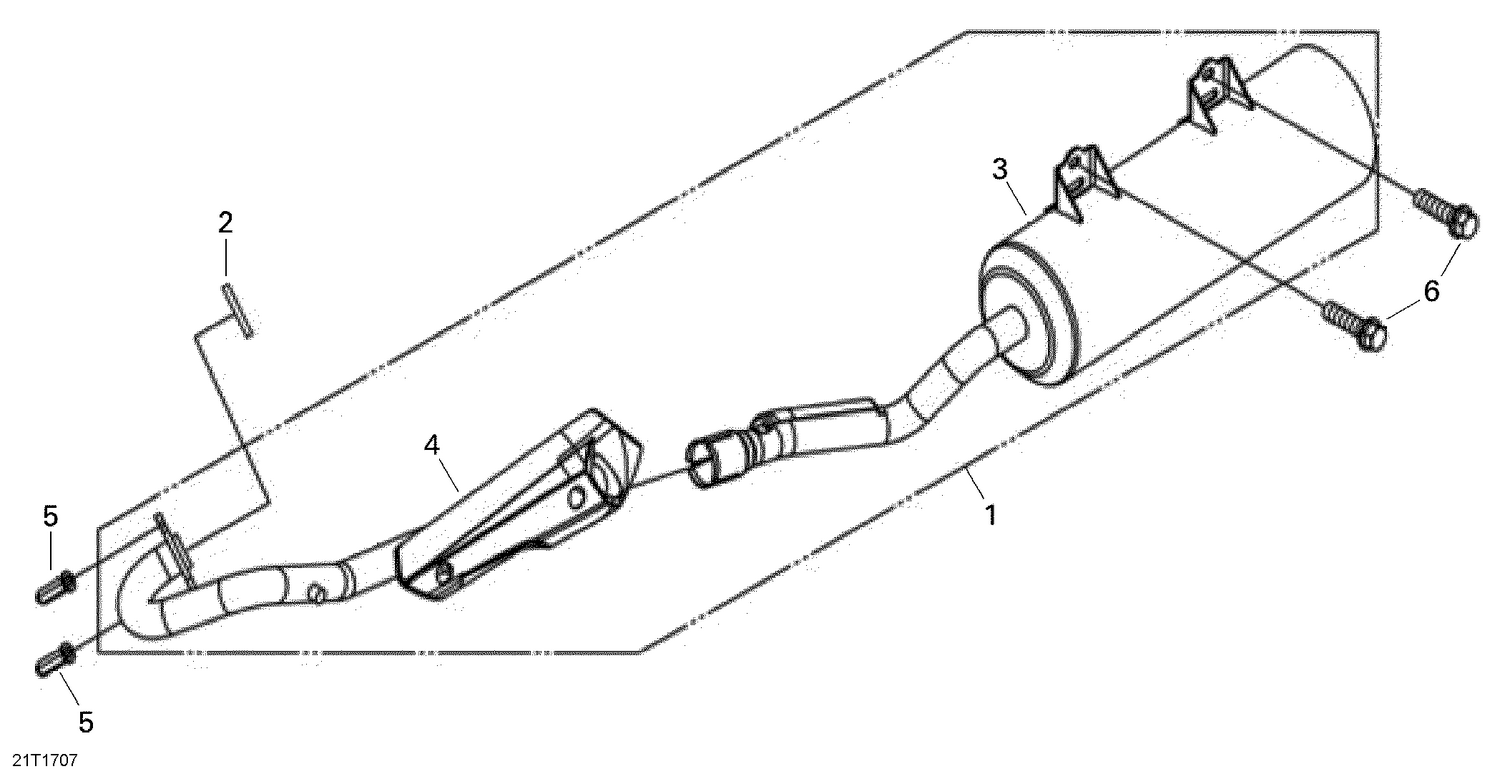

01- Exhaust System International Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Part - Exxhaus Ass'y
|
|||
|
Unavailable |
|||
|
#2
Exhaust Gasket
S18291H9A000
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
Muffler Ass'y
S18310RCB300
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Exhaust Pipe
S1832ARB1000
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cap Nut
S90043RFS000
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
Flanged Bolt M8 X 16
S958010801607
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
Exhaust Protector
S18317RB1000
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Exhaust Gasket
S18319HMA300
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Muffler Clamp 37MM
S18321RB1000
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bolt 6 x 12
S90103V02000
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer
S90107V02000
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
