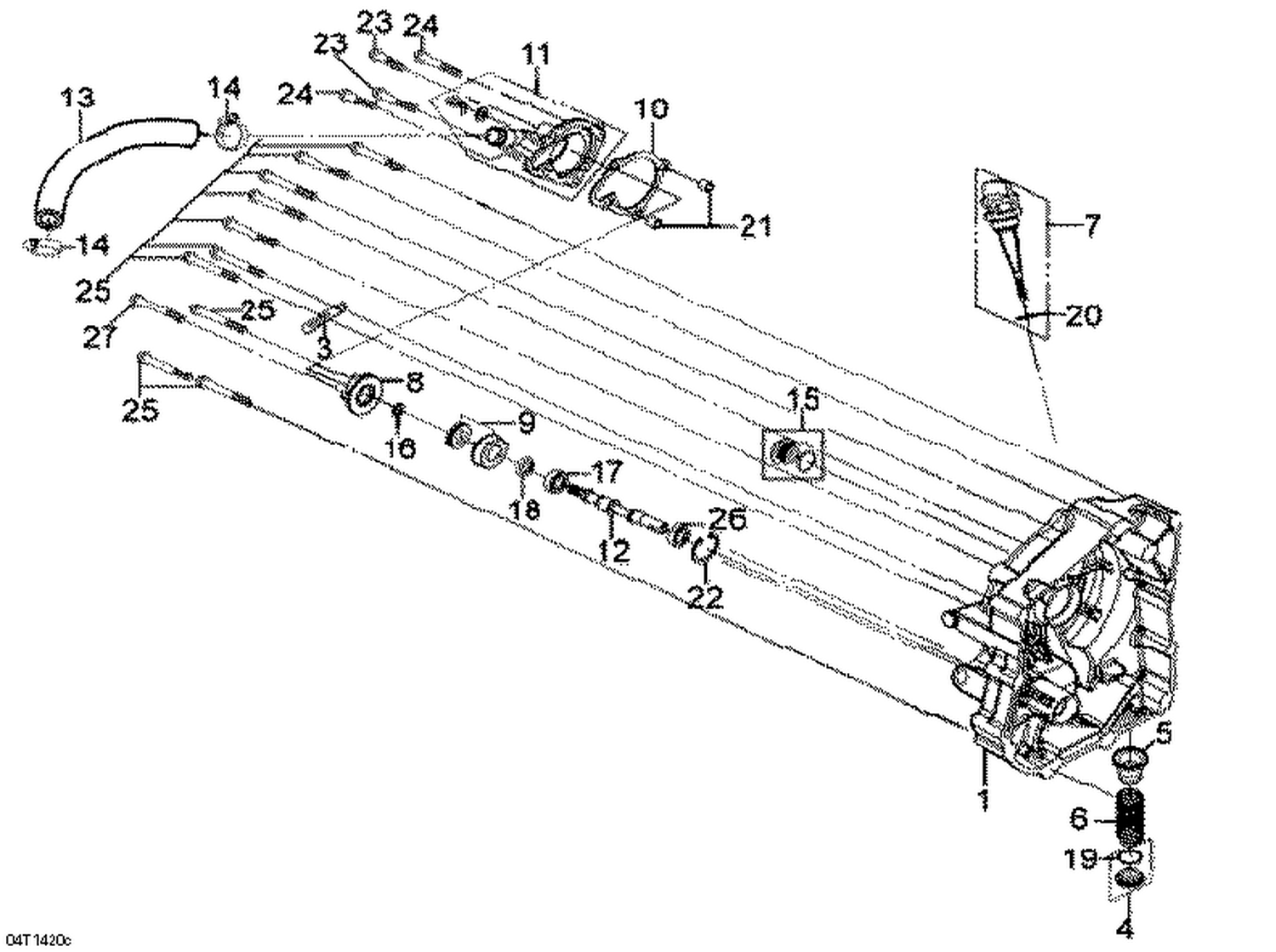

03- Magneto Cover And Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Crankcase
S11330RB1000
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clamp
S12342RFS000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cap Ass'y
S1236AV02000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
Oil Filter Screen
S15421B9D000
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
Oil Filter Screw Spring
S15426M9Q000
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Oil Level Gauge Ass'Y
S1565ARCA000
Superseded by S1565ARCA001
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
Water Pump Impeller
S19215HLA000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mechanical Seal
S19217H9A300
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
Gasket
S19229H9A000
Superseded by S19229H9A002
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Water Pump Cover
S1922AHLA000
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
Water Pump Shaft
S19231HMA000
|
$15.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
Hose
S19502RB1000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clamp
S19505RFS000
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cap And Seal Ass'y
S9008AH9A000
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
Washer
S90423KJ9000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ball Bearing
S91001KJ9005
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
Oil Seal
S91205KF0003
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-ring
S91302M9Q000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING - Call your local BRP dealership
293300037
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Dowel Pin
S9430108140
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
Circlip
S9452026000
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
Flanged Bolt M6 X 22
S960010602200
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
Flanged Bolt M6 X 32
S960010603200
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
Flanged Bolt M6 X 45
S960010604500
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
Ball Bearing
S961006000000
|
$14.74 | ||
|
Available to order. Add to View Price |
|||
|
#27
Hex. Flange Screw M6 X 70
S960010607000
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
