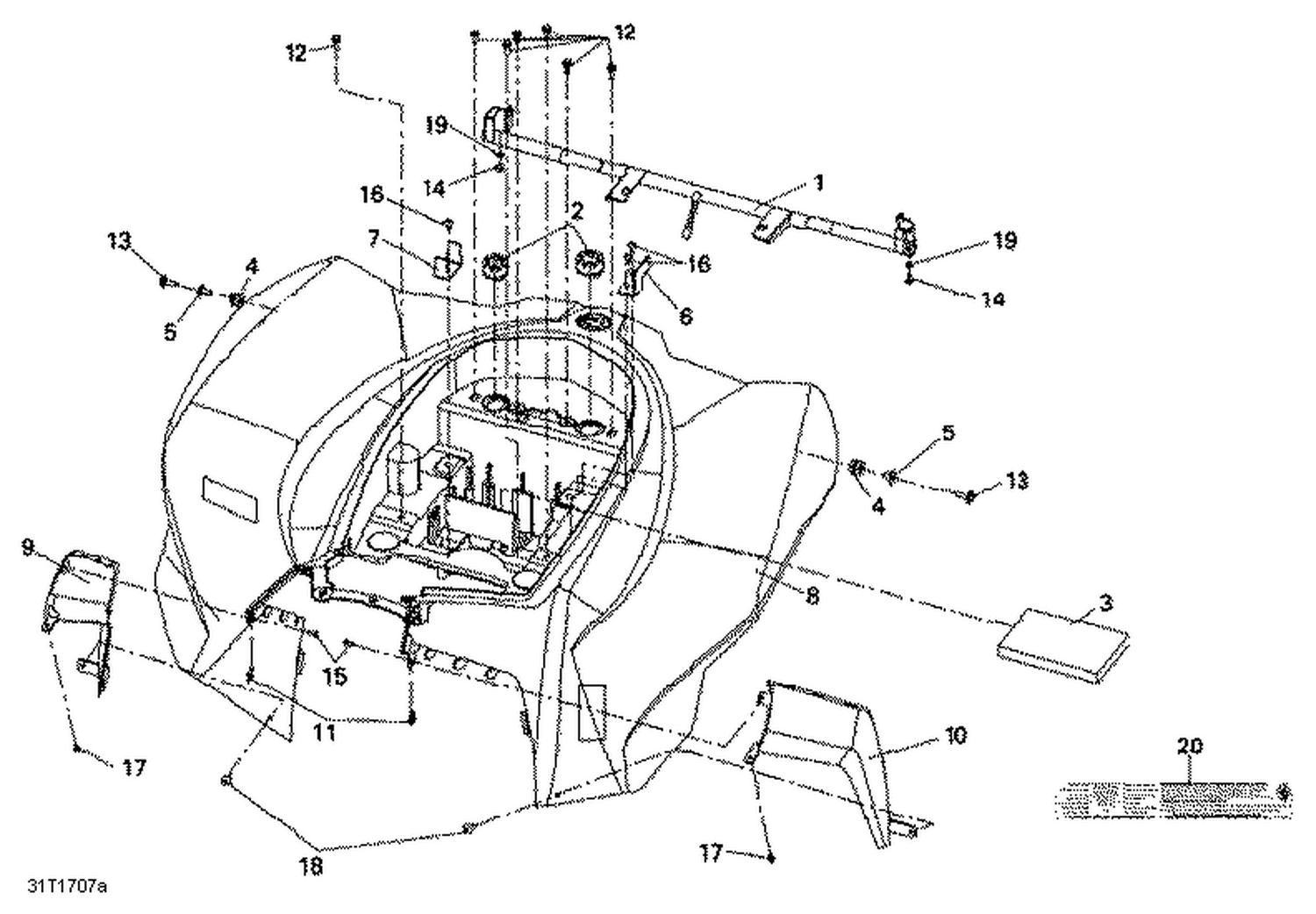

09- Rear Fender North America Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear Fender Support
S50530RCB000
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Rubber Cushion
S77212RCA000
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Sponge Rubber
S80108RCA000
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rubber Washer
S80103X01000
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fender Collar
S80104X01000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
CDI Stay
S80107RCA000
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
Stay
S80109RB1000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rear Fender , Red
S8010GRCBL00RW
|
$204.99 | ||
|
Unavailable |
|||
|
#8a
Reflective Sheet A
S80111RCA000
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#8b
Reflective Sheet B
S80112RCA000
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#8c
Reflective Sheet C
S80113RCA000
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8d
Reflective Sheet D
S80114RCA000
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#8e
Reflective Sheet E
S80115RCA000
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8f
RH Rear Fender Decal
S87133RCAL00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8g
LH Rear Fender Decal
S87132RCAL00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8h
Warning Decal B
S8750BRCA000
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#8k
EPA Label
S87514RCA800
|
$0.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
RH Side Cover
S83525RCA000JF
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
LH Side Cover
S83625RCA000
Superseded by S83625RCA000JF
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clip Nut
S90302V02000
|
$0.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Tapping Screw M5 X 12
S9390335280
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
Washer Bolt
S934040602507
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
Flanged Bolt M5 X 12
S938910501207
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
Tapping Screw M4 X 12
S9390334380
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
Tapping Screw M5 X 12
S9390335280
|
$0.42 | ||
|
Unavailable |
|||
|
#17
Tapping Screw
S9390344380
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
Screw Washer
S90119G03900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
Spring Washer 5 mm
S9411105800
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
