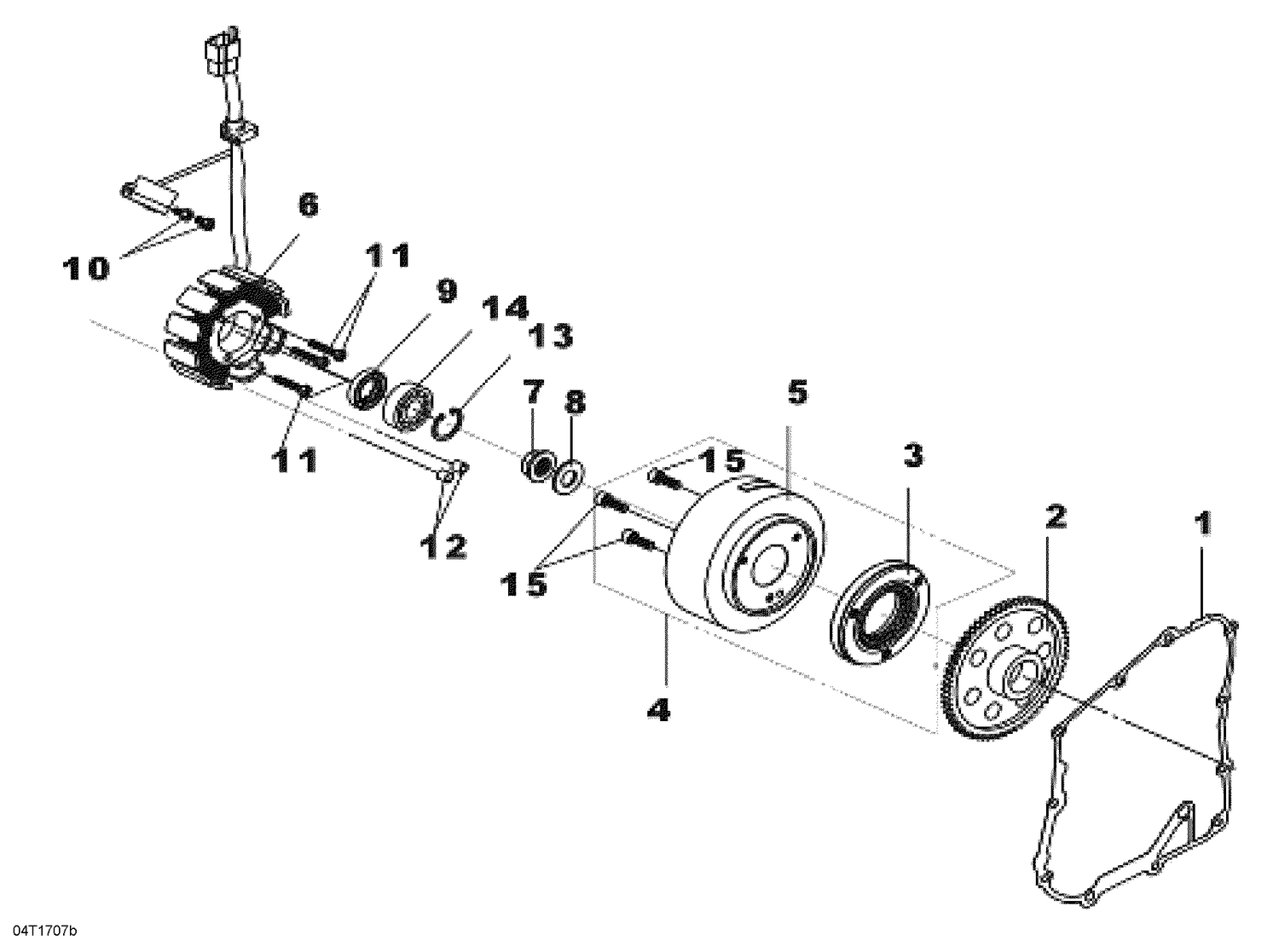

03- Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cover Gasket
S11394RB1000
Superseded by S11394RB1003
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
Starter Wheel
S28110HMA000
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
One Way Clutch
S2812AHMA000
|
$349.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Generator Flywheel
S3110ARB1000
Superseded by S3110ARB1010
|
$455.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
|
#6
Stator Ass'y
S31120RCA000
|
$154.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Flanged Nut 14 mm
S90201RFS000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
Thrust Washer
S90401KJ9000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil Seal
S91202HMA000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hex. Screw M5 X 12
S9210105012
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Flange Screw M6 X 40
207644044
|
|||
|
Unavailable |
|||
|
#12
Dowel Pin
S9430108140
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
Circlip
S9452032000
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ball Bearing
S961406201310
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
Not Available As Spare Parts
NASP/NDPR
|
|||
|
Unavailable |
|||
