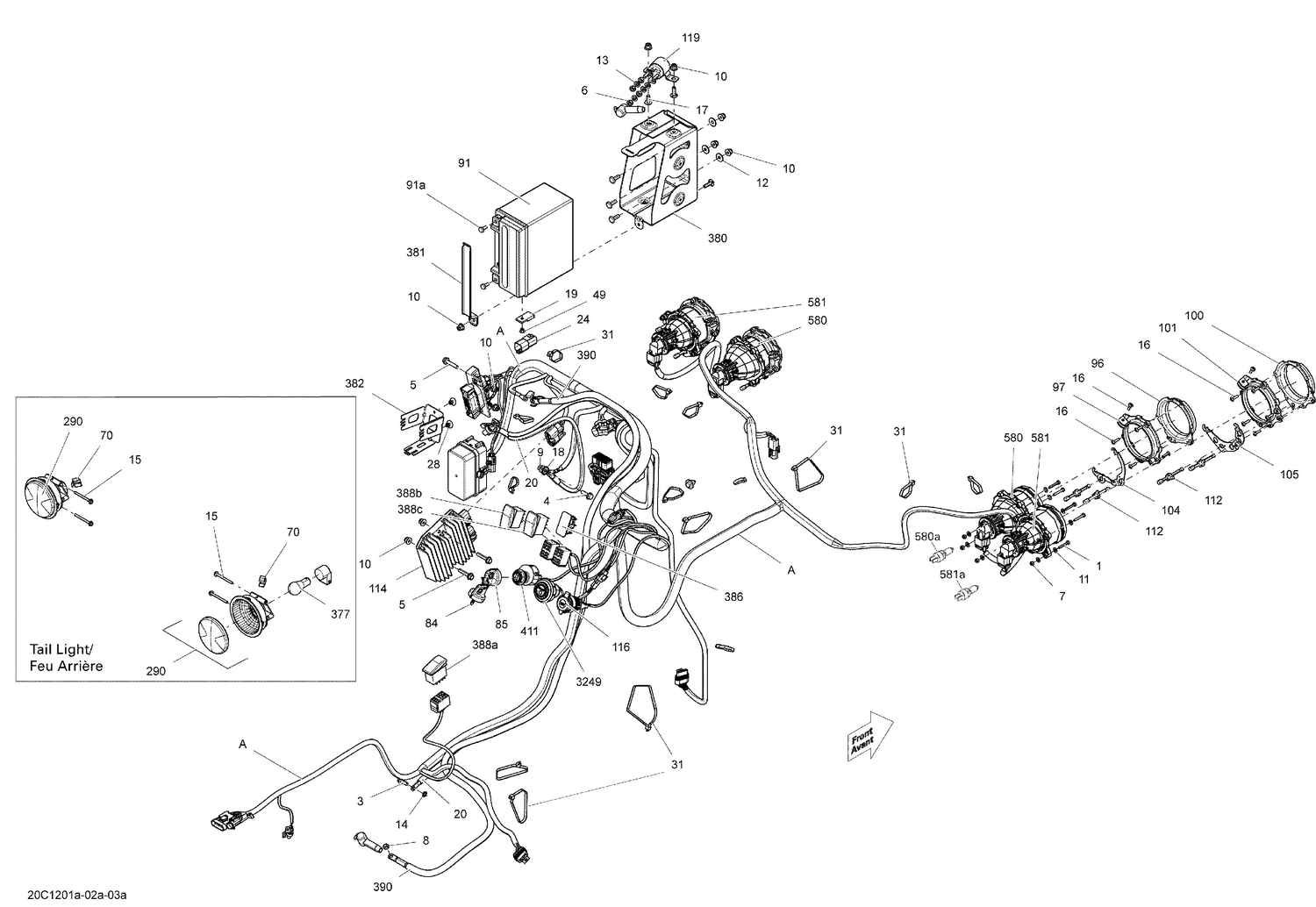

10- Electrical System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Screw M4 X 25
207142544
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 30, Scotch Grip
207663044
Superseded by 207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Hex. Nut M6
232061600
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Elastic Stop Nut M4
232541414
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Nut M6
233061414
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Flat Washer M5
234051410
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
External Serrated Lock Washer 6 mm
234461608
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex. Screw K50 X 45
241154540
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
Phillips Screw K40 X 16
250000084
Superseded by 250000723
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
Lock Washer Serrated M6
250200041
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Clip
270000141
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROUND CABLE - Call your local BRP dealership
710002147
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Diagnostic Connector
278002148
Superseded by 278002704
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Pop Rivet 3/16"
293150103
|
$0.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Tie Wrap 368 mm
293750008
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Tie Wrap 94 mm
293750001
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Tie-Rap 173 mm
293750009
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#49
Pop Rivet 3/16"
390402400
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Clip
414227300
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#84
Grey, Electronic Key
710002183
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Black, Electronic Key
710000817
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
Battery YUASA YTX20L
410301203
|
$149.95 | ||
|
Unavailable |
|||
|
#96
RH Low Front Housing
710001081
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#96
LH Low Front Housing
710001083
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
RH Low Rear Housing
710001082
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
LH Low Rear Housing
710001084
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
RH High Front Housing
710001085
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#100
LH High Front Housing
710001087
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#101
RH High Rear Housing
710001086
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#101
LH High Rear Housing
710001088
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#104
RH Low Light Support
710001094
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#104
LH Low Light Support
710001037
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#105
RH High Light Support
710001115
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#105
LH High Light Support
710001036
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#112
Setting Screw
710001147
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#114
Voltage Regulator
710001191
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#116
DC Outlet
710001248
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#119
Starter Relay
710001364
Superseded by 710007777
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#290
Tail Light Ass'y
710001645
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#377
Bulb
520000758
|
$9.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#380
Battery Support
710001911
Superseded by 710003129
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#381
Battery Holder
710001916
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#382
Fuse Holder
710001918
Superseded by 710003335
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#386
Plug Carling
710001999
Superseded by 710007173
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#390
Positive Cable
710002146
Superseded by 710004383
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#411
Ignition Switch
710002327
Superseded by 710008400
|
$78.49 | ||
|
Available to order. Add to View Price |
|||
|
#580
Low Beam Ass'y
710002524
|
$104.99 | ||
|
Unavailable |
|||
|
#581
High Beam Ass'y
710002525
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3249
Engine Start Button
710002594
|
$60.49 | ||
|
Available to order. Add to View Price |
|||
|
#388a
Switch, Over ride
710002053
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#388b
4X4 Switch
710001737
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#388c
PPS Sport Switch
710002199
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#580a
Halogen Bulb
415129249
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#581a
Halogen Bulb
415129249
|
$42.99 | ||
|
Unavailable |
|||
|
#91a
Battery Bolt Kit
295500849
Superseded by 250000282
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#A
Wiring Harness Ass'y
710002625
|
$1,079.99 | ||
|
Available to order. Add to View Price |
|||
