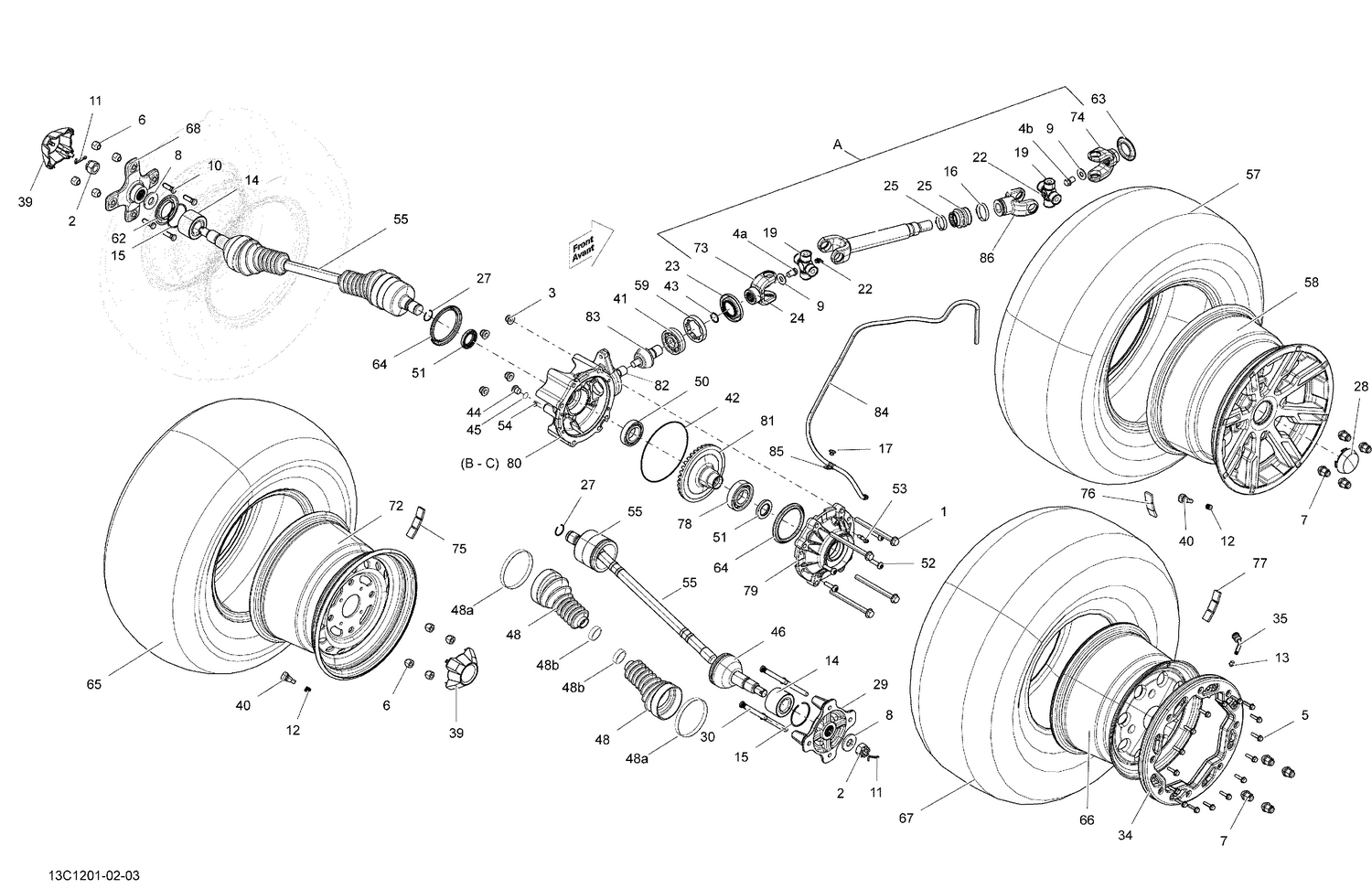

08- Drive System, Rear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M10 X 125
230602546
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Castellated Nut M18
250100047
Superseded by 232291413
|
$8.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4a
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#4b
Hex Flange Screw M12 X 16
250000359
Superseded by 250001039
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 25
250000435
Superseded by 250000787
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Steel Wheel Nut
250100042
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
Chrome Wheel Nut M10 X 1.25
250100082
Superseded by 250100185
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Black, Wheel Nut M10 X 1.25
250100100
Superseded by 250100184
|
$4.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Black, Wheel Nut M10 X 1.25
250100100
Superseded by 250100184
|
$4.51 | ||
|
Unavailable |
|||
|
#8
Conical Spring Washer M18
250200049
Superseded by 250200171
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
Flat Washer M12
250200102
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Wheel Stud M10 X 1.25
250300045
Superseded by 250300055
|
$3.59 | ||
|
Unavailable |
|||
|
#11
Cotter Pin
250400036
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Valve Cap
293000110
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE CAP - Call your local BRP dealership
293000111
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ball Bearing
293350040
Superseded by 293350150
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Circlip
293370019
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
Oetiker Gear Clamp 44.0MM
293650138
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
Universal Joint
703000022
Superseded by 715900326
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GREASE FITTING - Call your local BRP dealership
705500841
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Oil Seal
705400027
Superseded by 705401481
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Wear Ring
705400036
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Rubber Boot Kit
703500255
|
|||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP - Call your local BRP dealership
705500845
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
WHEEL CAP - Call your local BRP dealership
705400504
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WHEEL CAP - Call your local BRP dealership
705400520
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Wheel Hub
705400713
Superseded by 705401314
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Wheel Stud
705400791
Superseded by 705401964
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#34
REINFORCEMENT DISC PLATE - Call your local BRP dealership
705400841
Superseded by 705401248
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership
705400872
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Wheel Cap
705400921
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#40
Rim Valve With Cap
705400193
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
Ball Bearing
705500260
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Seal
705500265
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43
Pinion Gear Shim 1.67 mm
703500049
Superseded by 705502061
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Pinion Gear Shim
705501162
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-Ring
705500267
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#44
Fill Level Plug
705500504
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Copper Washer
705500506
|
$0.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
CV JOINT - Call your local BRP dealership
705500980
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Boot Kit
705500870
|
$42.49 | ||
|
Available to order. Add to View Price |
|||
|
#48a
OETIKER CLAMP - Call your local BRP dealership
293650204
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#48b
Oetiker Clamp (27,5mm)
293650203
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#50
Ball Bearing
705500749
Superseded by 705502737
|
$48.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
Oil Seal
705501196
Superseded by 705501996
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Screw
705500892
Superseded by 705401601
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
VENT VALVE - Call your local BRP dealership
705500893
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Drain Plug
705500894
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Half Shaft
705501456
Superseded by 705502359
|
$243.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
27X11R14 Rear Tire
705500964
Superseded by 705502665
|
$265.00 | ||
|
Unavailable |
|||
|
#57
Rear Tire
705501295
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
RIM 14 INCH X 8,5 - Call your local BRP dealership
705500965
Superseded by 705501812
|
$194.99 | ||
|
Unavailable |
|||
|
#58
RIM 14 INCH X 8,5 - Call your local BRP dealership
705500965
Superseded by 705501812
|
$194.99 | ||
|
Unavailable |
|||
|
#58
Rear Rim
705501261
Superseded by 705501814
|
$239.49 | ||
|
Unavailable |
|||
|
#59
Nut
705500987
Superseded by 705502059
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
Wear Sleeve
705501121
|
$7.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
Protector
705501123
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#64
Wear Ring
705501124
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#65
Rear Tire
705501129
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
Rear Tire
705501434
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
Rear Rim
705501137
|
$191.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
Rear Tire 27X11X12
705501186
Superseded by 705502938
|
$236.11 | ||
|
Unavailable |
|||
|
#67
Rear Tire
705501494
Superseded by 705501818
|
$254.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership
705501199
Superseded by 705501713
|
$137.47 | ||
|
Available to order. Add to View Price |
|||
|
#72
RIM_12 INCH X 8 - Call your local BRP dealership
705501249
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
Fixe Yoke
705501372
Superseded by 715900101
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
Fixed Joint
705501373
Superseded by 715900129
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
1/2 Oz Weight
219704465
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#76
1/2 Oz Weight
219704465
|
$3.89 | ||
|
Unavailable |
|||
|
#77
1/2 Oz Weight
219704465
|
$3.89 | ||
|
Unavailable |
|||
|
#78
Ball Bearing
705501389
Superseded by 705502738
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
REAR DIFFERENTIAL COVER - Call your local BRP dealership
705501507
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
PINION REAR COVER - Call your local BRP dealership
705501395
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
Gear, 36 Tooth
705501397
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
Needle Bearing
705501408
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
PINION 10 TOOTH - Call your local BRP dealership
705501571
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
Polyurethane Hose 10000Mm Long
219704410
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#85
Clamp
705600459
Superseded by 293650256
|
$5.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#86
SLIDING JOINT - Call your local BRP dealership
705501072
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#A
Rear Propeller Shaft Kit
703500762
Superseded by 703500805
|
$391.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Rear Differential Ass'y
705501506
Superseded by 705501896
|
|||
|
Available to order. Add to View Price |
|||
|
#C
Differential Shim 0.02 mm
703500548
Superseded by 705502060
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
