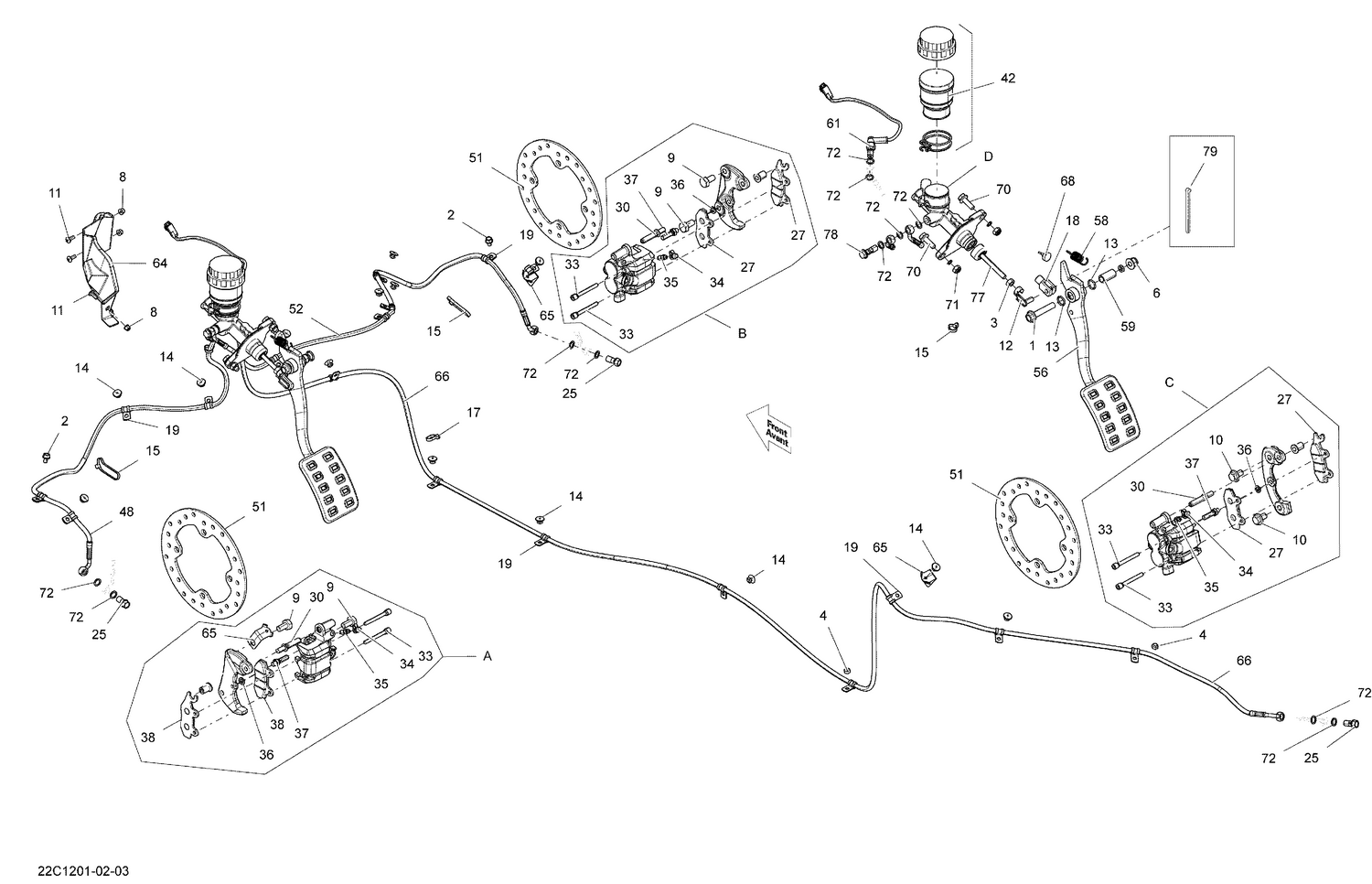

06- Brakes Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M10 X 55
207605544
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Hex. Flange Screw M6 X 10
210261040
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Nut M8
232081414
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
Elastic Stop Nut M6
232561414
|
$0.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Elastic Nut M10
233201414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Elastic Flange Nut M5
233251494
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Hex. Screw M10 X 20, Scotch Grip
250000057
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
Flange Screw M10 X 16, Scotch Grip
250000060
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Screw M5 X 14
250000145
Superseded by 250000742
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Pin
250400056
Superseded by 250400062
|
$4.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-Ring
293300144
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
Unavailable |
|||
|
#18
Yoke
705600100
|
|||
|
Available to order. Add to View Price |
|||
|
#19
Clamp
705600459
Superseded by 293650256
|
$5.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Banjo Bolt (M10 x 1.25 thread)
705600609
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
RH Brake Pad Kit
715500336
|
$51.99 | ||
|
Unavailable |
|||
|
#30
Spring Boot Bolt Kit
715500333
Superseded by 715500383
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#33
Sliding Pin Kit
715500337
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Bleeding Screw
705600080
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#35
Bleeding Screw
705600080
|
$16.87 | ||
|
Unavailable |
|||
|
#36
Not Available As Spare Part - Washer
|
|||
|
Unavailable |
|||
|
#37
Spring Boot Bolt Kit
715500333
Superseded by 715500383
|
$17.59 | ||
|
Unavailable |
|||
|
#38
LH Brake Pad Kit
715500335
|
$51.99 | ||
|
Unavailable |
|||
|
#42
Diaphragm Cap Kit
715500332
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
LH Front Hose
705600682
Superseded by 705600943
|
$79.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
Brake Disc
705600684
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
RH Front Hose
705600719
Superseded by 705601265
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Brake Pedal
705600724
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
Brake Pedal Spring
705600792
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#59
Inner Spacer
705600815
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#61
Brake Switch
705600914
Superseded by 705601250
|
$59.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
LH Front Deflector
705600917
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#65
Bracket
705601036
Superseded by 705601337
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#66
Rear Flexible Hose
705601037
Superseded by 705600945
|
$148.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
Rubber Stopper
708000759
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
Copper Washer
705600310
Superseded by 705601628
|
$4.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#77
Master Cylinder Rod
705600833
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
Banjo Bolt
705600958
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#79
Cotter Pin
371800700
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#A
LH Caliper
705600679
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
RH Caliper
705600678
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#C
Rear Caliper
705600872
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#D
Master Cylinder Ass'y
705600681
Superseded by 705601505
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
