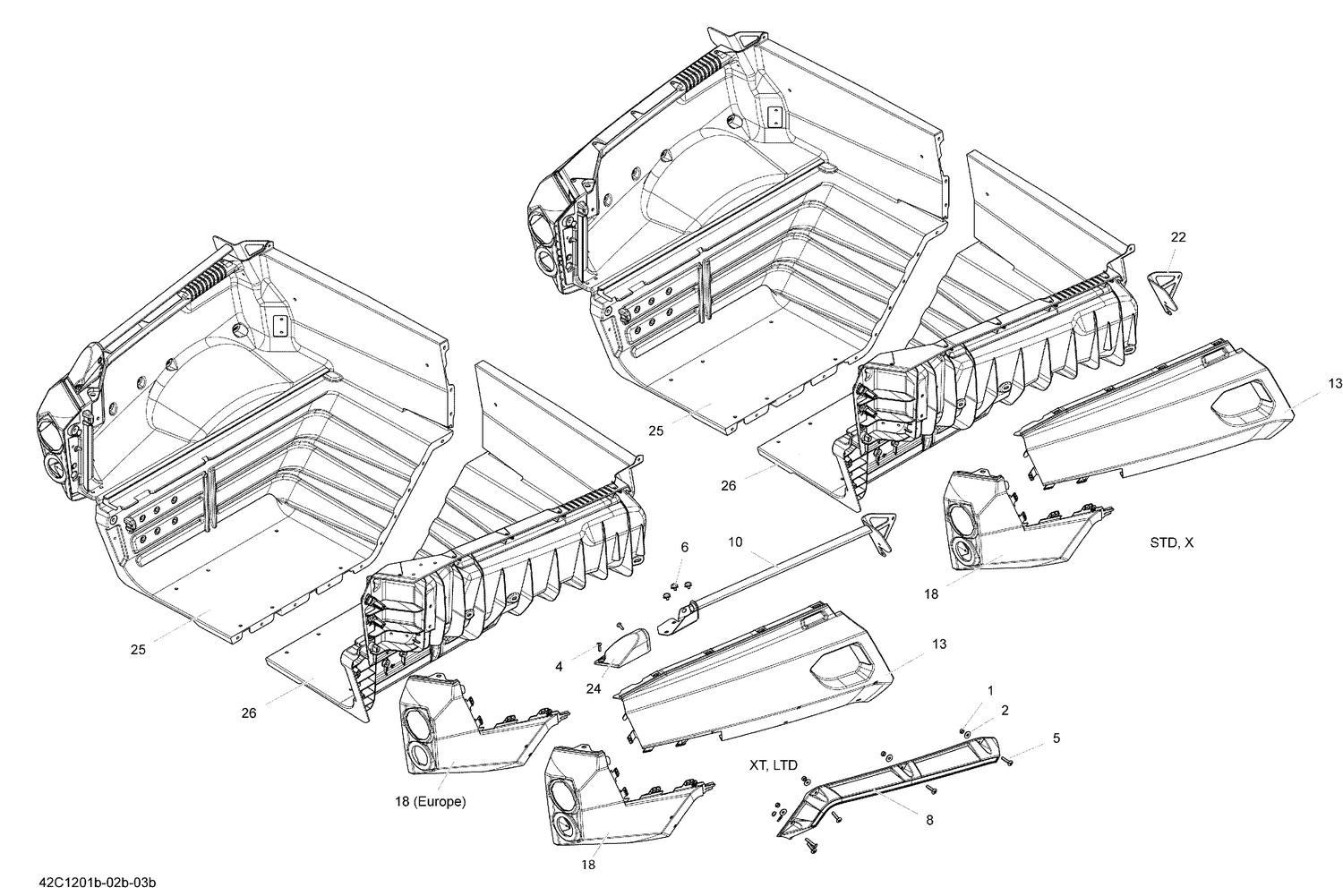

09- Rear Cargo Box Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Torx Screw M5 X 20
250000130
Superseded by 250000724
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Torx Truss Screw M6 X 30
250000398
Superseded by 250000843
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pop Rivet 3/16
293150190
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Unavailable |
|||
|
#10
LH Welded Rail
708300231
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RH Welded Rail
708300232
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LH REAR FENDER, RED - Call your local BRP dealership
708300226
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER REAR L B-005 - Call your local BRP dealership
708300437
Superseded by 708300834
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rear Fender
708300439
Superseded by 708300828
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER REAR L B-321 - Call your local BRP dealership
708300548
Superseded by 708300838
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Yellow LH Rear Fender
708300101
Superseded by 708301242
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER REAR R B-176 - Call your local BRP dealership
708300227
Superseded by 708300827
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
YELLOW RH REAR FENDER - Call your local BRP dealership
708300102
Superseded by 708301243
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER REAR R B-005 - Call your local BRP dealership
708300438
Superseded by 708300835
|
$629.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AILE ARRIERE *REAR FENDER - Call your local BRP dealership
708300440
Superseded by 708300829
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FENDER REAR R B-321 - Call your local BRP dealership
708300550
Superseded by 708300839
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LH Rear Facia
708300103
Superseded by 708301383
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LH Rear Facia
708300559
Superseded by 708301383
|
$23.99 | ||
|
Unavailable |
|||
|
#18
LH Rear Facia
708300103
Superseded by 708301383
|
$23.99 | ||
|
Unavailable |
|||
|
#18
LH Rear Facia
708300103
Superseded by 708301383
|
$23.99 | ||
|
Unavailable |
|||
|
#18
RH Rear Facia
708300104
Superseded by 708301384
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RH Rear Facia
708300104
Superseded by 708301384
|
$23.99 | ||
|
Unavailable |
|||
|
#18
RH Rear Facia
708300104
Superseded by 708301384
|
$23.99 | ||
|
Unavailable |
|||
|
#18
RH Rear Facia
708300560
Superseded by 708301384
|
$23.99 | ||
|
Unavailable |
|||
|
#22
LH Painted Rail Cap
708300333
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RH Painted Rail Cap
708300334
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LH RAIL COVER - Call your local BRP dealership
708300233
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
RH RAIL COVER - Call your local BRP dealership
708300234
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#25
Left Box Kit
715001259
Superseded by 715002361
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Left Box Kit
715001259
Superseded by 715002361
|
$214.99 | ||
|
Unavailable |
|||
|
#26
RH Box Ass'y
715001257
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RH Box Ass'y
715001257
|
$129.99 | ||
|
Unavailable |
|||
