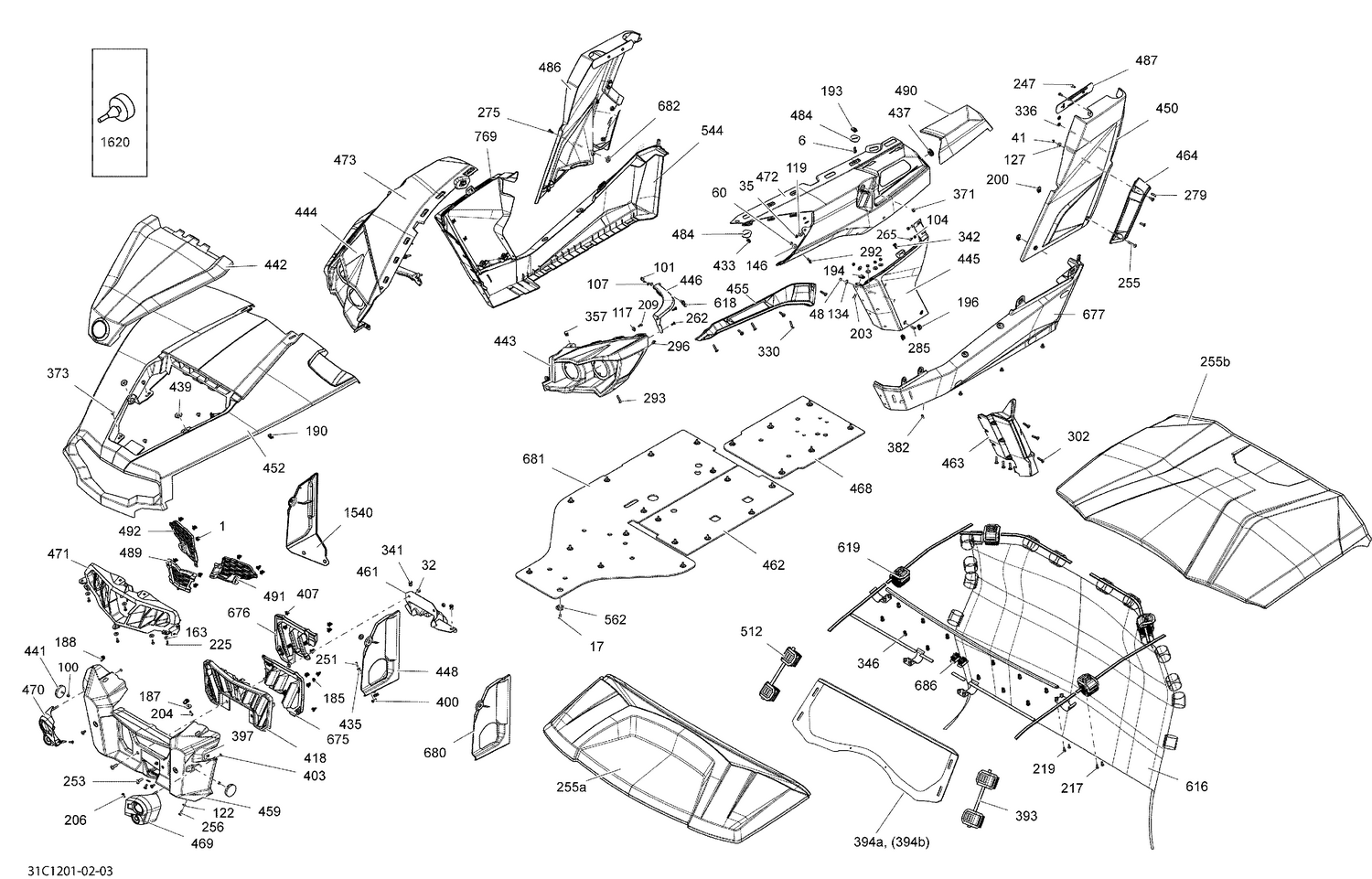

09- Body And Accessories Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#293
Torx Truss Screw M6 X 30
250000398
Superseded by 250000843
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#296
Torx Truss Screw M6 X 30
250000398
Superseded by 250000843
|
$2.19 | ||
|
Unavailable |
|||
|
#302
Torx Truss Screw M6 X 20
250000350
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#302
Stainless, Torx Screw M6 X 30
250000371
Superseded by 250000842
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#302
Stainless, Torx Screw M6 X 30
250000371
Superseded by 250000842
|
$2.19 | ||
|
Unavailable |
|||
|
#330
Stainless, Torx Screw M6 X 30
250000371
Superseded by 250000842
|
$2.19 | ||
|
Unavailable |
|||
|
#336
PUSH NUT - Call your local BRP dealership
250100129
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#341
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#342
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#346
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#357
Tuflok Plastic Rivet
293150089
Superseded by 293150230
|
$1.49 | ||
|
Unavailable |
|||
|
#371
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#373
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#382
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Unavailable |
|||
|
#393
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#397
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#400
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#403
Push Nut
389804300
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#407
Edge Clip
517302785
|
$0.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#418
Lower Front Facia Protector
705004755
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#433
Edge Clip
517302785
|
$0.90 | ||
|
Unavailable |
|||
|
#435
Knob
517303439
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#437
Grommet
517303756
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#439
Oval Washer
705005156
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#441
Amber Reflector
705002409
Superseded by 705011222
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#442
YELLOW REMOVABLE HOOD - Call your local BRP dealership
705002881
Superseded by 705007072
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#442
Viper Red Removable Hood
705004384
Superseded by 705008185
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#442
HOOD B-005 - Call your local BRP dealership
705004385
Superseded by 705007075
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#442
Black Removable Hood
705004386
Superseded by 705007060
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#442
MAGNESIUM REMOVABLE HOOD - Call your local BRP dealership
705005291
Superseded by 705007076
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#443
LH Front Facia
705002885
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#444
RH Front Facia
705002886
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership
705005533
Superseded by 705007846
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
PANEL_BODY FL B-176 - Call your local BRP dealership
705005535
Superseded by 705004996
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership
705005533
Superseded by 705007846
|
$37.99 | ||
|
Unavailable |
|||
|
#445
LH FRONT LATERAL PANNEL, BLACK - Call your local BRP dealership
705005539
Superseded by 705005561
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
PANEL_BODY FL B-005 - Call your local BRP dealership
705005541
Superseded by 705006378
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#445
LEFT PANEL - Call your local BRP dealership
705005553
Superseded by 705009306
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#446
Facia Front Support
705002891
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#448
LH Deflector
705002895
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership
705002904
Superseded by 705007864
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
PANEL_BODY REAR L B-176 - Call your local BRP dealership
705003850
Superseded by 705007866
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
YELLOW LH REAR LATERAL PANEL - Call your local BRP dealership
705002904
Superseded by 705007864
|
$93.99 | ||
|
Unavailable |
|||
|
#450
PANEL_BODY REAR L B-005 - Call your local BRP dealership
705004396
Superseded by 705006122
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
SIDE PANEL BLACK - Call your local BRP dealership
705004398
Superseded by 705006118
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#450
MAGNESIUM LH REAR LATERAL PANNEL - Call your local BRP dealership
705005297
Superseded by 705006126
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#452
HOOD B-190 - Call your local BRP dealership
705002915
Superseded by 705008187
|
$719.99 | ||
|
Available to order. Add to View Price |
|||
|
#452
HOOD B-176 - Call your local BRP dealership
705004379
Superseded by 705008188
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#452
HOOD B-005 - Call your local BRP dealership
705004380
|
$779.99 | ||
|
Available to order. Add to View Price |
|||
|
#452
HOOD - Call your local BRP dealership
705005289
Superseded by 705009304
|
$1,329.99 | ||
|
Available to order. Add to View Price |
|||
|
#455
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#455
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Unavailable |
|||
|
#459
Black Front Facia
705003306
Superseded by 705008689
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#459
Black Front Facia
705003306
Superseded by 705008689
|
$104.99 | ||
|
Unavailable |
|||
|
#459
Black Front Facia
705003306
Superseded by 705008689
|
$104.99 | ||
|
Unavailable |
|||
|
#459
Black Front Facia
705003306
Superseded by 705008689
|
$104.99 | ||
|
Unavailable |
|||
|
#459
Black Front Facia
705003306
Superseded by 705008689
|
$104.99 | ||
|
Unavailable |
|||
|
#459
Black Front Facia
705005386
Superseded by 705008689
|
$104.99 | ||
|
Unavailable |
|||
|
#461
Bottom Deflector
705003399
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#462
LH PROTECTOR PLATE - Call your local BRP dealership
705003513
Superseded by 705007883
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#463
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Unavailable |
|||
|
#463
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Unavailable |
|||
|
#464
FENDER EXTENSION KIT - Call your local BRP dealership
715001013
Superseded by 715002451
|
$259.99 | ||
|
Unavailable |
|||
|
#468
Rear Protector Plate
705003624
Superseded by 705007227
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#469
LH FLASHER CAP - Call your local BRP dealership
705003627
Superseded by 705008676
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#470
RH FLASHER CAP - Call your local BRP dealership
705003628
Superseded by 705008677
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#471
FASCIA UP B-160 - Call your local BRP dealership
705003629
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#472
YELLOW LH FRONT FENDER - Call your local BRP dealership
705003030
Superseded by 705008194
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#472
RED LH FRONT FENDER - Call your local BRP dealership
705003826
Superseded by 705006760
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#472
YELLOW LH FRONT FENDER - Call your local BRP dealership
705003030
Superseded by 705008194
|
$179.99 | ||
|
Unavailable |
|||
|
#472
FENDER FL B-005 - Call your local BRP dealership
705004376
Superseded by 705006768
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#472
FRONT FENDER LH BLACK - Call your local BRP dealership
705004378
Superseded by 705006762
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#472
FRONT FENDER - Call your local BRP dealership
705005283
Superseded by 705009299
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#473
YELLOW RH FRONT FENDER - Call your local BRP dealership
705003029
Superseded by 705008195
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#473
RED RH FRONT FENDER - Call your local BRP dealership
705003827
Superseded by 705006761
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#473
YELLOW RH FRONT FENDER - Call your local BRP dealership
705003029
Superseded by 705008195
|
$169.99 | ||
|
Unavailable |
|||
|
#473
FENDER FR B-005 - Call your local BRP dealership
705004375
Superseded by 705006769
|
$649.99 | ||
|
Available to order. Add to View Price |
|||
|
#473
FENDER FR B-160 - Call your local BRP dealership
705004377
Superseded by 705006763
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#473
FRONT FENDER - Call your local BRP dealership
705005285
Superseded by 705009301
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#484
Support Plate
705003841
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#486
Yellow RH Rear Lateral Panel
705002905
Superseded by 705007865
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#486
PANEL_BODY REAR R B-176 - Call your local BRP dealership
705003851
Superseded by 705007867
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#486
Yellow RH Rear Lateral Panel
705002905
Superseded by 705007865
|
$104.99 | ||
|
Unavailable |
|||
|
#486
PANEL_BODY REAR R B-005 - Call your local BRP dealership
705004395
Superseded by 705006123
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#486
PANEL_BODY REAR R B-160 - Call your local BRP dealership
705004397
Superseded by 705006119
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#486
Panel_Body Rear R B-321
705005299
Superseded by 705011700
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#487
Support Plate
705004261
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#489
Center Upper Facia Protector
705004336
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#490
Yellow CVT Inlet Cover
705004337
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#490
RED CVT INLET COVER - Call your local BRP dealership
705004381
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#490
CAMO CVT INLET COVER - Call your local BRP dealership
705004382
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
CVT INLET COVER, BLACK - Call your local BRP dealership
705004383
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#490
CVT INLET COVE - Call your local BRP dealership
705005287
Superseded by 705009302
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#491
LH Upper Facia Protector
705004350
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#492
RH Upper Facia Protector
705004351
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#512
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#544
RH Lateral Middle Panel
705005547
Superseded by 705006992
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#544
RH Middle Side Pannel
705005549
Superseded by 705006994
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#544
MIDDLE PANEL - Call your local BRP dealership
705005551
Superseded by 705006996
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#562
Cup
705004510
Superseded by 705007171
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#616
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#618
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#619
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#675
LH Lower Rear Facia Protector
705004819
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#676
RH Lower Rear Facia Protector
705004820
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#677
LH Lateral Middle Panel
705005546
Superseded by 705006991
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#677
LH Middle Side Pannel
705005548
Superseded by 705006993
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#677
MIDDLE PANEL - Call your local BRP dealership
705005550
Superseded by 705006995
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#680
LH Deflector
705005113
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#681
RH PROTECTOR PLATE - Call your local BRP dealership
705005416
Superseded by 705006075
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#682
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#686
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#769
YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership
705005534
Superseded by 705007845
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#769
PANEL_BODY FR B-176 - Call your local BRP dealership
705005536
Superseded by 705004997
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#769
YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership
705005534
Superseded by 705007845
|
$37.99 | ||
|
Unavailable |
|||
|
#769
RH FRONT LATERAL PANNEL, BLACK - Call your local BRP dealership
705005540
Superseded by 705005560
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#769
PANEL_BODY FR B-005 - Call your local BRP dealership
705005543
Superseded by 705006379
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#769
MAGNESIUM RH FRONT LATERAL PANNEL - Call your local BRP dealership
705005555
Superseded by 705006383
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#1540
RH Deflector
705002894
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#1620
Rubber Stopper
708000759
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#255a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#255b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#394a
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#394b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#1
Edge Clip
517302785
|
$0.90 | ||
|
Unavailable |
|||
|
#6
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Hexagonal Head Screw
210262080
Superseded by 210262050
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Hex. Nut M8
232081414
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#35
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Unavailable |
|||
|
#48
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Unavailable |
|||
|
#60
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Unavailable |
|||
|
#100
Flange Elastic Nut M5
233251414
Superseded by 233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#101
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#104
Flat Washer M5
234051410
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#107
Stainless Flat Washer M6
234061600
|
$0.32 | ||
|
Available to order. Add to View Price |
|||
|
#117
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#119
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#122
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#127
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#134
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#146
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#163
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
Unavailable |
|||
|
#185
Flat Washer 8 mm
234081410
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#187
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#188
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#190
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#193
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#194
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#196
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#200
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
Unavailable |
|||
|
#203
Torx Screw M6 X 20
250000128
Superseded by 250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#204
Torx Screw M6 X 20
250000128
Superseded by 250000722
|
$1.69 | ||
|
Unavailable |
|||
|
#206
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#209
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#217
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#219
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#225
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#247
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#251
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
Unavailable |
|||
|
#253
Hex Torx Truss M8 X30
250000197
Superseded by 250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#255
Torx Screw M6 X 45
250000215
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#256
Torx Screw M6 X 16
250000261
Superseded by 250000755
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#262
Truss Head Torx Screw K50 X 20
250000297
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#265
Truss Head Torx Screw K50 X 20
250000297
|
$2.19 | ||
|
Unavailable |
|||
|
#275
Torx Truss Screw M6 X 20
250000488
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#279
Torx Truss Screw M6 X 20
250000488
|
$2.19 | ||
|
Unavailable |
|||
|
#285
Torx Truss Screw M6 X 20
250000350
|
$5.19 | ||
|
Unavailable |
|||
