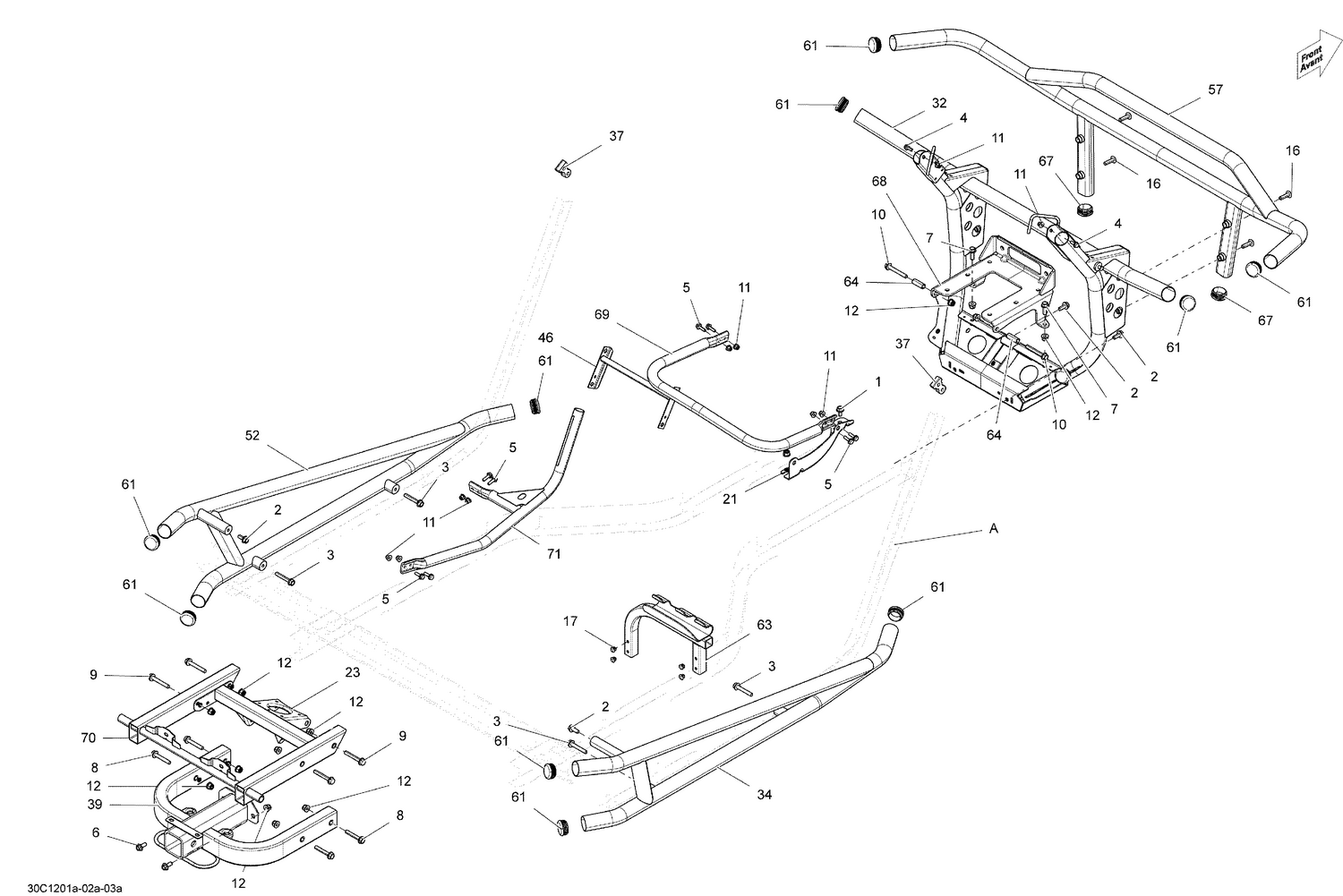

09- Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#3
Hex. Flange Screw M8 X 50
207585044
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Screw M6 X 16
207661644
|
$0.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Hex. Flange Screw M6 X 20
207662044
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Flange Screw M8 X 50
207685044
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M8 X 55
207685544
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hex. Flange Screw M8 x 60
207686044
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#16
Hex Torx Truss M8 X30
250000197
Superseded by 250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hemlock Rivet, 6.5 mm
293150096
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Front Differential Support
705201721
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SUPPORT - Call your local BRP dealership
705202166
Superseded by 705203317
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Black Front Bumper
705202614
Superseded by 705202995
|
$404.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BLACK RH LOWER PROTECTOR - Call your local BRP dealership
705201975
Superseded by 705203329
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Binding Block
705202129
Superseded by 705203415
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
TRAILER HITCH ASS'Y - Call your local BRP dealership
715001251
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Reinforcement Panel
705202463
Superseded by 705203330
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BLACK LH LOWER PROTECTOR - Call your local BRP dealership
705201962
Superseded by 705203327
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
Black Front Bumper
715000958
|
$308.49 | ||
|
Unavailable |
|||
|
#61
Cap
705202455
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
Cap
705202455
|
$5.69 | ||
|
Unavailable |
|||
|
#63
FRAME - Call your local BRP dealership
715001325
Superseded by 715001986
|
$2,415.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
Bushing
705202499
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#67
Tube Cap
705202631
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
Winch Plate
715000704
|
$122.49 | ||
|
Unavailable |
|||
|
#69
Black Handle
705202950
Superseded by 705203332
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOX HOLDER - Call your local BRP dealership
705202165
Superseded by 705203325
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
HANDLE - Call your local BRP dealership
705202946
Superseded by 705203828
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#A
FRAME - Call your local BRP dealership
715001417
Superseded by 715001986
|
$2,415.99 | ||
|
Unavailable |
|||
