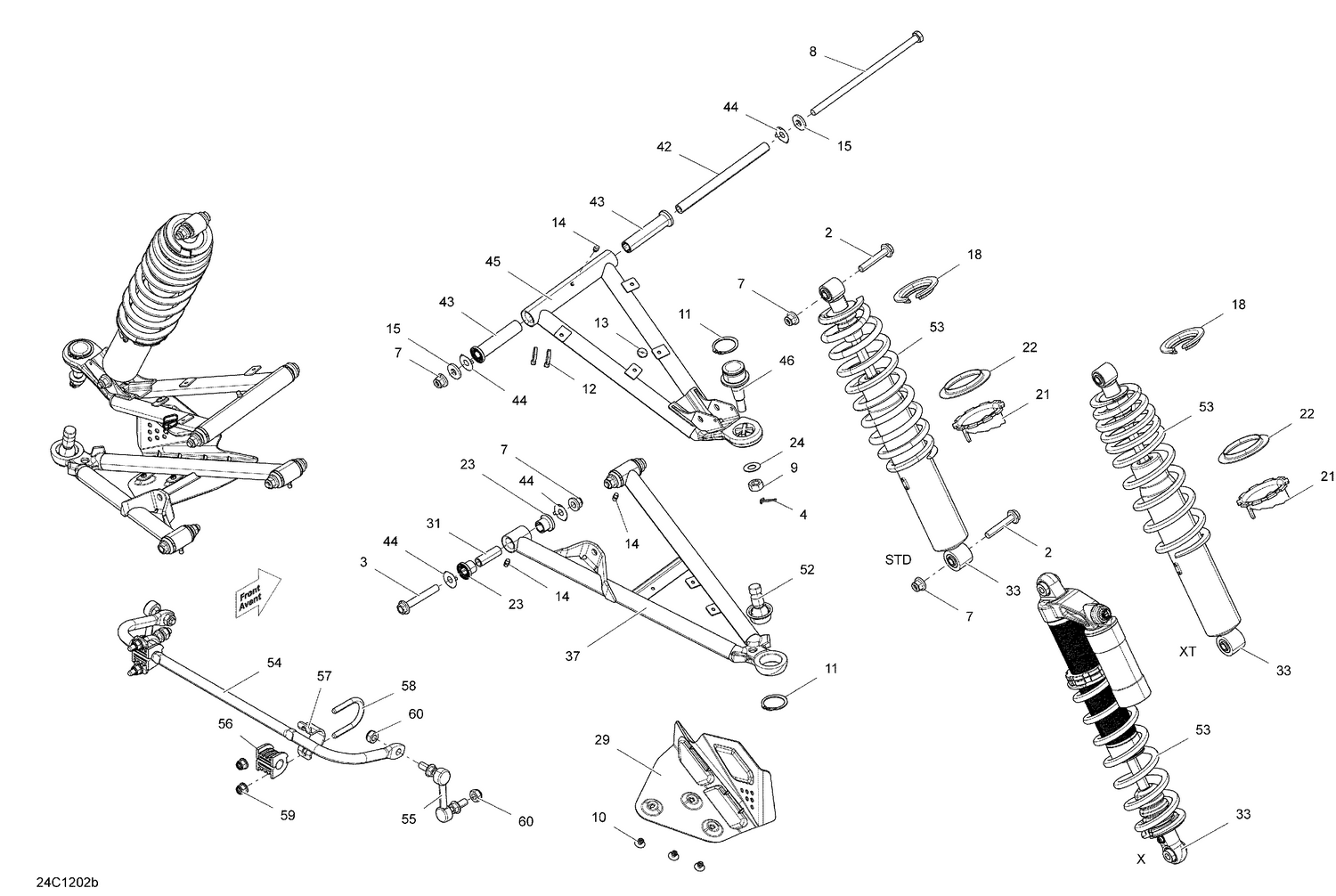

07- Front Suspension X Model Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
Hex. Flange Screw M10 X 55
207605544
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Cap Screw M10 X 225
250000510
Superseded by 250001032
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Washer
503190439
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#21
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#22
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#23
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
RH Protector
706200616
Superseded by 706201670
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
LH Protector
706200615
Superseded by 706201669
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Unavailable |
|||
|
#33
FRONT SHOCK - Call your local BRP dealership
706201449
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
LH Lower Suspension Arm
706200742
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
RH Lower Suspension Arm
706200744
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Bushing
706201061
Superseded by 706202445
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#43
Cushion
706201062
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#44
Wear Plate
706201063
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#45
Suspension Upper Arm
706200796
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Ball Joint
706202044
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Ball Joint
706201371
Superseded by 706202507
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
YELLOW FRONT SPRING - Call your local BRP dealership
706201124
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
Sway Bar Ass'y
706200865
Superseded by 706202560
|
$99.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
LH Sway Bar Link
706200894
Superseded by 706202536
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
RH Sway Bar Link
706201032
Superseded by 706202537
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Stabilizer Bushing
706201086
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#57
Clamp
706201087
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#58
U-clamp
506060600
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
Elastic Flange Nut M10
232501416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
