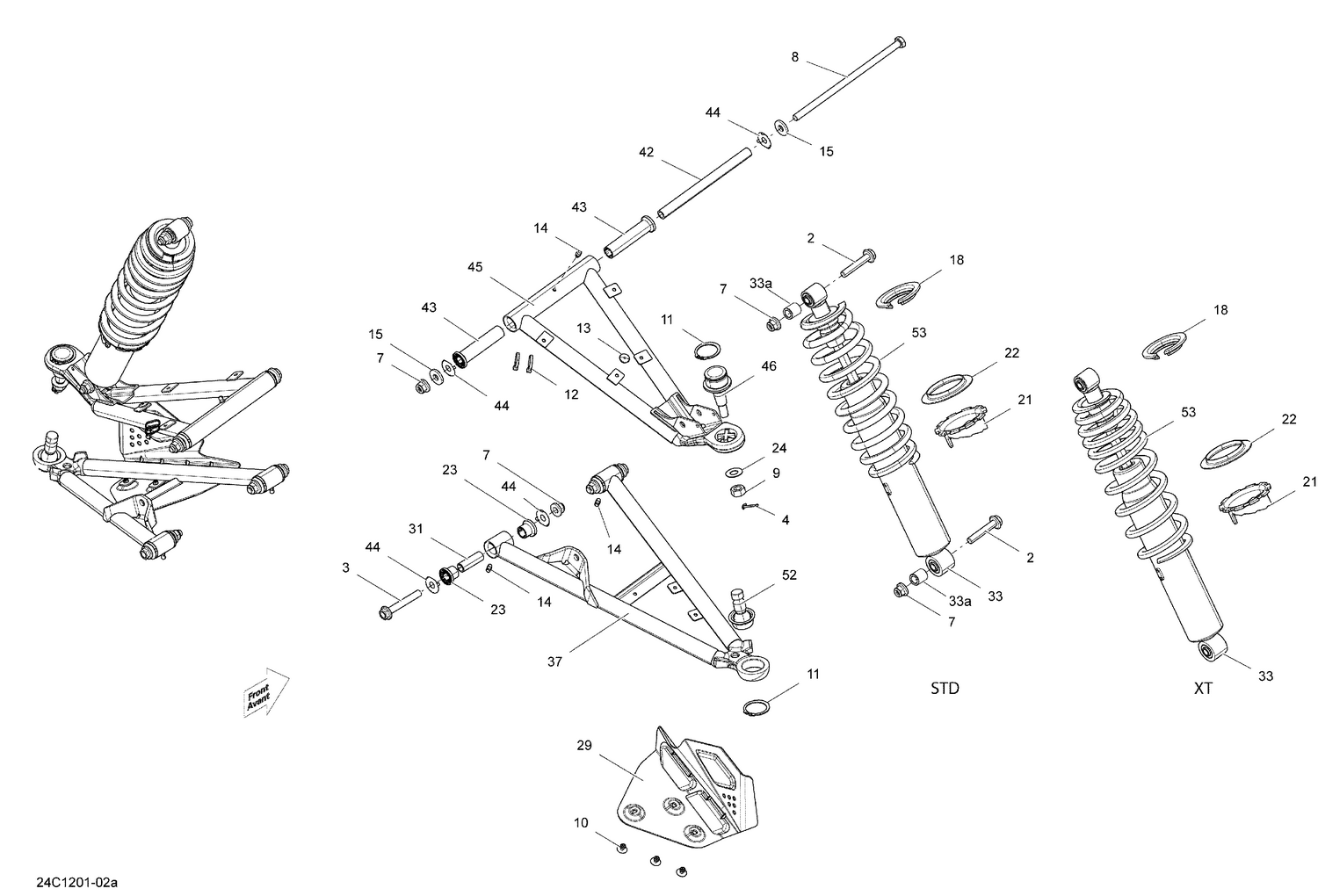

07- Front Suspension Std, Xt Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
Hex. Flange Screw M10 X 55
207605544
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Screw M10 X 70
207607046
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cotter Pin
211400017
|
$0.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Hex. Cap Screw M10 X 225
250000510
Superseded by 250001032
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
Pop Rivet 3/16"
293150104
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
Circlip
293370035
|
$2.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Pop Rivet 3/16"
390406500
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
Grease Fitting
408200700
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Washer
503190439
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
Spring Stopper
706000567
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Adjustment Ring
706000910
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Protector Ring
706000911
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
RH Protector
706200616
Superseded by 706201670
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
LH Protector
706200615
Superseded by 706201669
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
Suspension Arm Bushing Kit
703500875
|
$16.33 | ||
|
Unavailable |
|||
|
#33
Front Shock
706200782
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#33a
Bushing
715900122
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#37
LH Lower Suspension Arm
706200742
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
RH Lower Suspension Arm
706200744
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Bushing
706201061
Superseded by 706202445
|
$14.30 | ||
|
Available to order. Add to View Price |
|||
|
#43
Cushion
706201062
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#44
Wear Plate
706201063
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#45
Suspension Upper Arm
706200796
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Ball Joint
706202044
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Ball Joint
706201371
Superseded by 706202507
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
YELLOW FRONT SPRING - Call your local BRP dealership
706200860
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
RED FRONT SPRING - Call your local BRP dealership
706201367
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
BLACK FRONT SPRING - Call your local BRP dealership
706201369
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
YELLOW SPRING - Call your local BRP dealership
706201497
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
