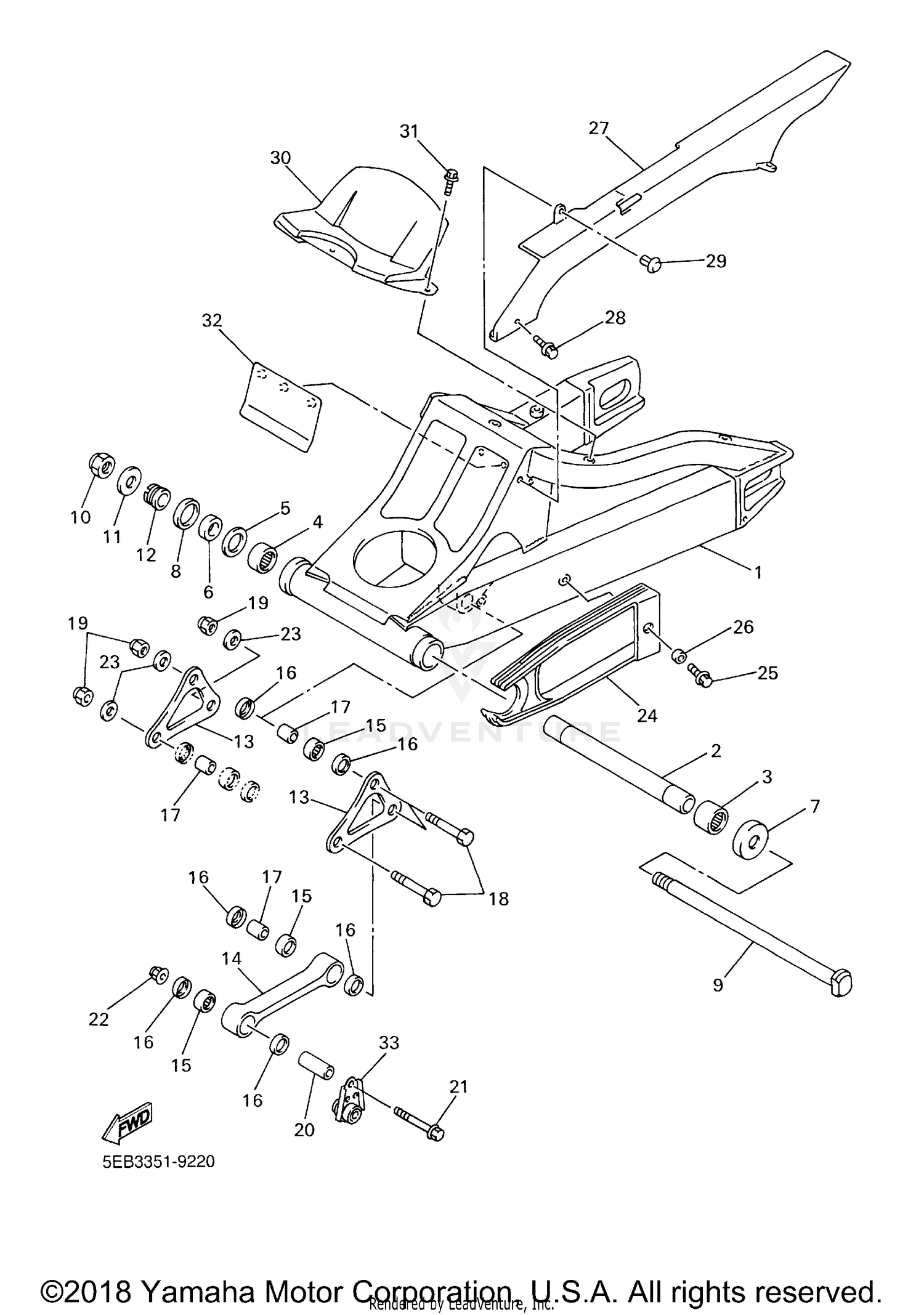

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5EB-22110-00-00
Superseded by 5EB-22110-01-00
|
$1,109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
5EB-22184-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93315-42523-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93315-42536-00
Superseded by 93317-425B7-00
|
$45.99 | ||
|
Unavailable |
|||
|
#5
SHIM
5EB-22127-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH 1
5EB-22123-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, THRUST 1
3FV-22128-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93109-33049-00
Superseded by 93109-33052-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT, PIVOT
4FN-22141-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-186M4-00
Superseded by 90201-18264-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
5EB-22125-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, RELAY
5EB-2217A-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM 1
5EB-2217M-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93315-31759-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-127W0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-10709-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
NUT, U
95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR
90387-1012B-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WASHER BASED
90105-10323-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, GUARD
5EB-22151-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-06227-00
Superseded by 90119-06118-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CASE, CHAIN
5EB-22311-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, WITH WASHER
90119-06052-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
REAR FENDER COMP.
5EB-21650-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06052-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#32
FLAP
30X-21621-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, MUFFLER 2
5EB-21446-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
