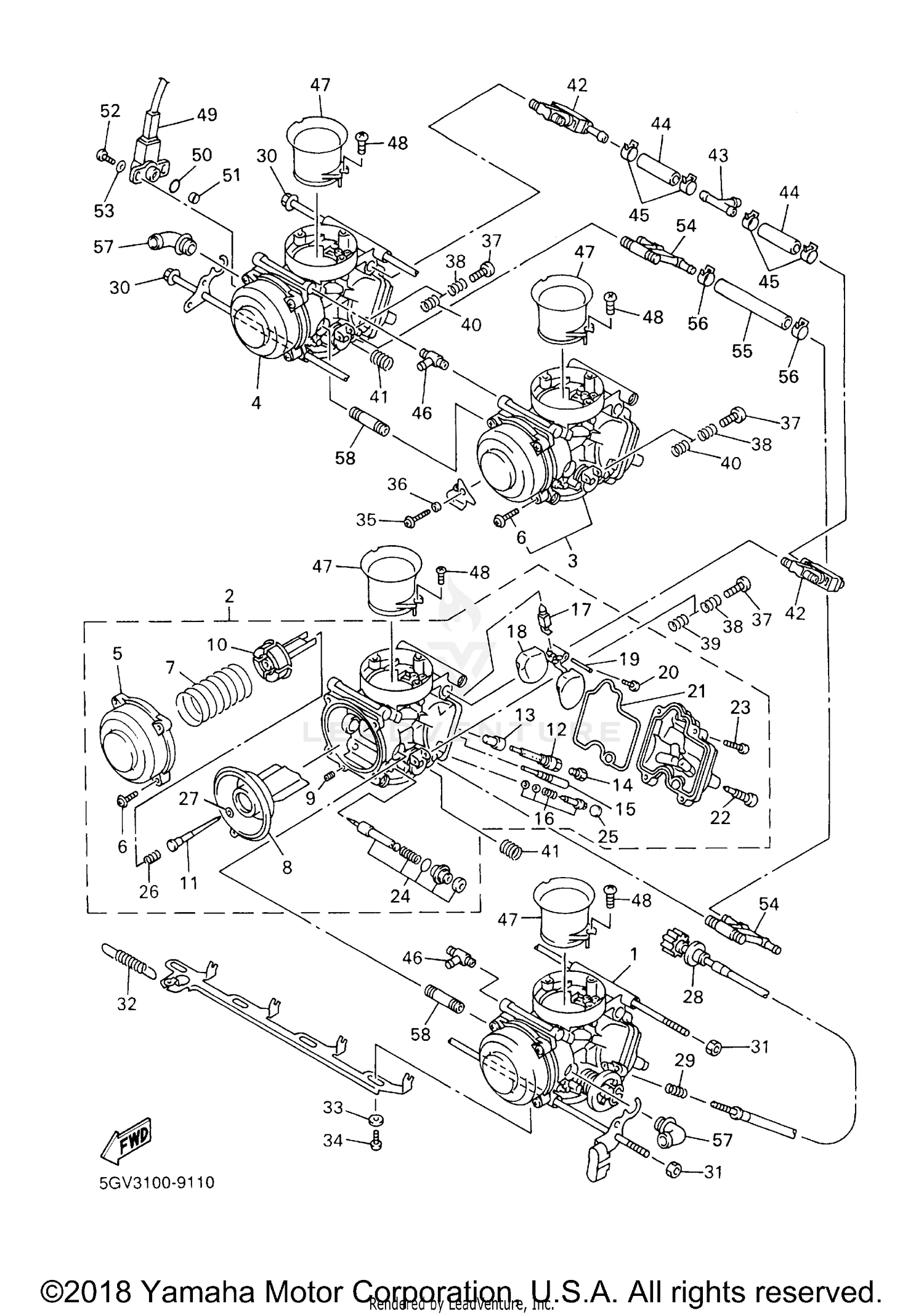

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
5GV-14901-01-00
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CARBURETOR ASSY 1
5GV-14901-10-00
|
$609.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY 2
5GV-14902-01-00
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR ASSY 2
5GV-14902-10-00
|
$609.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY 3
5GV-14903-01-00
|
$596.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR ASSY 3
5GV-14903-10-00
|
$596.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY 4
5GV-14904-01-00
|
$596.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR ASSY 4
5GV-14904-10-00
|
$596.99 | ||
|
Unavailable |
|||
|
#5
COVER, DIAPHRAGM
5EB-14958-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
4JH-14216-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
4JH-14216-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
SPRING, DIAPHRAGM
5EB-14933-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM ASSY
5EB-14940-00-00
Superseded by 5EB-14940-09-00
|
$173.99 | ||
|
Unavailable |
|||
|
#8
DIAPHRAGM ASSY
5GV-14940-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET
4JH-14515-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, SPRING
5EB-14936-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING
5GV-14936-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#11
NEEDLE (N7SB)
5GV-14916-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE (N7SA)
5EB-14916-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE (N7SD)
5GV-14916-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE (N7SE)
5GV-14916-20-00
|
$12.99 | ||
|
Unavailable |
|||
|
#12
PIPE, MAIN BREED
5EB-1414G-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, NOZZLE
5EB-14244-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, MAIN (#148)
3TJ-14943-87-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, MAIN (#148)
3TJ-14943-87-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
JET, MAIN (#152)
3TJ-14943-88-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET (#38)
5EB-14948-02-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET (#35)
5EB-14948-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
5EB-14105-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
5GV-14105-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NEEDLE VALVE SET
5EB-14107-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLOAT
5EB-14985-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, FLOAT ARM
676-14548-00-00
Superseded by 663-14548-00-00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
688-14592-00-00
Superseded by 98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET, FLOAT CHAMBER
5EB-14984-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PLUG, DRAIN
3TJ-14191-40-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98502-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
STARTER SET
4YR-1410A-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP
4MM-14118-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING
5GV-14556-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#27
WASHER
5GV-14557-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#28
SCREW, THROTTLE
5EB-14922-00-00
|
$97.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, THROTTLE STOP
4JH-14934-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HOLDING
5EB-14162-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#31
NUT, FLANGE
4JH-14358-00-00
Superseded by 95704-05500-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING
5EB-14935-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90202-06056-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, GUIDE
3TJ-14245-40-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
4JH-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
4JH-14264-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, THROTTLE STOP
5EB-14121-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, ADJUST SCREW
7A9-14555-00-00
Superseded by 5JG-14531-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, THROTTLE STOP
4YR-14133-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, THROTTLE STOP
4JH-14133-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING
4JH-14487-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE ADAPTOR ASSY
4JH-14350-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE T
4JH-13918-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE
5EB-14298-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP
4JH-14137-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE
5EB-14197-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
JOINT, AIR FILTER 1
5EB-1440F-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW
3TJ-14216-40-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#49
THROTTLE POSITION SENSOR ASSY
4TV-85885-00-00
|
$487.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING
4TV-14562-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
COLLAR
4TV-14534-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SCREW
4TV-14216-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
WASHER
4TV-14557-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#54
JOINT
5EB-12446-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOSE 1
5EB-12576-00-00
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLIP
4TV-12486-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
NIPPLE
5EB-14251-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
JOINT
5EB-14454-00-00
|
$26.99 | ||
|
Unavailable |
|||
