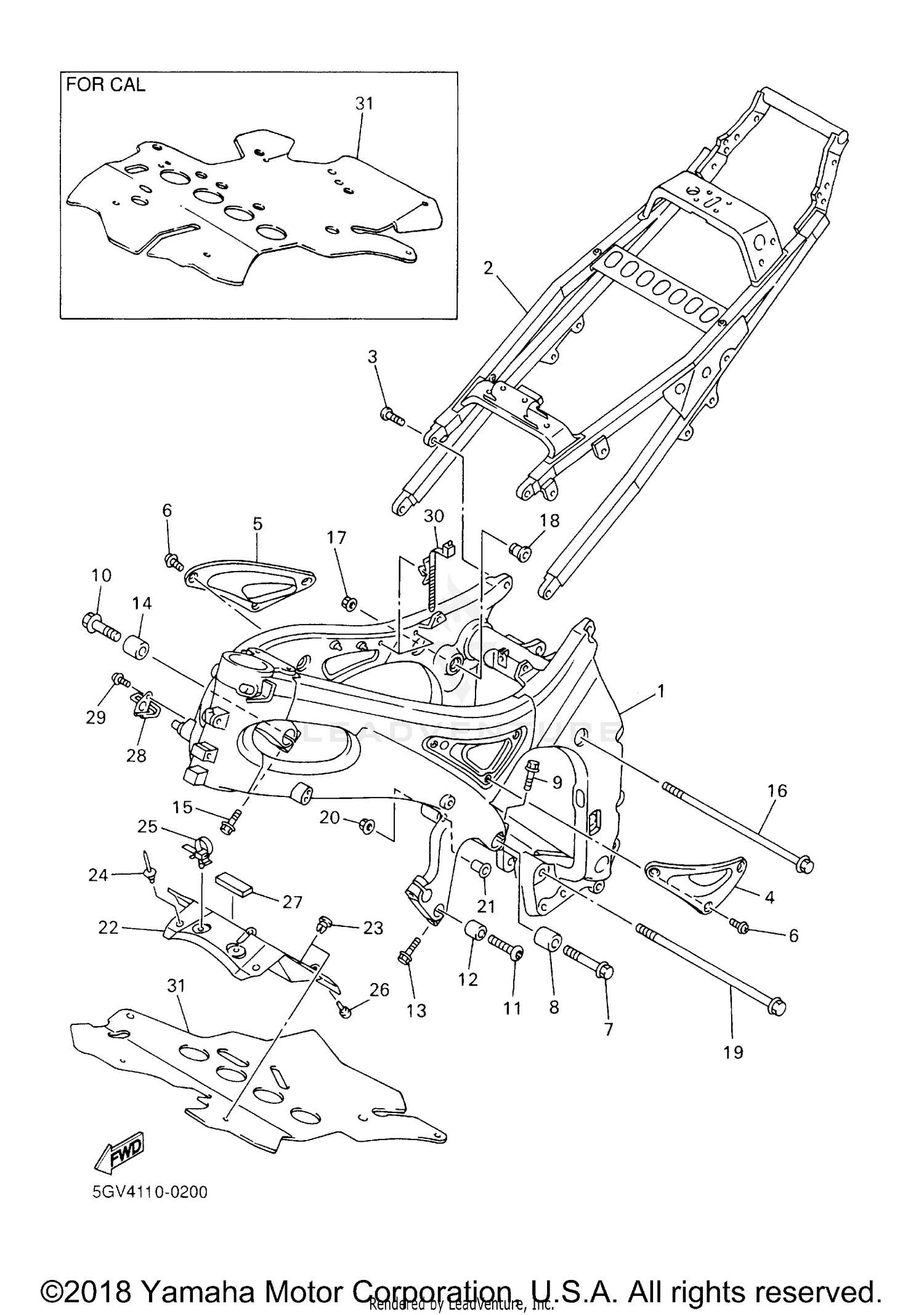

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5EB-21110-01-00
|
$1,869.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR FRAME COMP.
5EB-21190-00-00
Superseded by 5EB-21190-01-00
|
$511.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90111-10018-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 7
5EB-2117V-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
COVER 8
5EB-2117W-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#6
SCREW, BINDING
90154-05059-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-12060-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-1414W-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-08035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-12004-00
Superseded by 95027-12050-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92017-10040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-1214V-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COLLAR
90387-1312P-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-08035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-10042-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-10696-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, ENGINE ADJUSTING
5EB-21495-00-00
Superseded by 4C8-21495-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-106A2-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-10696-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
BOLT, ENGINE ADJUSTING
5EB-21495-00-00
Superseded by 4C8-21495-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
COVER 2
5EB-2117M-10-00
|
$34.99 | ||
|
Unavailable |
|||
|
#22
COVER 2
5EB-2117M-00-00
|
$34.14 | ||
|
Unavailable |
|||
|
#23
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RIVET
90269-07077-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER 2
36Y-21639-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
DAMPER 4
3KJ-15337-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
GUIDE, CABLE 2
5EB-26132-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-20213-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PROTECTOR, HEAT
5GV-12682-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#31
PROTECTOR, HEAT
5EB-12682-01-00
Superseded by 5GV-12682-00-00
|
$56.99 | ||
|
Unavailable |
|||
