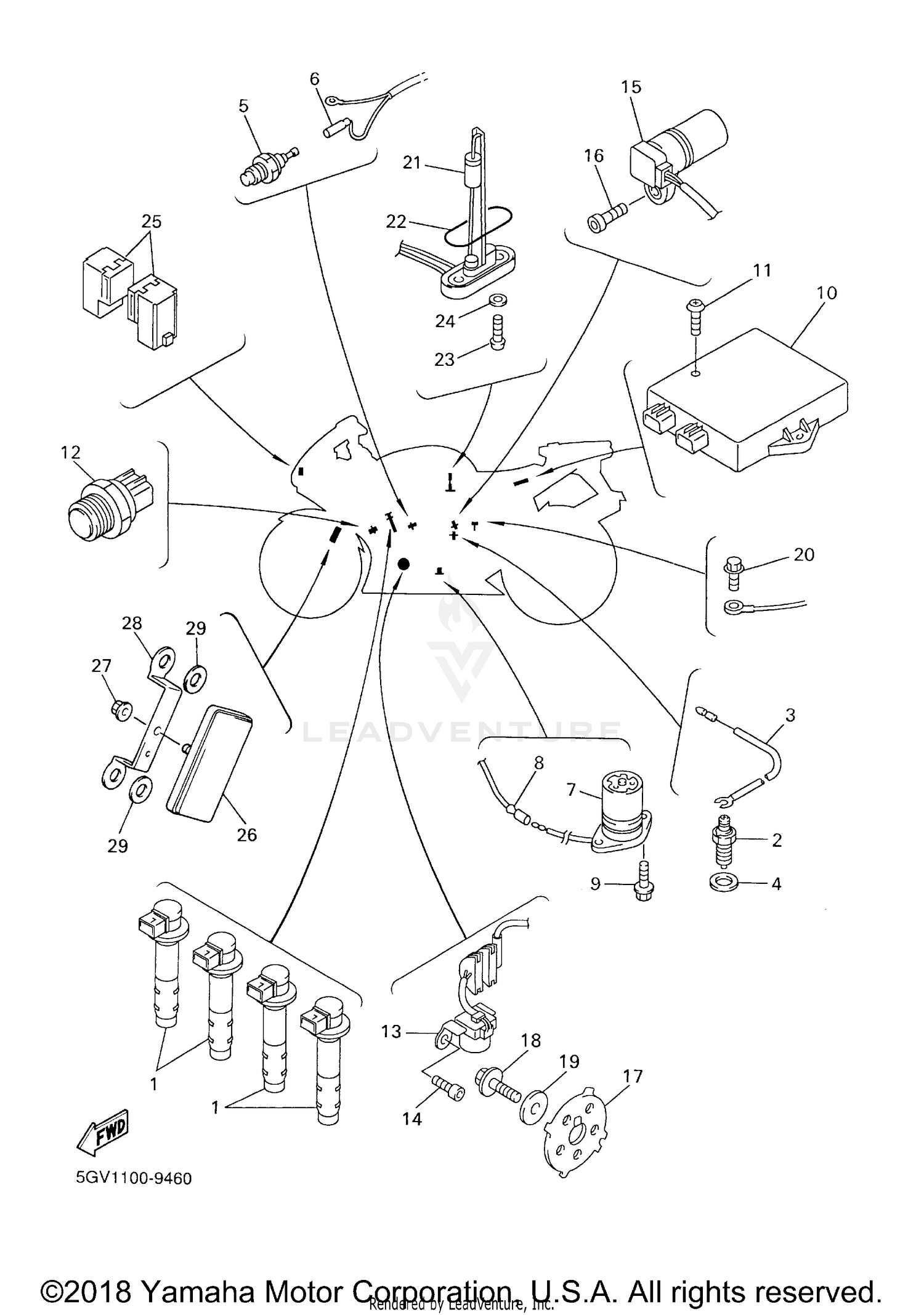

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
5EB-82310-00-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, LEAD
5EB-82541-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
THERMO UNIT
11H-83591-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE, LEAD
5EB-82541-20-00
Superseded by 5EB-82541-21-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
OIL LEVEL GAUGE ASSY
5EB-85720-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, SUB LEAD
5EB-82509-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
C.D.I. UNIT ASSY
5EB-85540-40-00
|
$714.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
C.D.I. UNIT ASSY
5EB-85540-30-00
Superseded by 5EB-85540-10-00
|
$744.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING
97707-60025-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
THERMO SWITCH ASSY
5EB-82560-00-00
Superseded by 5EB-82560-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PICK-UP ASSY
5EB-81670-00-00
Superseded by 5EB-81670-01-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, SPEED
5EB-83755-00-00
Superseded by 5EB-83755-02-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (4MY)
91317-06016-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
ROTOR
5EB-81673-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROTOR
5GV-81673-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08386-00
Superseded by 90105-08113-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SENDER UNIT ASSY, FUEL METER
1UF-85752-02-00
Superseded by 1UF-85752-03-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, SENDER UNIT
42X-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, SPECIAL SHAPE
90149-06008-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
RELAY ASSY (4XV-00)
4XV-81950-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, REFLECTOR 2
5BN-85122-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-08759-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
