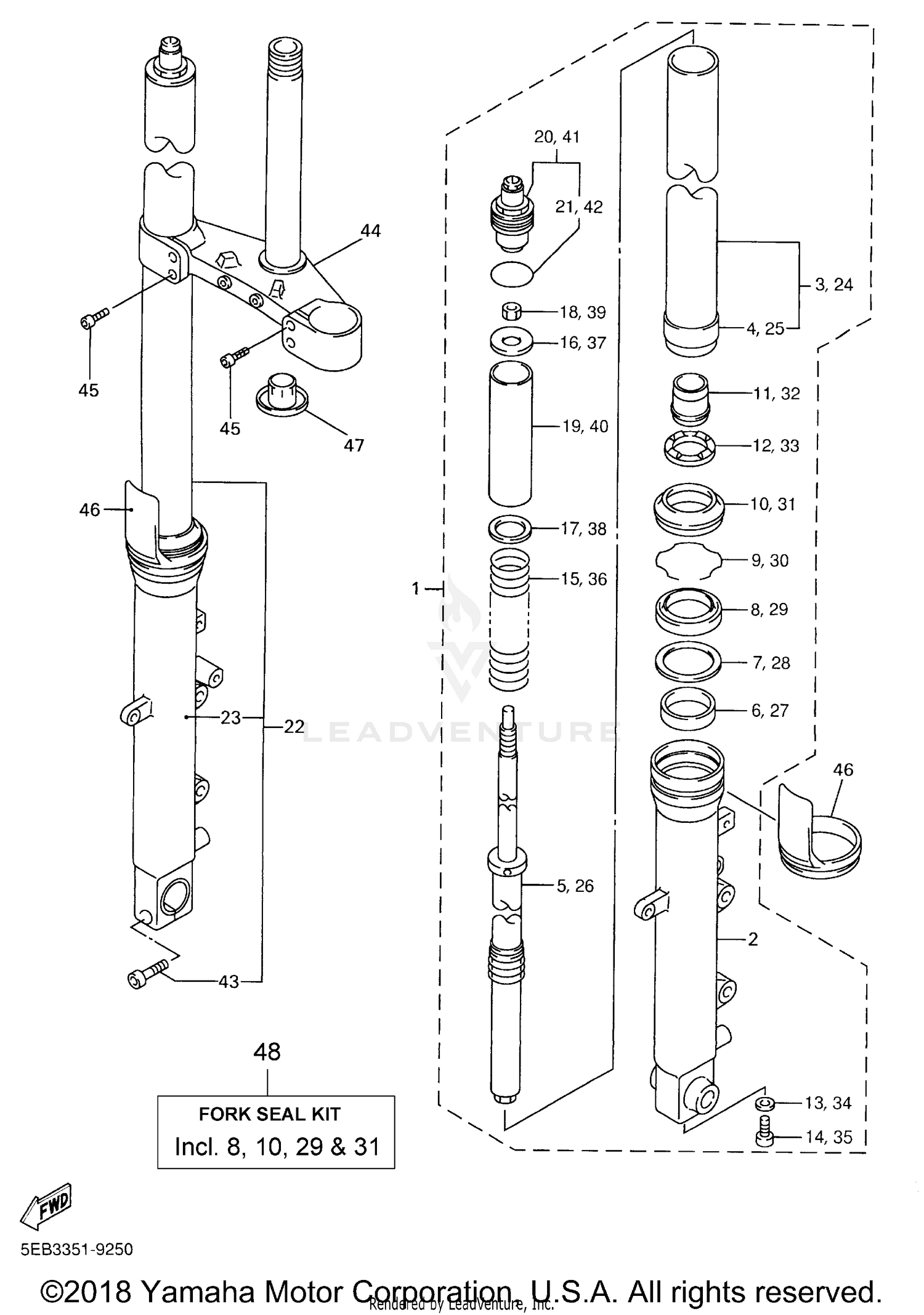

2000 Yamaha YZF R6 FRONT FORK OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 FRONT FORK ASSY (L.H)
5EB-23102-00-00
$884.99
Available: Ships in 7-12 days.
Add to View Price
#2 TUBE, OUTER (LEFT)
5EB-23126-00-00
$493.99
Unavailable
#3 INNER TUBE COMP.1
5EB-23110-00-00
$363.99
Available: Ships in 7-12 days.
Add to View Price
#4 PISTON, FRONT FORK
5EB-23171-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#5 CYLINDER COMP., FRONT FORK
5EB-23170-00-00
$410.99
Unavailable
#6 METAL, SLIDE 1
5EB-23125-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#7 WASHER, OIL SEAL
4V4-23146-L0-00
$3.12
Available: Ships in 7-12 days.
Add to View Price
#8 OIL SEAL
4PU-23145-00-00
Superseded by 4PU-23145-01-00
$20.99
In Stock: Ready to ship.
Add to View Price
#9 RING, SNAP
4V4-23153-L0-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 SEAL, DUST
4PU-23144-00-00
$18.49
In Stock: Ready to ship.
Add to View Price
#11 SPINDLE, TAPER
5EB-23173-00-00
$43.99
Unavailable
#12 RUBBER
5EB-2332K-00-00
Superseded by 5MT-23195-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#13 GASKET
2K8-23158-L0-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#14 BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#15 SPRING, FRONT FORK
5EB-23141-00-00
Superseded by 5MT-23141-00-00
$81.99
Unavailable
#16 WASHER, SPRING UPPER
3TJ-23149-10-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#17 WASHER, SPRING UPPER
3LR-23149-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#18 NUT
3LC-23357-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#19 SPACER
4GY-23118-10-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#20 BOLT, CAP
4KG-23111-10-00
$194.99
Available: Ships in 7-12 days.
Add to View Price
#21 O-RING
4V4-23188-L0-00
$6.49
In Stock: Ready to ship.
Add to View Price
#22 FRONT FORK ASSY (R.H)
5EB-23103-00-00
$952.99
Available: Ships in 7-12 days.
Add to View Price
#23 TUBE, OUTER (RIGHT)
5EB-23136-00-00
$503.99
Unavailable
#24 INNER TUBE COMP.1
5EB-23110-00-00
$363.99
Unavailable
#25 PISTON, FRONT FORK
5EB-23171-00-00
$27.99
Unavailable
#26 CYLINDER COMP., FRONT FORK
5EB-23170-00-00
$410.99
Unavailable
#27 METAL, SLIDE 1
5EB-23125-00-00
$22.99
Unavailable
#28 WASHER, OIL SEAL
4V4-23146-L0-00
$3.12
Unavailable
#29 OIL SEAL
4PU-23145-00-00
Superseded by 4PU-23145-01-00
$20.99
Unavailable
#30 RING, SNAP
4V4-23153-L0-00
$6.49
Unavailable
#31 SEAL, DUST
4PU-23144-00-00
$18.49
Unavailable
#32 SPINDLE, TAPER
5EB-23173-00-00
$43.99
Unavailable
#33 RUBBER
5EB-2332K-00-00
Superseded by 5MT-23195-00-00
$20.99
Unavailable
#34 GASKET
2K8-23158-L0-00
$19.49
Unavailable
#35 BOLT, HEXAGON SOCKET HEAD
3LC-23181-00-00
$21.99
Unavailable
#36 SPRING, FRONT FORK
5EB-23141-00-00
Superseded by 5MT-23141-00-00
$81.99
Unavailable
#37 WASHER, SPRING UPPER
3TJ-23149-10-00
$5.99
Unavailable
#38 WASHER, SPRING UPPER
3LR-23149-00-00
$9.99
Unavailable
#39 NUT
3LC-23357-00-00
$6.49
Unavailable
#40 SPACER
4GY-23118-10-00
$13.99
Unavailable
#41 BOLT, CAP
4KG-23111-10-00
$194.99
Unavailable
#42 O-RING
4V4-23188-L0-00
$6.49
Unavailable
#43 BOLT, HEXAGON SOCKET HEAD
91314-08035-00
$8.49
In Stock: Ready to ship.
Add to View Price
#44 UNDER BRACKET COMP.
5EB-23340-00-00
$460.99
Unavailable
#45 BOLT, HEXAGON SOCKET HEAD
91314-08025-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#46 COVER
4PU-2331G-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#47 COVER, LOWER 1
4KM-23123-01-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#48 FORK SEAL KIT
4PU-W003B-00-00
$38.99
In Stock: Ready to ship.
Add to View Price
