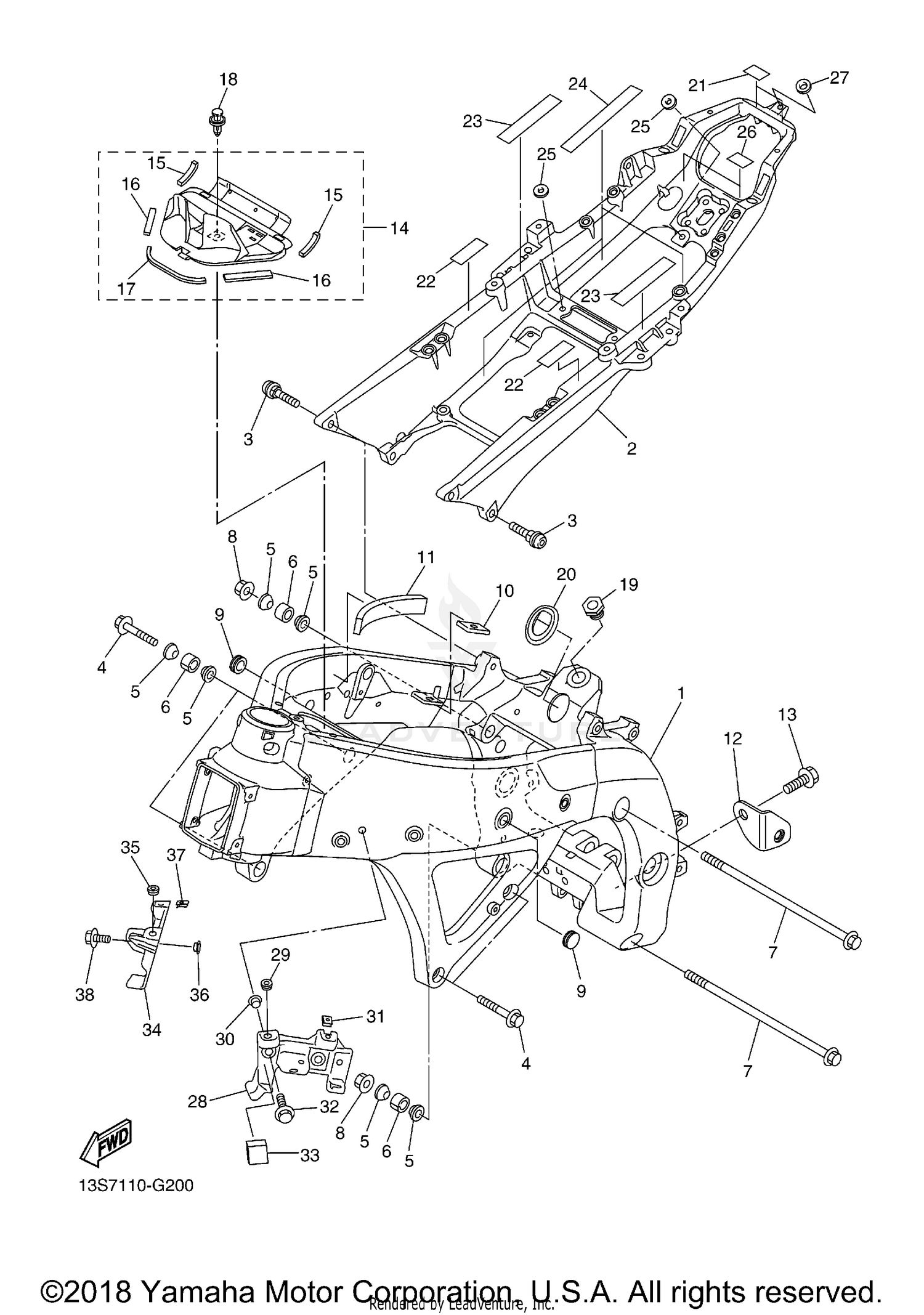

2013 Yamaha YZF R6 FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
13S-21110-10-00
|
$2,193.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REAR FRAME COMP.
13S-21190-10-00
|
$676.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SCREW,SET
13S-2585H-00-00
Superseded by 13S-2585H-09-00
|
$30.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, FLANGE (SMALL HEAD)
95024-10040-00
|
$3.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOSS, ENGINE MOUNT
13S-21414-00-00
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOSS, ENGINE MOUNT
13S-21424-00-00
|
$31.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-12228-00
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
90179-12004-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PLUG
90338-15004-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
DAMPER, LOCATING 2
2C0-24182-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
DAMPER 2
2C0-21486-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BRACKET, MUFFLER 1
13S-21435-00-00
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-08171-00
Superseded by 95812-08020-00
|
$2.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COVER ASSY 1
13S-2110M-00-00
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
DAMPER
13S-2174X-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
DAMPER
2C0-2174Y-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
DAMPER
2C0-21746-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
RIVET
90269-07010-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT 1
2C0-22241-00-00
|
$21.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PLUG, BLIND
2C0-21279-00-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
TAPE, 1
2C0-21566-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
TAPE, 2
2C0-21567-00-00
|
$5.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
TAPE, 1
13S-21566-00-00
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
TAPE, 2
13S-21567-00-00
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SEAL 1
13S-2111D-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
TAPE, 1
2C0-21566-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
DAMPER
13S-21746-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BRACKET 7
13S-2833A-00-00
Superseded by 13S-2833A-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
GROMMET
90480-10003-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
COLLAR
90387-06048-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
DAMPER, SHROUD 6
13S-12679-00-00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
BRACKET 8
13S-2833E-00-00
|
$8.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
GROMMET
90480-10003-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
COLLAR
90387-06048-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.30 | ||
|
Unavailable |
|||
