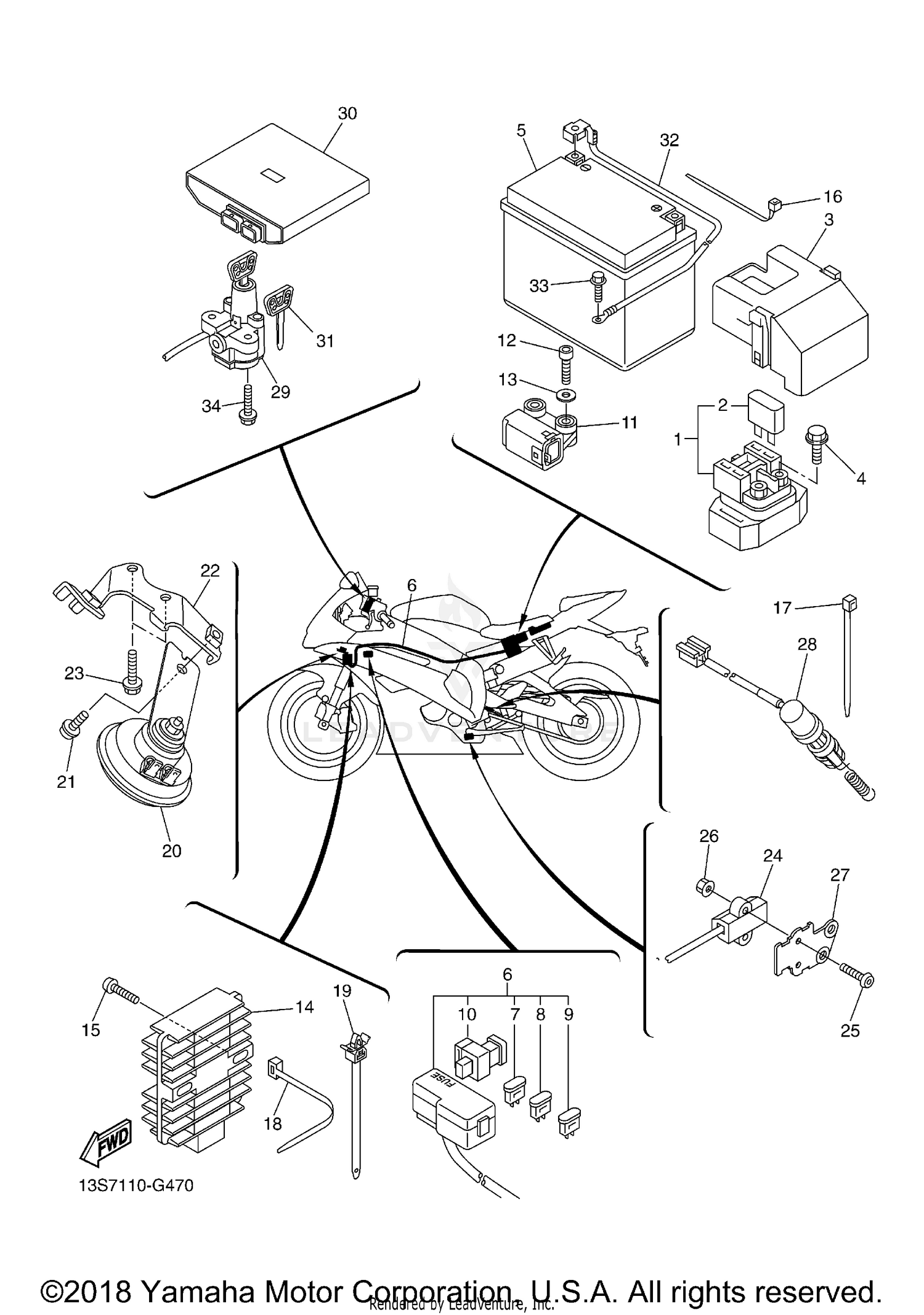

2013 Yamaha YZF R6 ELECTRICAL 2 OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 STARTER RELAY ASSY (RC19-054) 2C0-81940-00-00	$143.99
Available: Ships in 7-12 days. Add to View Price
#2 FUSE (15A-BLUE) 36Y-82151-00-00	$4.60
Available: Ships in 7-12 days. Add to View Price
#3 COVER, LEAD WIRE 5SL-82119-10-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#4 BOLT, FLANGE 95022-06008-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#5 YTZ10S YUASA BATTER 5VY-82100-00-00 Superseded by YTZ-10S00-00-00	$255.99
Available: Ships in 7-12 days. Add to View Price
#6 WIRE HARNESS ASSY 13S-82590-10-00 Superseded by 13S-82590-11-00	$820.99
Unavailable
#7 FUSE (15A) 5JJ-82151-10-00 Superseded by 67F-82151-50-00	$3.55
Available: Ships in 7-12 days. Add to View Price
#8 FUSE (7.5A-BL) 5JJ-82151-00-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#9 FUSE (10A) 5JJ-82151-30-00 Superseded by 67F-82151-40-00	$8.99
Available: Ships in 7-12 days. Add to View Price
#10 FUSE (50A) 5JW-82151-10-00	$14.99
Available: Ships in 7-12 days. Add to View Price
#11 SENSOR, LEAN ANGLE 5PS-82576-01-00	$98.99
Available: Ships in 7-12 days. Add to View Price
#12 BOLT, HEX. SOCKET HEAD 91317-04025-00	$4.45
Available: Ships in 7-12 days. Add to View Price
#13 WASHER, PLATE 90201-042E0-00	$4.75
Available: Ships in 7-12 days. Add to View Price
#14 RECTIFIER & REGULATOR ASSY 4XY-81960-00-00	$166.99
Available: Ships in 7-12 days. Add to View Price
#15 BOLT, BUTTON HEAD 92012-06025-00	$3.05
Available: Ships in 7-12 days. Add to View Price
#16 CLAMP 90465-15011-00	$2.10
Available: Ships in 7-12 days. Add to View Price
#17 BAND 90464-32060-00 Superseded by 1UA-82591-00-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#18 CLAMP 90464-16061-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#19 CLAMP 90464-12036-00 Superseded by 90464-10112-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#20 HORN 4TH-83371-00-00	$44.99
Available: Ships in 7-12 days. Add to View Price
#21 BOLT, FLANGE 95812-06012-00	$0.75
Available: Ships in 7-12 days. Add to View Price
#22 BRACKET, HORN 13S-23377-00-00	$23.99
Available: Ships in 7-12 days. Add to View Price
#23 BOLT, FLANGE 95822-06020-00 Superseded by 95817-06020-00	$3.50
Available: Ships in 7-12 days. Add to View Price
#24 SWITCH, SIDE STAND 13S-82566-70-00	$99.99
Available: Ships in 7-12 days. Add to View Price
#25 BOLT, BUTTON HEAD 92012-05025-00	$5.49
Available: Ships in 7-12 days. Add to View Price
#26 NUT, U FLANGE 95602-05200-00 Superseded by 95607-05200-00	$6.99
Available: Ships in 7-12 days. Add to View Price
#27 BRACKET, SENSOR 1 2C0-27961-00-00	$26.99
Available: Ships in 7-12 days. Add to View Price
#28 STOP SWITCH ASSY 13S-82530-00-00 Superseded by 13S-82530-01-00	$55.99
Available: Ships in 7-12 days. Add to View Price
#29 MAIN SWITCH STEERING LOCK 2C0-82501-10-00	$270.99
Available: Ships in 7-12 days. Add to View Price
#30 ENGINE CONTROL UNIT ASSY 13S-8591A-H0-00 Superseded by 13S-8591A-H1-00	$1,905.99
Unavailable
#31 BLANK KEY 4BH-82511-09-00	$26.99
Available: Ships in 7-12 days. Add to View Price
#32 WIRE, MINUS LEAD 2C0-82116-00-00	$15.99
Available: Ships in 7-12 days. Add to View Price
#33 BOLT 91380-06012-00	$2.99
Available: Ships in 7-12 days. Add to View Price
#34 BOLT 90109-08195-00 Superseded by 90109-08196-00	$5.99
Available: Ships in 7-12 days. Add to View Price
