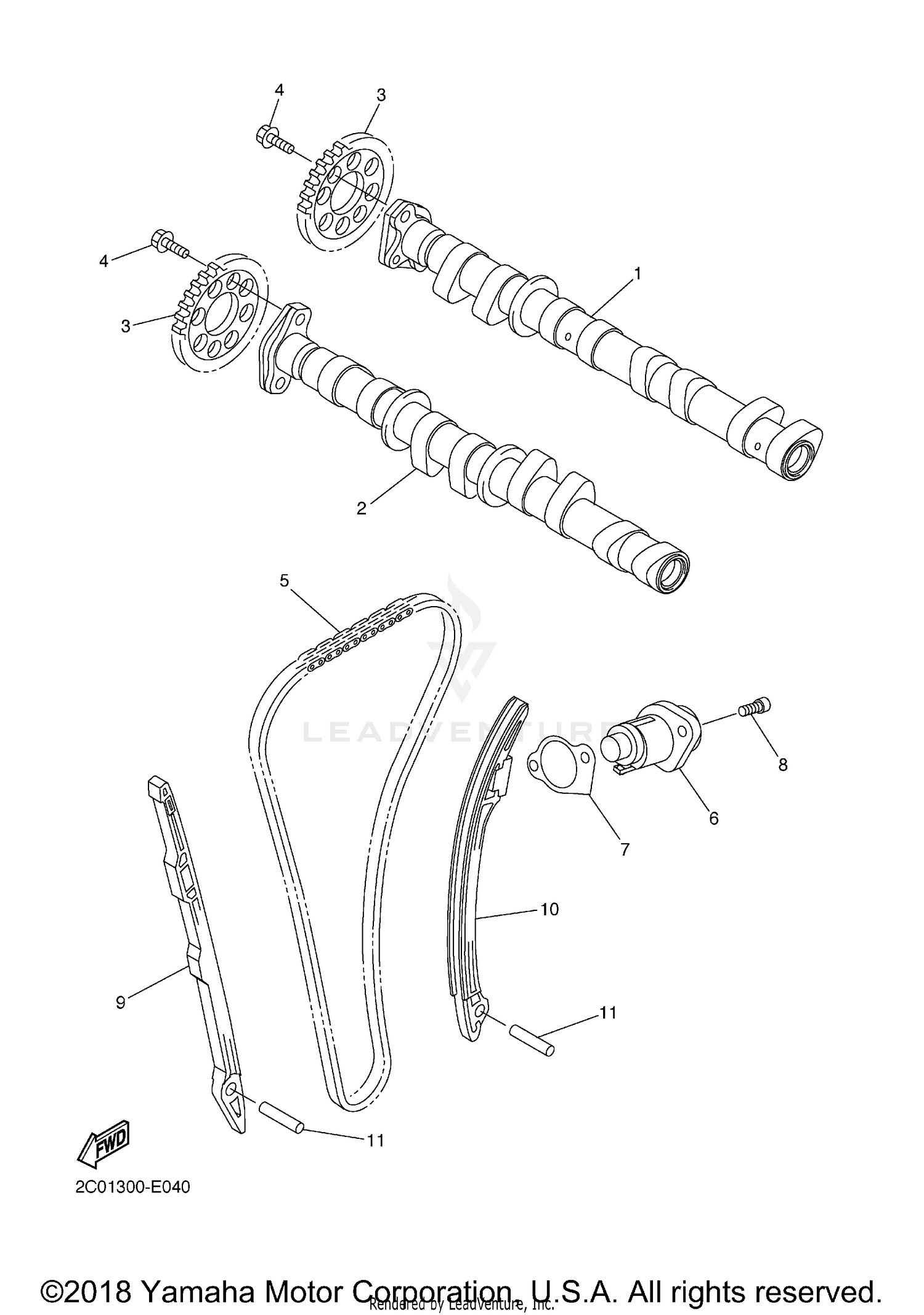

2013 Yamaha YZF R6 CAMSHAFT CHAIN OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 CAMSHAFT ASSY 1
13S-12170-01-00
$364.99
Available: Ships in 7-12 days.
Add to View Price
#2 CAMSHAFT ASSY 2
13S-12180-01-00
$364.99
Available: Ships in 7-12 days.
Add to View Price
#3 SPROCKET, CAM CHAIN
2C0-12176-00-00
$74.99
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, FLANGE
90105-07004-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 CHAIN
94591-64118-00
$61.99
Available: Ships in 7-12 days.
Add to View Price
#6 TENSIONER ASSY, CAM CHAIN
13S-12210-01-00
Superseded by 13S-12210-02-00
$171.99
Unavailable
#7 GASKET, TENSIONER CASE
2C0-12213-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#8 BOLT, HEXAGON SOCKET HEAD
90110-06106-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 DAMPER, CHAIN 1
2C0-12251-00-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#10 DAMPER, CHAIN 2
13S-12252-00-00
$86.99
Available: Ships in 7-12 days.
Add to View Price
#11 PIN, DOWEL
93607-44002-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
