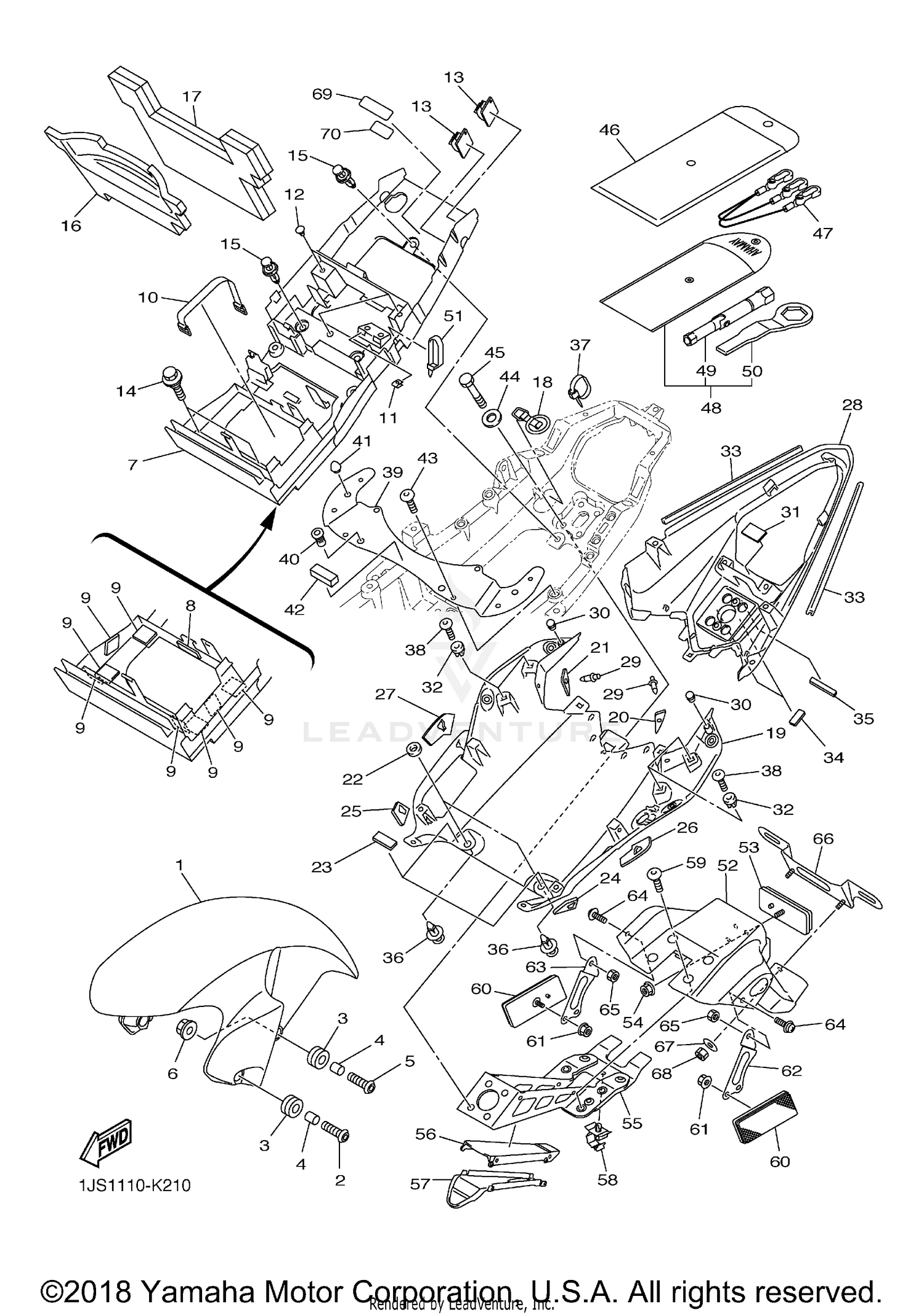

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2C0-21511-00-P9
Superseded by 2C0-21511-01-P9
|
$134.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
2C0-21511-00-P1
Superseded by 2C0-21511-01-P1
|
$198.99 | ||
|
Unavailable |
|||
|
#
fender front
2C0-21511-00-PB
Superseded by 2C0-21511-01-PB
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEX. SOCKET BUTTON
90111-06043-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GROMMET
90480-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06057-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX. SOCKET BUTTON
90111-06030-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, FLANGE
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOX, BATTERY 1
13S-8212B-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 2
51Y-21639-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
13S-21649-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, BATTERY
133-82131-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-04039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-13185-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-06171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET
90269-07010-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR
13S-21652-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER PLATE ASSY
13S-24140-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, TOOL
13S-21376-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FENDER, REAR
13S-21611-00-P0
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, REAR
13S-21611-00-P1
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, REAR
13S-21611-00-P9
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT
13S-2172P-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT 2
13S-2173P-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL 2
13S-21735-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE
4D9-21717-00-00
Superseded by 90520-02014-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL
13S-21669-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, 2
13S-216A2-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, 3
13S-216A3-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL, 4
13S-216A4-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FENDER 2
13S-2162R-00-P3
|
$205.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
FENDER 2
13S-2162R-00-P8
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER 2
13S-2162R-00-P7
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET
90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
PLATE 1
5GM-27445-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
GROMMET
90480-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL 1
13S-21732-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAL 1
13S-21575-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL 4
13S-2173N-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#37
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET
13S-21131-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
90179-06010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
DAMPER
5YT-24665-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, BUTTON HEAD
90111-06104-00
Superseded by 92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPECIAL 1
13S-21615-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
90101-06056-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
TOOL KIT
2C0-28100-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
HELMET HANGER ASSY
2C0-21370-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TOOL KIT 2
2C0-28110-00-00
Superseded by 2C0-28110-01-00
|
$49.99 | ||
|
Unavailable |
|||
|
#49
BOX, SPARK PLUG
4XV-2814F-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPANNER, SPECIAL
4FM-28135-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP
90465-13M11-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GUARD, MUD
2C0-21629-11-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
REAR STAY COMP.
13S-21640-00-00
|
$176.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
COVER, REAR FENDER 1
2C0-2163A-00-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
COVER, REAR FENDER 2
2C0-2163E-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
90464-14228-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
BOLT
90109-06182-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#61
NUT, FLANGE
95702-05500-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
BRACKET, REAR STAY
2C0-21688-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET, REAR STAY 2
2C0-21689-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SCREW, WITH WASHER
90159-06011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
BRACKET, LICENSE
5MT-84751-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
Unavailable |
|||
|
#69
LABEL, CAUTION
3JJ-28446-A1-00
Superseded by 3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#70
LABEL, CAUTION
3TB-24877-A0-00
Superseded by 3TB-24877-A1-00
|
$5.99 | ||
|
Unavailable |
|||
