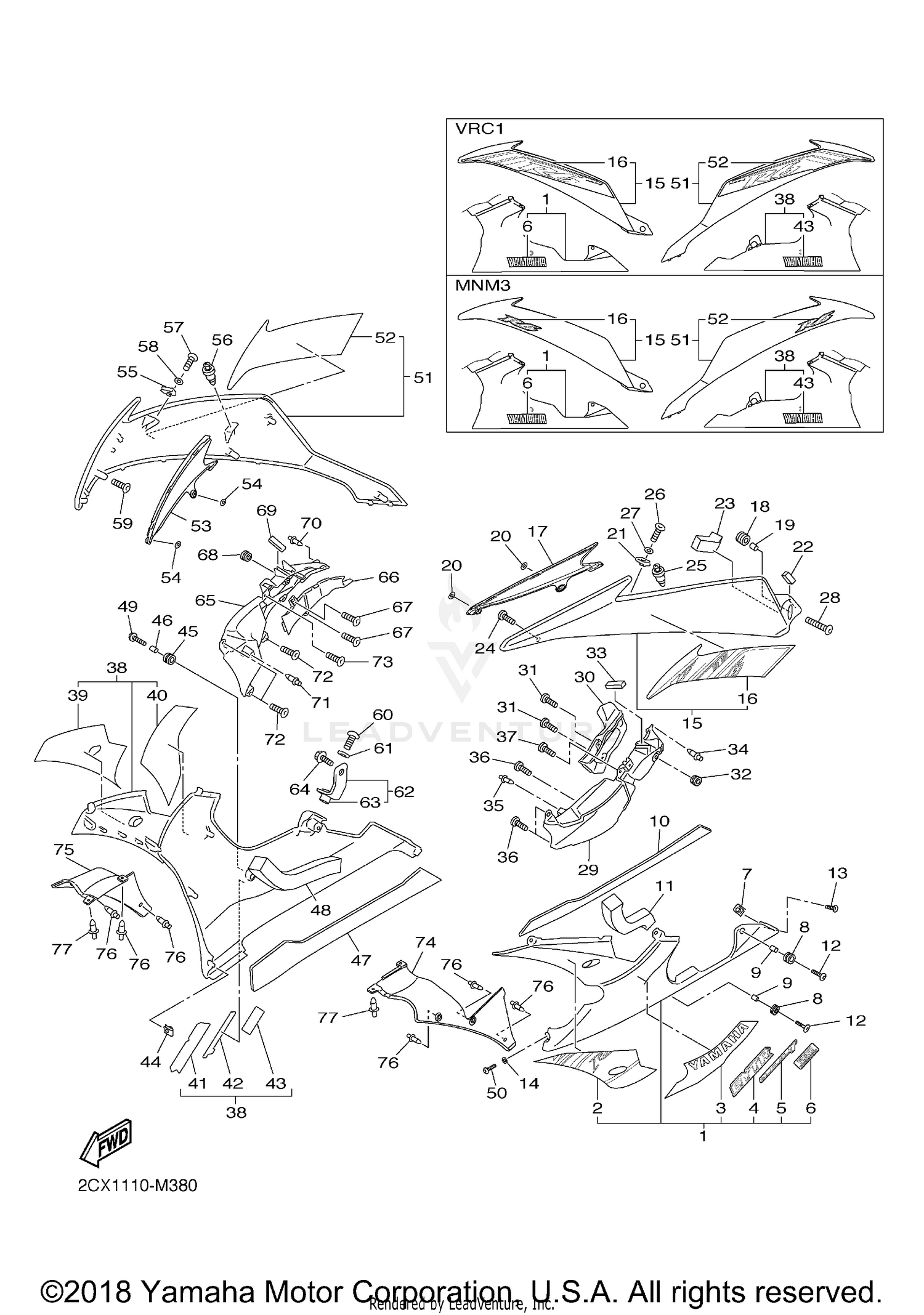

2013 Yamaha YZF R6 COWLING 2 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 UNDER COVER COMP. 1
13S-W2838-G0-P3
$295.99
Available: Ships in 7-12 days.
Add to View Price
#1 UNDER COVER COMP. 1
13S-W2838-H0-P3
$294.99
Available: Ships in 7-12 days.
Add to View Price
#1 UNDER COVER COMP. 1
13S-W2838-J0-P0
$301.99
Available: Ships in 7-12 days.
Add to View Price
#2 GRAPHIC, UNDER COVER 1
1JS-283A1-50-00
$112.99
Available: Ships in 7-12 days.
Add to View Price
#3 GRAPHIC, UNDER COVER 3
1JS-283A3-10-00
$51.99
Available: Ships in 7-12 days.
Add to View Price
#4 EMBLEM, 1
1KB-2834C-10-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#5 EMBLEM 2
1KB-2835C-10-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#6 EMBLEM, YAMAHA
99244-00280-00
$18.49
Available: Ships in 7-12 days.
Add to View Price
#6 EMBLEM, YAMAHA
99247-00280-00
$14.99
In Stock: Ready to ship.
Add to View Price
#6 EMBLEM
1KB-28328-20-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#7 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#8 GROMMET
90480-14003-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 COLLAR
90387-06260-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 SEAT 1
13S-2838G-00-00
$32.99
Available: Ships in 7-12 days.
Add to View Price
#11 DAMPER, PLATE
90520-50002-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#13 BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
$0.65
Available: Ships in 7-12 days.
Add to View Price
#14 WASHER, PLATE
90202-05180-00
$6.49
In Stock: Ready to ship.
Add to View Price
#15 PANEL ASSY 1
13S-W283U-E0-P9
$314.99
Available: Ships in 7-12 days.
Add to View Price
#15 PANEL ASSY 1
13S-W283U-F0-P6
$314.99
Available: Ships in 7-12 days.
Add to View Price
#15 PANEL ASSY 1
13S-W283U-80-PA
Superseded by 13S-W283U-G0-PA
$351.99
Available: Ships in 7-12 days.
Add to View Price
#16 GRAPHIC 1
1JS-28391-70-00
$124.99
Available: Ships in 7-12 days.
Add to View Price
#16 GRAPHIC 1
1JS-28391-80-00
$133.99
Available: Ships in 7-12 days.
Add to View Price
#16 EMBLEM 3D
1JS-2839B-10-00
Superseded by 1JS-2839B-11-00
$67.99
Available: Ships in 7-12 days.
Add to View Price
#17 COVER 1
13S-28219-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#18 GROMMET
90480-14003-00
$6.49
Unavailable
#19 COLLAR
90387-06260-00
$6.49
Unavailable
#20 NUT, SPRING
90183-05M02-00
$1.30
In Stock: Ready to ship.
Add to View Price
#21 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#22 DAMPER 1
13S-28415-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#23 DAMPER, PLATE
90520-50001-00
$2.20
In Stock: Ready to ship.
Add to View Price
#24 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#25 RIVET
90269-07007-00
$3.30
In Stock: Ready to ship.
Add to View Price
#26 BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
$0.65
Unavailable
#27 WASHER, PLATE
90202-05180-00
$6.49
Unavailable
#28 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
Unavailable
#29 GUIDE, AIR 1
13S-2137U-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#30 GUIDE, AIR 3
13S-2137K-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#31 SCREW, TAPPING
97702-50016-00
$2.20
In Stock: Ready to ship.
Add to View Price
#32 GROMMET
90480-01558-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#33 DAMPER 1
13S-28217-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#34 RIVET
90269-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 RIVET
90269-06081-00
$6.49
In Stock: Ready to ship.
Add to View Price
#36 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Unavailable
#37 SCREW, TAPPING
97702-50020-00
Superseded by 90167-05078-00
$6.49
In Stock: Ready to ship.
Add to View Price
#38 UNDER COVER COMP. 2
13S-W2839-G0-P3
$294.99
Available: Ships in 7-12 days.
Add to View Price
#38 UNDER COVER COMP. 2
13S-W2839-H0-P3
$294.99
Available: Ships in 7-12 days.
Add to View Price
#38 UNDER COVER COMP. 2
13S-W2839-J0-P0
$294.99
Available: Ships in 7-12 days.
Add to View Price
#39 GRAPHIC, UNDER COVER 2
1JS-283A2-50-00
$113.99
Available: Ships in 7-12 days.
Add to View Price
#40 GRAPHIC, UNDER COVER 4
1JS-283A4-10-00
$47.99
Available: Ships in 7-12 days.
Add to View Price
#41 EMBLEM, 1
1KB-2834C-10-00
$16.49
Unavailable
#42 EMBLEM 2
1KB-2835C-10-00
$16.49
Unavailable
#43 EMBLEM, YAMAHA
99244-00280-00
$18.49
Unavailable
#43 EMBLEM, YAMAHA
99247-00280-00
$14.99
Unavailable
#43 EMBLEM
1KB-28328-20-00
$9.99
Unavailable
#44 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#45 GROMMET
90480-14003-00
$6.49
Unavailable
#46 COLLAR
90387-06260-00
$6.49
Unavailable
#47 SEAT 2
13S-2848K-00-00
$32.99
Available: Ships in 7-12 days.
Add to View Price
#48 DAMPER 10
13S-2847R-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#49 BOLT, HEX. SOCKET BUTTON
90111-06040-00
$3.30
Unavailable
#50 BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
$0.65
Unavailable
#51 PANEL ASSY 2
13S-W283V-E0-P9
$311.99
Available: Ships in 7-12 days.
Add to View Price
#51 PANEL ASSY 2
13S-W283V-F0-P6
$314.99
Available: Ships in 7-12 days.
Add to View Price
#51 PANEL ASSY 2
13S-W283V-80-PA
Superseded by 13S-W283V-G0-PA
$346.99
Available: Ships in 7-12 days.
Add to View Price
#52 EMBLEM 3D
1JS-2839B-10-00
Superseded by 1JS-2839B-11-00
$67.99
Unavailable
#52 GRAPHIC 2
1JS-28392-70-00
$131.99
Available: Ships in 7-12 days.
Add to View Price
#52 GRAPHIC 2
1JS-28392-80-00
$136.99
Available: Ships in 7-12 days.
Add to View Price
#53 COVER 2
13S-28229-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#54 NUT, SPRING
90183-05M02-00
$1.30
Unavailable
#55 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#56 RIVET
90269-07007-00
$3.30
Unavailable
#57 BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
$0.65
Unavailable
#58 WASHER, PLATE
90202-05180-00
$6.49
Unavailable
#59 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Unavailable
#60 BOLT
90109-06207-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#61 WASHER, PLATE
90202-10024-00
$6.15
Available: Ships in 7-12 days.
Add to View Price
#62 BRACKET 4
13S-2836G-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#63 NUT
90179-06059-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#64 BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
$5.99
Available: Ships in 7-12 days.
Add to View Price
#65 GUIDE, AIR 2
13S-2137V-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#66 GUIDE, AIR 4
13S-2137L-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#67 SCREW, TAPPING
97702-50016-00
$2.20
Unavailable
#68 GROMMET
90480-01558-00
$3.30
Unavailable
#69 DAMPER 1
13S-28217-00-00
$6.49
Unavailable
#70 RIVET
90269-06008-00
$6.49
Unavailable
#71 RIVET
90269-06081-00
$6.49
Unavailable
#72 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Unavailable
#73 SCREW, TAPPING
97702-50020-00
Superseded by 90167-05078-00
$6.49
Unavailable
#74 PANEL, INNER 2
13S-2836L-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#75 PANEL, INNER 3
13S-2836M-00-00
$31.99
Available: Ships in 7-12 days.
Add to View Price
#76 RIVET
90269-06008-00
$6.49
Unavailable
#77 RIVET
90269-06002-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
