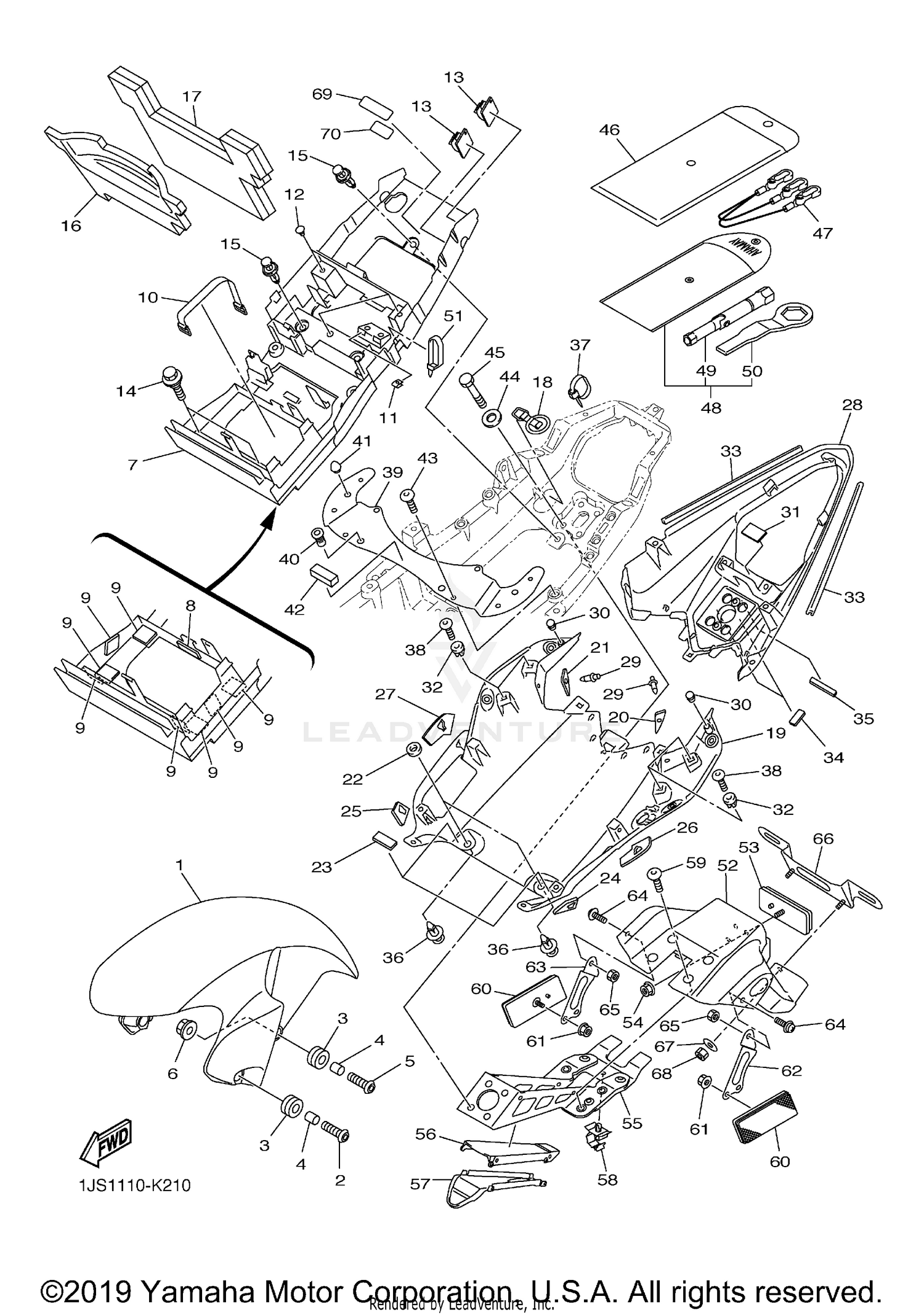

2012 Yamaha YZF R6 FENDER OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 FENDER, FRONT
2C0-21511-00-P0
Superseded by 2C0-21511-01-P0
$117.99
Available: Ships in 7-12 days.
Add to View Price
#1 FENDER, FRONT
2C0-21511-00-P2
Superseded by 2C0-21511-01-P2
$193.99
Available: Ships in 7-12 days.
Add to View Price
#2 BOLT, HEXAGON SOCKET BUTTON
90111-06043-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#3 GROMMET
90480-14003-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 COLLAR
90387-06057-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 BOLT, HEXAGON SOCKET BUTTON
90111-06030-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#6 NUT, WITH WASHER
95702-06500-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#7 BOX, BATTERY 1
13S-8212B-00-00
$50.99
Available: Ships in 7-12 days.
Add to View Price
#8 DAMPER 2
51Y-21639-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 DAMPER
13S-21649-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#10 BAND, BATTERY
133-82131-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#11 NUT, spring
90183-04039-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#12 PLUG
90338-06018-00
Superseded by 90338-07180-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#13 CLAMP
90464-13185-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#14 BOLT
90109-06171-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#15 RIVET
90269-07010-00
$3.30
In Stock: Ready to ship.
Add to View Price
#16 PROTECTOR
13S-21652-00-00
$45.99
Available: Ships in 7-12 days.
Add to View Price
#17 DAMPER PLATE ASSY
13S-24140-00-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#18 BAND, TOOL
13S-21376-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#19 FENDER, REAR
13S-21611-00-P0
$143.99
Available: Ships in 7-12 days.
Add to View Price
#19 FENDER, REAR
13S-21611-00-P3
$143.99
Available: Ships in 7-12 days.
Add to View Price
#20 SEAT
13S-2172P-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#21 SEAT 2
13S-2173P-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#22 SEAL 2
13S-21735-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#23 DAMPER, PLATE
4D9-21717-00-00
Superseded by 90520-02014-00
$1.10
Available: Ships in 7-12 days.
Add to View Price
#24 SEAL
13S-21669-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#25 SEAL, 2
13S-216A2-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#26 SEAL, 3
13S-216A3-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#27 SEAL, 4
13S-216A4-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#28 FENDER 2
13S-2162R-00-P3
$142.99
Available: Ships in 7-12 days.
Add to View Price
#29 RIVET
90269-06001-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#30 PLUG
90338-06018-00
Superseded by 90338-07180-00
$6.49
Unavailable
#31 PLATE 1
5GM-27445-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#32 GROMMET
90480-08005-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 SEAL 1
13S-21732-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#34 SEAL 1
13S-21575-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#35 SEAL 4
13S-2173N-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#36 RIVET
90269-07010-00
$3.30
Unavailable
#37 CLAMP
90464-13073-00
Superseded by 90464-15195-00
$3.30
In Stock: Ready to ship.
Add to View Price
#38 SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#39 BRACKET
13S-21131-00-00
$63.99
Available: Ships in 7-12 days.
Add to View Price
#40 NUT
90179-06010-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#41 PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
$5.49
Unavailable
#42 DAMPER
5YT-24665-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#43 BOLT, BUTTON HEAD
90111-06104-00
Superseded by 92012-06016-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#44 WASHER, SPECIAL 1
13S-21615-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#45 BOLT
90101-06056-00
Superseded by 97017-06025-00
$3.30
In Stock: Ready to ship.
Add to View Price
#46 TOOL KIT
2C0-28100-00-00
$70.99
Available: Ships in 7-12 days.
Add to View Price
#47 HELMET HANGER ASSY
2C0-21370-00-00
$38.99
Available: Ships in 7-12 days.
Add to View Price
#48 TOOL KIT, 2
2C0-28110-00-00
$52.99
Available: Ships in 7-12 days.
Add to View Price
#49 BOX, SPARK PLUG
4XV-2814F-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#50 SPANNER, SPECIAL
4FM-28135-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#51 CLAMP
90465-13M11-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#52 GUARD, MUD
2C0-21629-11-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#53 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Available: Ships in 7-12 days.
Add to View Price
#54 NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#55 REAR STAY COMP.
13S-21640-00-00
$189.99
In Stock: Ready to ship.
Add to View Price
#56 COVER, REAR FENDER 1
2C0-2163A-00-00
$11.99
In Stock: Ready to ship.
Add to View Price
#57 COVER, REAR FENDER 2
2C0-2163E-00-00
$11.99
In Stock: Ready to ship.
Add to View Price
#58 CLAMP
90464-14228-00
$3.80
Available: Ships in 7-12 days.
Add to View Price
#59 BOLT
90109-06182-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#60 REAR REFLECTOR ASSY
3Y6-85130-02-00
$19.99
Unavailable
#61 NUT, WITH WASHER
95702-05500-00
$0.30
In Stock: Ready to ship.
Add to View Price
#62 BRACKET, REAR STAY
2C0-21688-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#63 BRACKET, REAR STAY 2
2C0-21689-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#64 SCREW, WITH WASHER
90159-06011-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#65 NUT, U
95602-06100-00
Superseded by 95617-06100-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#66 BRACKET, LICENSE
5MT-84751-00-00
$22.99
Available: Ships in 7-12 days.
Add to View Price
#67 WASHER, PLATE
90201-06057-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#68 NUT, U
95602-06100-00
Superseded by 95617-06100-00
$6.49
Unavailable
#69 LABEL, CAUTION
3JJ-28446-A1-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#70 LABEL, CAUTION
3TB-24877-A0-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
