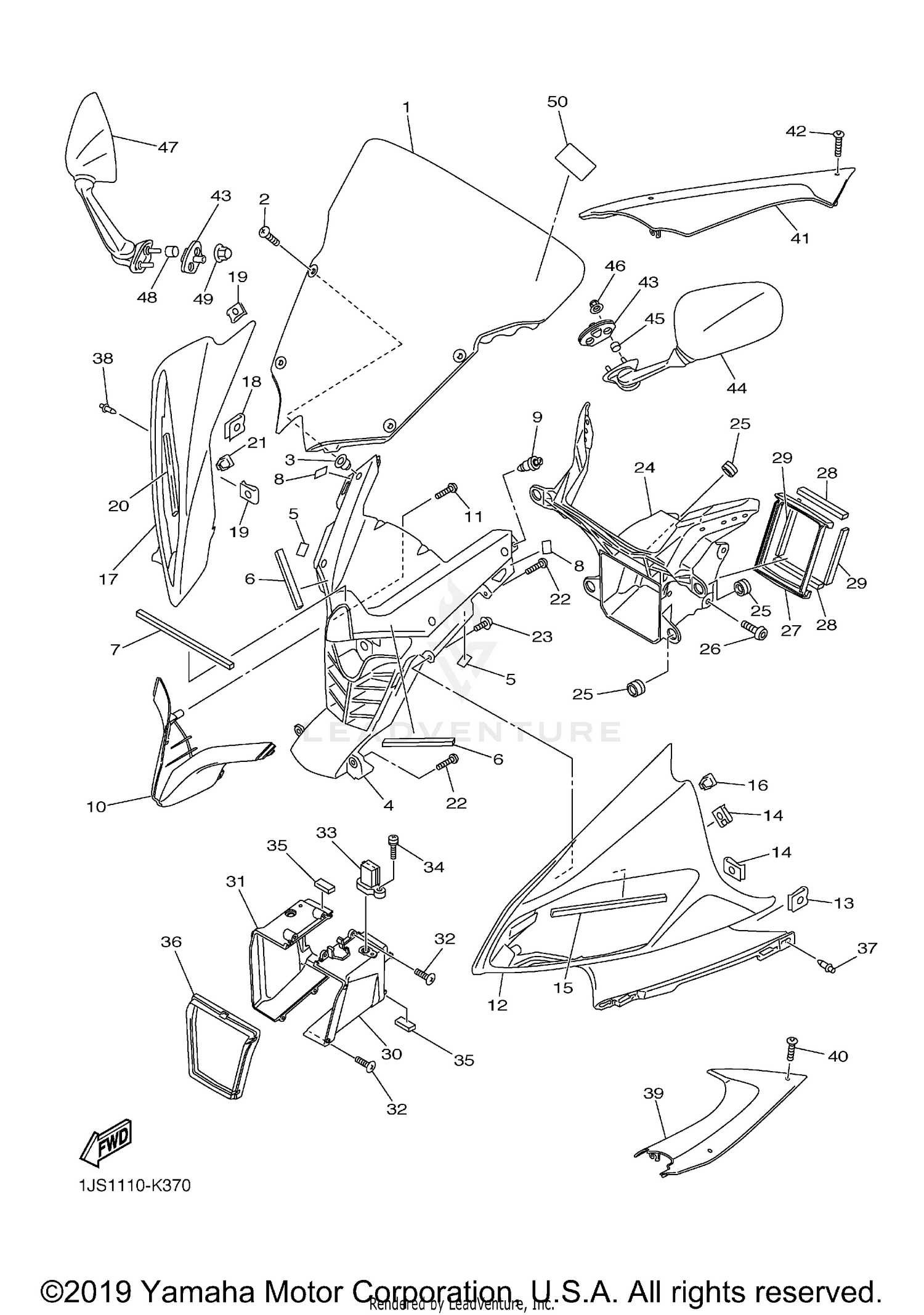

2012 Yamaha YZF R6 COWLING 1 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 WINDSHIELD
13S-28381-10-00
$64.99
Available: Ships in 7-12 days.
Add to View Price
#2 SCREW, ROUND HEAD
90150-05023-00
$6.49
In Stock: Ready to ship.
Add to View Price
#3 NUT
90179-05523-00
$6.49
In Stock: Ready to ship.
Add to View Price
#4 PANEL, INNER 1
13S-2836K-00-00
$67.99
In Stock: Ready to ship.
Add to View Price
#5 DAMPER 1
3P6-28217-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#6 DAMPER 2
13S-28227-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#7 DAMPER 3
13S-28237-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#8 DAMPER
13S-28371-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#9 RIVET
90269-06046-00
Superseded by 90269-06001-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#10 COVER
13S-28365-10-00
$12.99
In Stock: Ready to ship.
Add to View Price
#11 SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#12 BODY, FRONT UPPER 1
13S-2835G-00-P0
$263.99
Available: Ships in 7-12 days.
Add to View Price
#12 BODY, FRONT UPPER 1
13S-2835G-00-P3
$252.99
In Stock: Ready to ship.
Add to View Price
#13 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#14 NUT, SPRING
90183-05042-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#15 DAMPER, 4
2C0-28455-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 GROMMET
90480-01605-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#17 BODY, FRONT UPPER 2
13S-2835H-00-P3
$245.99
Available: Ships in 7-12 days.
Add to View Price
#17 BODY, FRONT UPPER 2
13S-2835H-00-P0
$254.99
Available: Ships in 7-12 days.
Add to View Price
#18 NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
$6.49
Unavailable
#19 NUT, SPRING
90183-05042-00
$6.49
Unavailable
#20 DAMPER, 4
2C0-28455-00-00
$6.49
Unavailable
#21 GROMMET
90480-01605-00
$6.49
Unavailable
#22 SCREW, TRUSS HEAD TAPPING
97707-50016-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#23 SCREW, TAPPING
97707-40012-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#24 STAY 1
13S-28356-00-00
$364.99
In Stock: Ready to ship.
Add to View Price
#25 DAMPER
4XV-83513-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#26 BOLT, HEX. SOCKET BUTTON
90111-06116-00
$6.49
In Stock: Ready to ship.
Add to View Price
#27 JOINT
2C0-28342-01-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#28 DAMPER 1
2C0-28217-00-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#29 DAMPER 2
2C0-28227-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#30 DUCT 2
13S-2838R-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#31 DUCT 3
13S-2838T-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#32 SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
$6.49
Unavailable
#33 SENSOR, AIR TEMPERATURE
8FP-85886-00-00
$41.99
Available: Ships in 7-12 days.
Add to View Price
#34 SCREW, TAPPING
97702-50116-00
Superseded by 97780-50116-00
$2.99
Available: Ships in 7-12 days.
Add to View Price
#35 DAMPER 2
51Y-21639-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#36 DAMPER
2C0-28371-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#37 RIVET
90269-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#38 RIVET
90269-06008-00
$6.49
Unavailable
#39 PANEL, CONSOLE 1
13S-2837L-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#40 BOLT, HEX. SOCKET BUTTON
90111-05021-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#41 PANEL, CONSOLE 2
13S-2837M-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#42 BOLT, HEX. SOCKET BUTTON
90111-05021-00
$6.49
Unavailable
#43 PLATE, MIRROR FITTING 1
13S-26298-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#44 REAR VIEW MIRROR ASSY (LEFT)
13S-26280-10-00
$101.99
Available: Ships in 7-12 days.
Add to View Price
#45 COLLAR
90387-064T3-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#46 NUT, CROWN
90176-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#47 REAR VIEW MIRROR ASSY (RIGHT)
13S-26290-10-00
$96.99
Available: Ships in 7-12 days.
Add to View Price
#48 COLLAR
90387-064T3-00
$6.49
Unavailable
#49 NUT, CROWN
90176-06008-00
$6.49
Unavailable
#50 LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
$2.99
Available: Ships in 7-12 days.
Add to View Price
