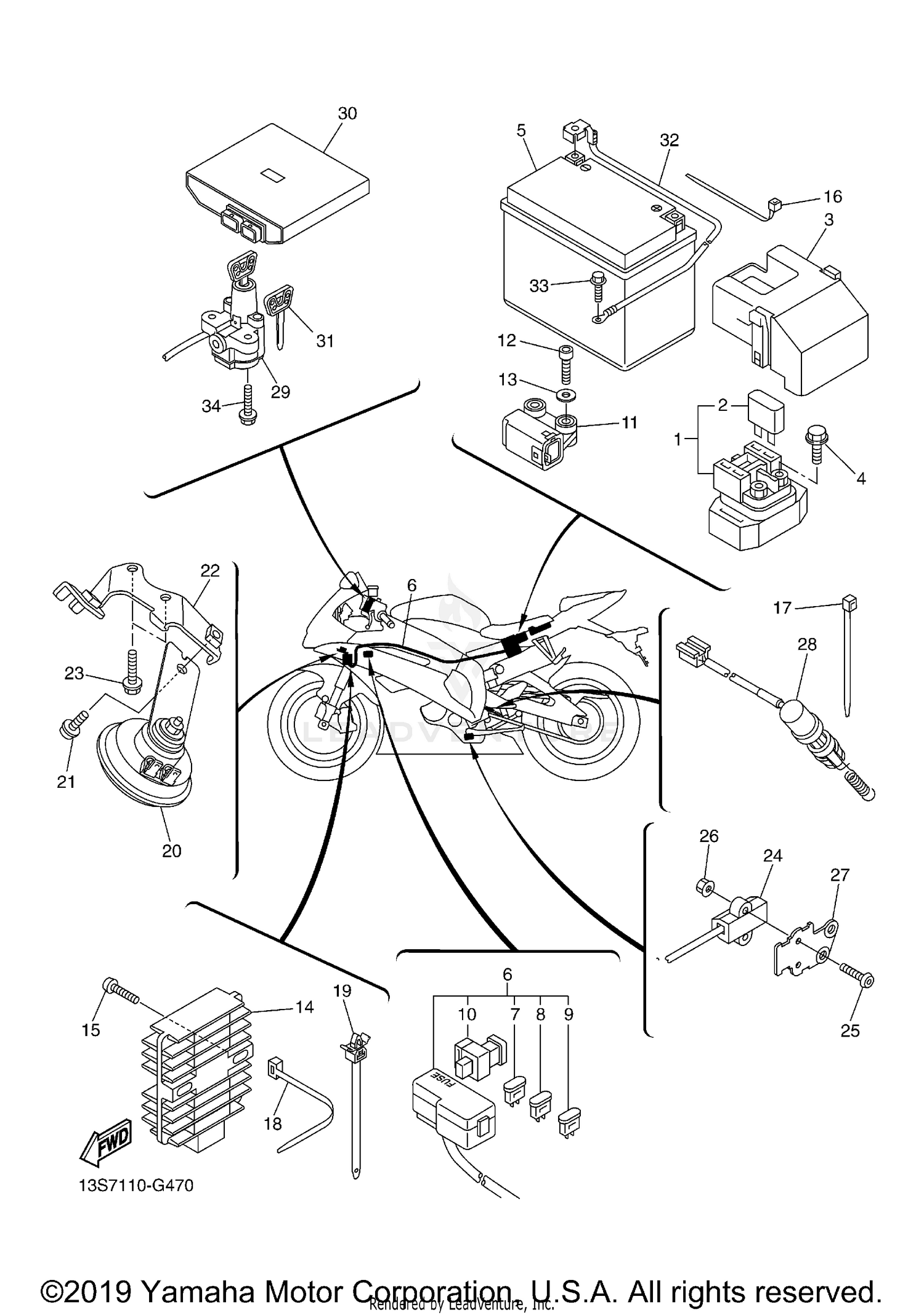

2012 Yamaha YZF R6 ELECTRICAL 2 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 STARTER RELAY ASSY (RC19-054)
2C0-81940-00-00
$134.99
Available: Ships in 7-12 days.
Add to View Price
#2 FUSE (15A-BLUE)
36Y-82151-00-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#3 COVER, LEAD WIRE
5SL-82119-10-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#4 BOLT, FLANGE
95022-06008-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#5 YTZ10S YUASA BATTER
5VY-82100-00-00
Superseded by YTZ-10S00-00-00
$247.99
Available: Ships in 7-12 days.
Add to View Price
#6 WIRE HARNESS ASSY
13S-82590-10-00
Superseded by 13S-82590-11-00
$773.99
Unavailable
#7 FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
$3.40
Available: Ships in 7-12 days.
Add to View Price
#8 FUSE (7.5A-BL)
5JJ-82151-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#9 FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
$8.99
Available: Ships in 7-12 days.
Add to View Price
#10 FUSE (50A)
5JW-82151-10-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#11 EMERGENCY STOP SWITCH ASSY
5PS-82576-01-00
$92.99
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT, HEX. SOCKET HEAD
91317-04025-00
$4.20
Available: Ships in 7-12 days.
Add to View Price
#13 WASHER, PLATE
90201-042E0-00
$4.49
In Stock: Ready to ship.
Add to View Price
#14 RECTIFIER & REGULATOR ASSY
4XY-81960-00-00
$156.99
Available: Ships in 7-12 days.
Add to View Price
#15 BOLT, BUTTON HEAD
92012-06025-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#16 CLAMP
90465-15011-00
$2.00
Available: Ships in 7-12 days.
Add to View Price
#17 BAND
90464-32060-00
Superseded by 1UA-82591-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#18 CLAMP
90464-16061-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#19 CLAMP
90464-12036-00
Superseded by 90464-10112-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#20 HORN
4TH-83371-00-00
$41.99
Available: Ships in 7-12 days.
Add to View Price
#21 BOLT, FLANGE
95812-06012-00
$1.10
In Stock: Ready to ship.
Add to View Price
#22 BRACKET, HORN
13S-23377-00-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#23 BOLT, FLANGE
95822-06020-00
Superseded by 95817-06020-00
$3.30
In Stock: Ready to ship.
Add to View Price
#24 SWITCH, SIDE STAND
13S-82566-70-00
$93.99
Available: Ships in 7-12 days.
Add to View Price
#25 BOLT, BUTTON HEAD
92012-05025-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#26 NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#27 BRACKET, SENSOR 1
2C0-27961-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#28 STOP SWITCH ASSY
13S-82530-00-00
Superseded by 13S-82530-01-00
$51.99
Available: Ships in 7-12 days.
Add to View Price
#29 MAIN SWITCH STEERING LOCK
2C0-82501-10-00
$254.99
Available: Ships in 7-12 days.
Add to View Price
#30 ENGINE CONTROL UNIT ASSY
13S-8591A-H0-00
Superseded by 13S-8591A-H1-00
$1,797.99
Unavailable
#31 BLANK KEY
4BH-82511-09-00
$24.99
In Stock: Ready to ship.
Add to View Price
#32 WIRE, MINUS LEAD
2C0-82116-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#33 BOLT
91380-06012-00
$2.99
Available: Ships in 7-12 days.
Add to View Price
#34 BOLT
90109-08195-00
Superseded by 90109-08196-00
$6.49
In Stock: Ready to ship.
Add to View Price
