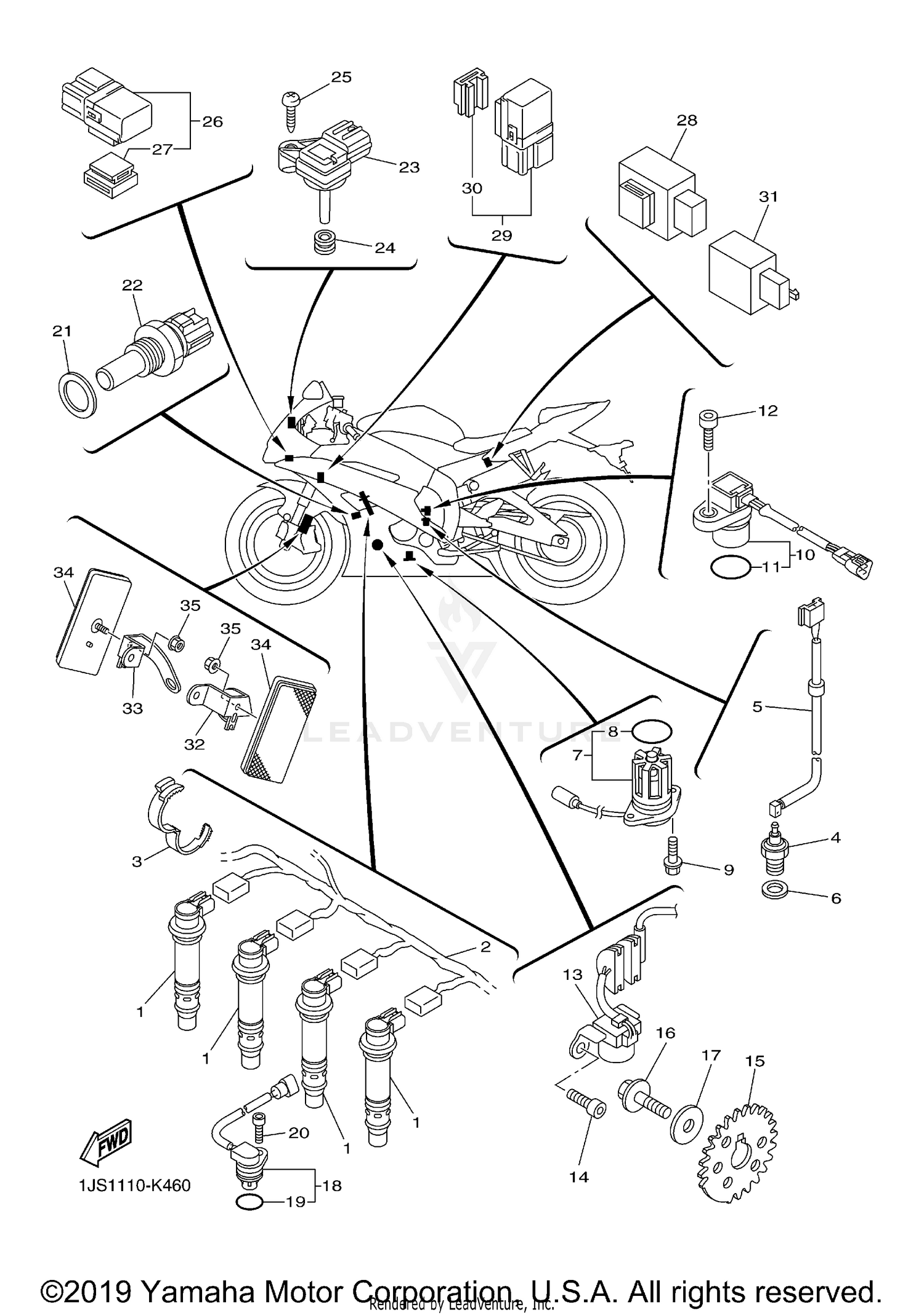

2012 Yamaha YZF R6 ELECTRICAL 1 OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 IGNITION COIL ASSY
13S-82310-00-00
$177.99
Available: Ships in 7-12 days.
Add to View Price
#2 WIRE, SUB LEAD
2C0-82309-00-00
$136.99
Available: Ships in 7-12 days.
Add to View Price
#3 CLAMP
90464-28003-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#4 NEUTRAL SWITCH ASSY
3GB-82540-01-00
$47.99
Available: Ships in 7-12 days.
Add to View Price
#5 WIRE, LEAD
2C0-82541-00-00
$10.99
Available: Ships in 7-12 days.
Add to View Price
#6 GASKET
90430-10148-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#7 OIL LEVEL GAUGE ASSY
5VX-85720-01-00
$180.99
Available: Ships in 7-12 days.
Add to View Price
#8 O-RING
5VY-8A8E0-00-00
$9.99
Available: Ships in 7-12 days.
Add to View Price
#9 BOLT, FLANGE
95022-06016-00
$3.30
In Stock: Ready to ship.
Add to View Price
#10 SENSOR, SPEED
4WM-83755-02-00
Superseded by 4WM-83755-03-00
$106.99
Available: Ships in 7-12 days.
Add to View Price
#11 O-RING
4D9-81168-00-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#12 BOLT, HEXAGON SOCKET HEAD
91312-06016-00
$6.49
In Stock: Ready to ship.
Add to View Price
#13 PICK-UP ASSY
2C0-81670-00-00
$134.99
Available: Ships in 7-12 days.
Add to View Price
#14 BOLT
90110-06168-00
Superseded by 91312-06014-00
$6.49
In Stock: Ready to ship.
Add to View Price
#15 ROTOR
2C0-81673-01-00
$34.99
Available: Ships in 7-12 days.
Add to View Price
#16 BOLT, FLANGE
90105-08113-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#17 WASHER, PLATE
90201-08054-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#18 SENSOR, CAM POSITION
5VY-85896-00-00
Superseded by 5VY-85896-02-00
$110.99
Available: Ships in 7-12 days.
Add to View Price
#19 O-RING
4D9-81168-00-00
$5.49
Unavailable
#20 BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
$1.10
In Stock: Ready to ship.
Add to View Price
#21 WASHER, PLATE
90201-12790-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#22 THERMOSENSOR ASSY
8CC-85790-01-00
$70.99
Available: Ships in 7-12 days.
Add to View Price
#23 SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
$152.99
Available: Ships in 7-12 days.
Add to View Price
#24 GROMMET
90480-08006-00
$3.30
Available: Ships in 7-12 days.
Add to View Price
#25 SCREW, TAPPING
97702-50120-00
Superseded by 97780-50620-00
$2.60
Available: Ships in 7-12 days.
Add to View Price
#26 RELAY ASSY (5JJ-20)
5JJ-81950-20-00
$39.99
Available: Ships in 7-12 days.
Add to View Price
#27 HOLDER, RELAY
5JJ-81952-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#28 RELAY ASSY (5VK-41)
5VK-81950-40-00
Superseded by 5VK-81950-41-00
$53.99
Available: Ships in 7-12 days.
Add to View Price
#29 RELAY ASSY (5EA-02)
5EA-81950-20-00
$46.99
Available: Ships in 7-12 days.
Add to View Price
#30 HOLDER, RELAY
5EA-81952-00-00
$6.49
In Stock: Ready to ship.
Add to View Price
#31 FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-02-00
$50.99
Available: Ships in 7-12 days.
Add to View Price
#32 BRACKET, REFLECTOR 1
13S-85112-00-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#33 BRACKET, REFLECTOR 2
13S-85122-00-00
$13.99
Available: Ships in 7-12 days.
Add to View Price
#34 REFLECTOR ASSY
11H-85110-01-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#35 NUT, WITH WASHER
95702-05500-00
$0.30
In Stock: Ready to ship.
Add to View Price
