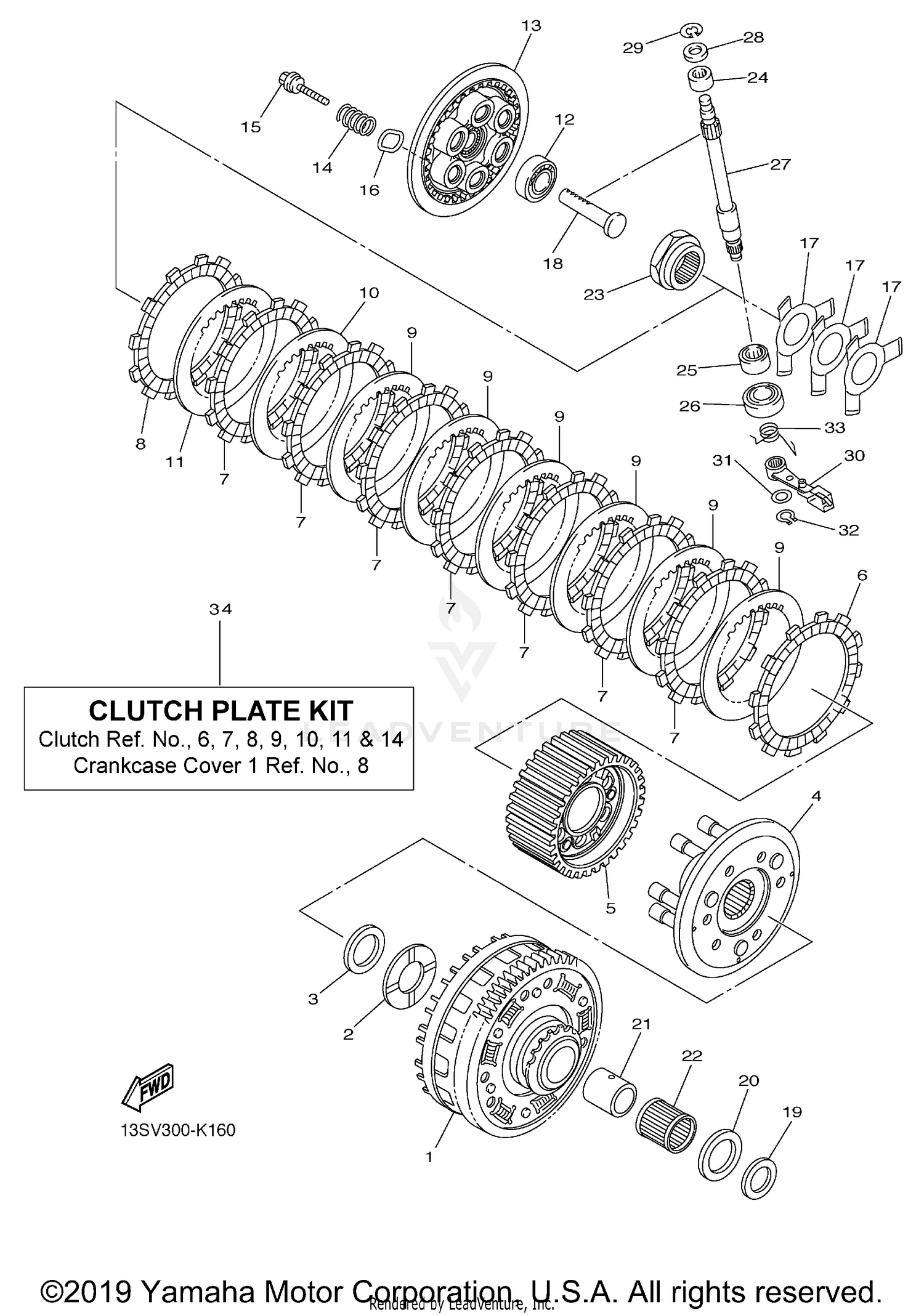

2012 Yamaha YZF R6 CLUTCH OEM Parts Diagram

Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 PRIMARY DRIVEN GEAR COMP.
2C0-16150-10-00
$644.99
Available: Ships in 7-12 days.
Add to View Price
#2 PLATE, THRUST 1
2C0-16154-00-00
$56.99
Available: Ships in 7-12 days.
Add to View Price
#3 WASHER, CONICAL SPRING
90208-25002-00
$9.49
Available: Ships in 7-12 days.
Add to View Price
#4 PRESSURE PLATE ASSY 2
13S-16360-00-00
$437.99
Available: Ships in 7-12 days.
Add to View Price
#5 CLUTCH BOSS ASSY
13S-16370-00-00
$311.99
Available: Ships in 7-12 days.
Add to View Price
#6 PLATE, FRICTION
5SL-16321-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#7 PLATE, FRICTION
5LV-16321-20-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#8 PLATE, FRICTION
4FN-16321-00-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#9 PLATE, CLUTCH 1 (T=2.0)
3J2-16324-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#10 PLATE, CLUTCH 1 (T=2.0)
3J2-16324-00-00
$16.49
Unavailable
#10 PLATE, CLUTCH 1 (T=2.3)
168-16324-00-00
$16.49
Available: Ships in 7-12 days.
Add to View Price
#11 PLATE, CLUTCH 1 (T=2.0)
3J2-16324-00-00
$16.49
Unavailable
#11 PLATE, CLUTCH 2 (T=1.6)
168-16325-00-00
$11.99
In Stock: Ready to ship.
Add to View Price
#11 PLATE, CLUTCH 1 (T=2.3)
168-16324-00-00
$16.49
Unavailable
#12 BEARING
93306-00106-00
Superseded by 93306-00105-00
$21.99
Available: Ships in 7-12 days.
Add to View Price
#13 PLATE, PRESSURE 1
2C0-16351-00-00
$129.99
Available: Ships in 7-12 days.
Add to View Price
#14 SPRING, COMPRESSION
90501-220A2-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#15 SCREW, WITH WASHER
90159-06024-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#16 PLATE, SEAT
2C0-16384-00-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#17 SPRING
2S3-16539-00-00
Superseded by 2S3-16539-01-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#18 ROD, PUSH 1
2C0-16356-00-00
$40.99
Available: Ships in 7-12 days.
Add to View Price
#19 PLATE, THRUST 2
2C0-16164-00-00
$8.49
Available: Ships in 7-12 days.
Add to View Price
#20 PLATE, THRUST 2
1AE-16164-00-00
$12.99
Available: Ships in 7-12 days.
Add to View Price
#21 COLLAR
90387-25024-00
$28.99
Available: Ships in 7-12 days.
Add to View Price
#22 BEARING
93310-340N8-00
$34.99
Available: Ships in 7-12 days.
Add to View Price
#23 NUT, LOCK
2C0-16377-00-00
$27.99
Available: Ships in 7-12 days.
Add to View Price
#24 BEARING
93317-11096-00
$20.99
Available: Ships in 7-12 days.
Add to View Price
#25 BEARING
93315-21570-00
$11.99
Available: Ships in 7-12 days.
Add to View Price
#26 OIL SEAL
93102-15212-00
$7.49
Available: Ships in 7-12 days.
Add to View Price
#27 AXLE, PUSH LEVER
2C0-16382-00-00
$64.99
Available: Ships in 7-12 days.
Add to View Price
#28 WASHER, PLATE
92907-08600-00
$3.30
In Stock: Ready to ship.
Add to View Price
#29 CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
$2.80
Available: Ships in 7-12 days.
Add to View Price
#30 PUSH LEVER ASSY
2C0-16340-00-00
$35.99
Available: Ships in 7-12 days.
Add to View Price
#31 WASHER, PLATE
90201-10029-00
$5.99
In Stock: Ready to ship.
Add to View Price
#32 CIRCLIP
99009-10400-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#33 SPRING, TORSION
90508-16052-00
$5.49
Available: Ships in 7-12 days.
Add to View Price
#34 CLUTCH PLATE KIT
2C0-W001G-00-00
$195.99
Available: Ships in 7-12 days.
Add to View Price
