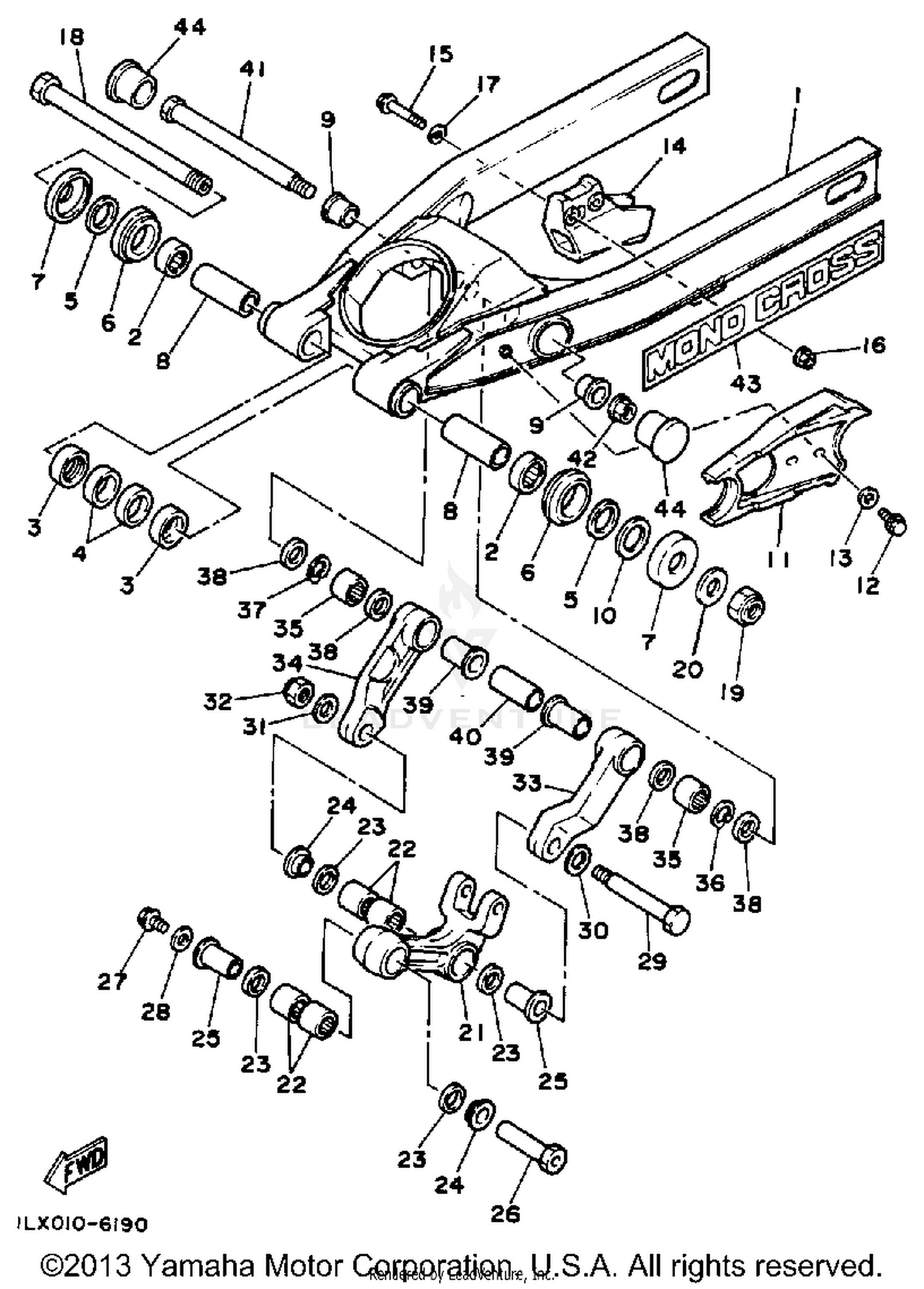

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1LV-22110-00-00
|
$518.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93317-32231-00
|
$48.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BUSH, SOLID
90380-22111-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING
93342-22208-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (35-41-8)
93108-35004-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER, THRUST 2
3R4-22129-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SOLID
90380-16158-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SOLID
90381-16060-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
SHIM
240-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, GUARD
1LX-22151-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUPPORT, CHAIN
39W-22199-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95811-08045-00
Superseded by 95814-08045-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, PIVOT
1LX-22141-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-164H4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
ARM, RELAY
1LX-2217A-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#22
BEARING, CYLINDER #15 (YT2015)
93315-32044-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-164N2-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-164N3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, UNION
90402-10005-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-106F2-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-14648-00
|
$28.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-164H4-00
|
$10.49 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-140H8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
90185-14070-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROD, CONNECTING 1
1LX-2217F-00-00
|
$51.33 | ||
|
Unavailable |
|||
|
#34
ROD, CONNECTIING 2
1LX-2217G-00-00
|
$49.06 | ||
|
Unavailable |
|||
|
#35
BEARING
93315-22045-00
Superseded by 93315-32057-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP, INNER
93450-28063-00
|
$3.50 | ||
|
Unavailable |
|||
|
#37
CIRCLIP, INNER
93450-28063-00
|
$3.50 | ||
|
Unavailable |
|||
|
#38
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$17.49 | ||
|
Unavailable |
|||
|
#39
COLLAR
90387-164N3-00
|
$20.99 | ||
|
Unavailable |
|||
|
#40
COLLAR
90387-164N1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#41
BOLT
90123-14104-00
|
$23.99 | ||
|
Unavailable |
|||
|
#42
NUT, SELF-LOCKING
95601-14200-00
Superseded by 95607-14200-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
EMBLEM, REAR ARM
5X3-2218A-00-00
|
$11.08 | ||
|
Unavailable |
|||
|
#44
COVER
1HX-2135F-00-00
Superseded by 1HX-2135F-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
