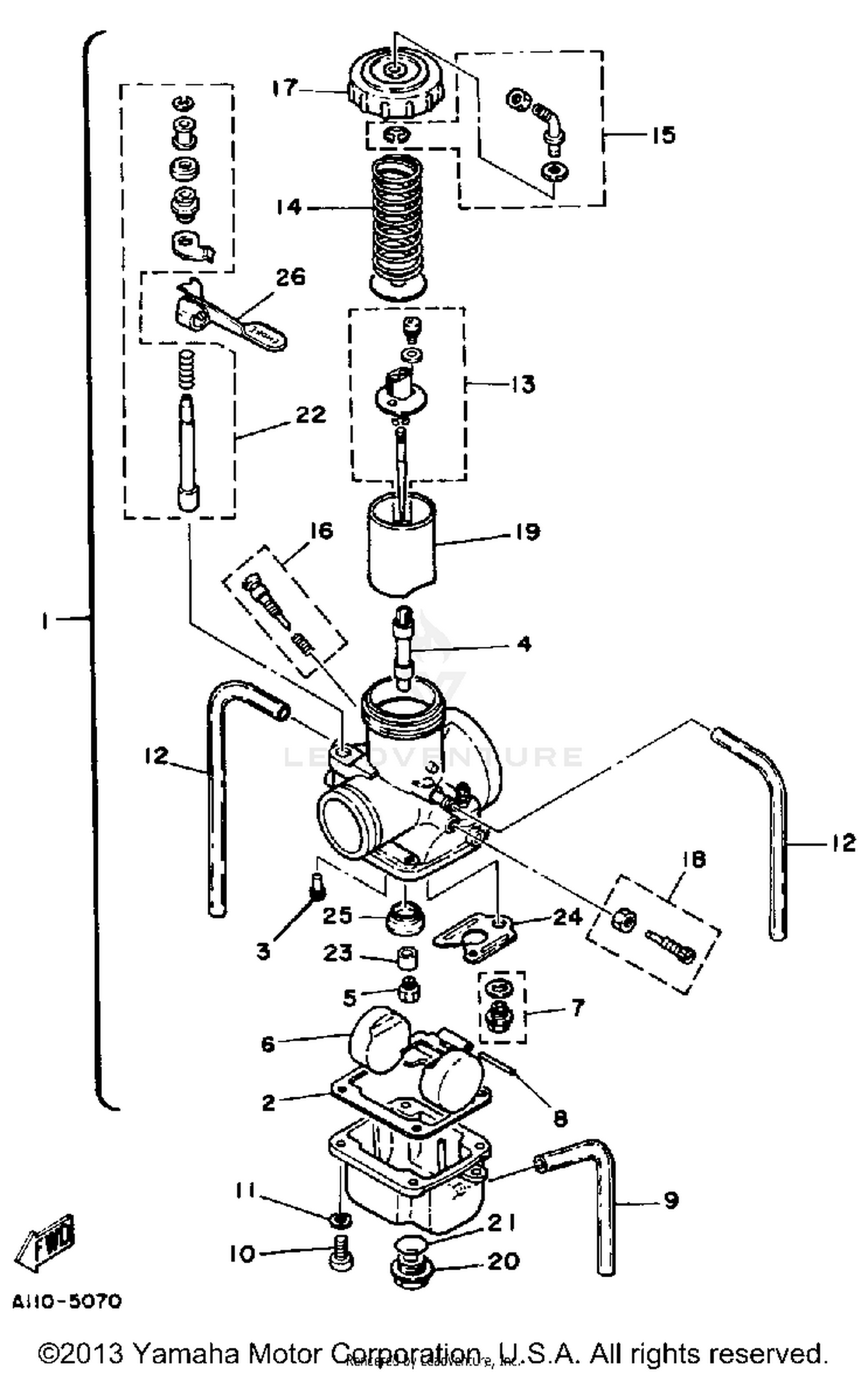

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
1LU-14101-00-00
|
$268.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT #40
193-14142-40-A1
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT 35
193-14142-35-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT (#45)
193-14142-45-A1
|
$6.99 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN
510-14141-54-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-56-00
|
$17.90 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-52-00
|
$23.94 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#320)
137-14143-64-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (350)
137-14143-70-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
JET, MAIN (360)
137-14143-72-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#340)
137-14143-68-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#330)
137-14143-66-A1
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
2N7-14185-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE VALVE SET
23X-14107-35-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE SET
23X-1490J-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ADJUST SCREW SET
23X-14106-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AIR SCREW SET
23X-14104-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOP, MIXING CHAMBER
5Y9-14158-00-00
|
$92.33 | ||
|
Unavailable |
|||
|
#18
THROTTLE SCREW SET
23X-14103-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE 1
2X8-14112-25-00
|
$102.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-35-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-30-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, SCREW
510-14115-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
558-14147-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER SET
26A-1410A-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, MAIN JET
5X5-14153-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#24
PLATE
3R4-14146-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SETTER, NEEDLE JET
509-14145-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#26
COVER, PLUNGER CAP (1W3-14173
1W3-14175-00-00
|
$18.49 | ||
|
Unavailable |
|||
