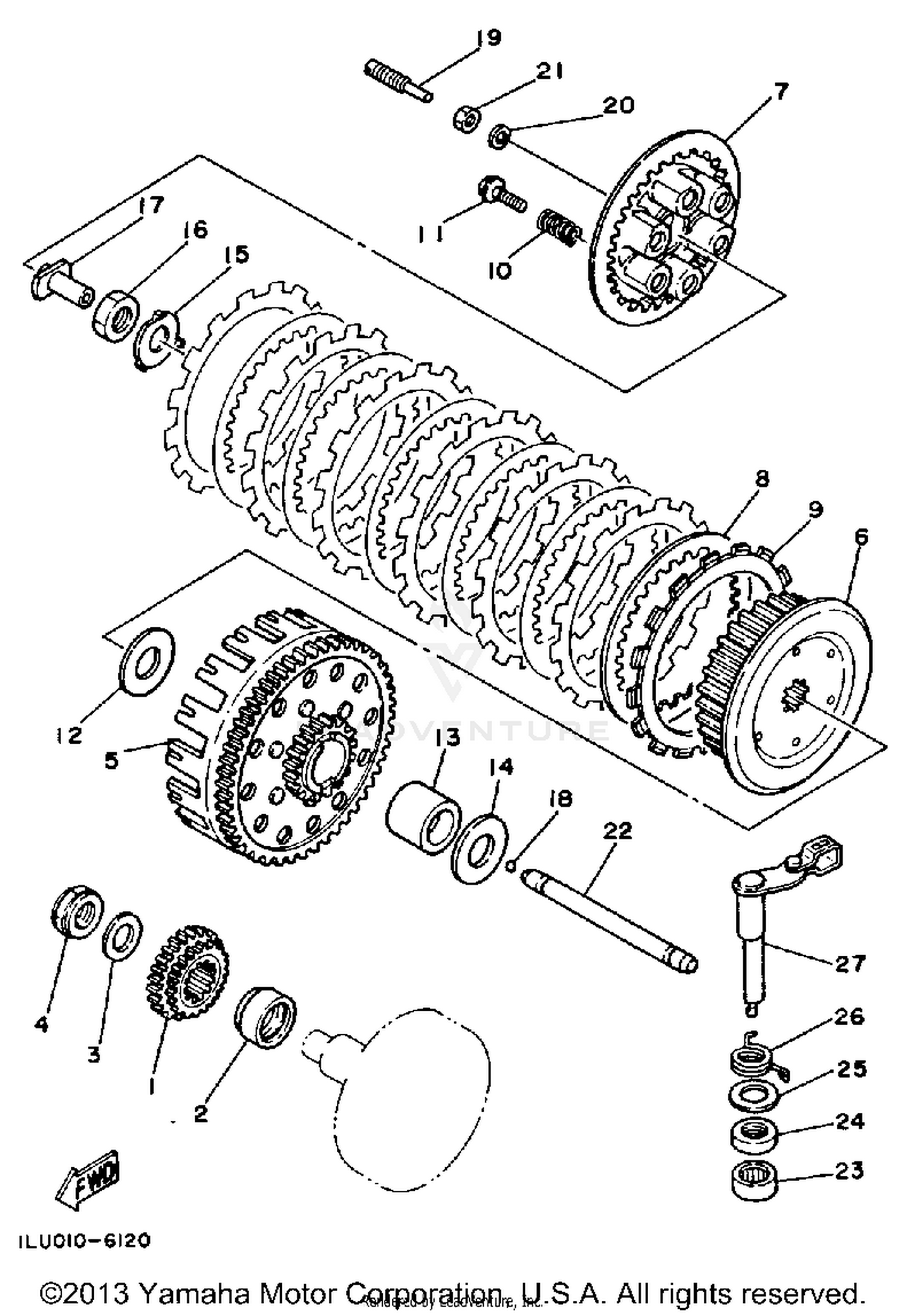

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR ASSEMBLY
24Y-16110-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-252F6-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-186H3-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-18126-00
|
$22.99 | ||
|
Unavailable |
|||
|
#5
PRIMARY DRIVEN GEAR COMP
39X-16150-00-00
|
$299.99 | ||
|
Unavailable |
|||
|
#6
BOSS, CLUTCH
23X-16371-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, PRESSURE 1
23X-16351-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
PLATE, FRICTION
5X5-16321-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-23346-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-06016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, THRUST 1
2K7-16154-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER 1
2K7-16181-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#14
PLATE, THRUST 1
2K7-16154-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#15
WASHER, LOCK
90215-20212-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-20255-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
23X-16356-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#18
BALL
93515-32029-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, SPECIAL SHAPE
90149-06178-00
|
$4.65 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ROD, PUSH 2
2K7-16357-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#23
BEARING, CYLINDRICAL
93315-21721-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-17263-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-14423-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PUSH LEVER ASSEMBLY
1LU-16380-00-00
|
$58.99 | ||
|
Unavailable |
|||
