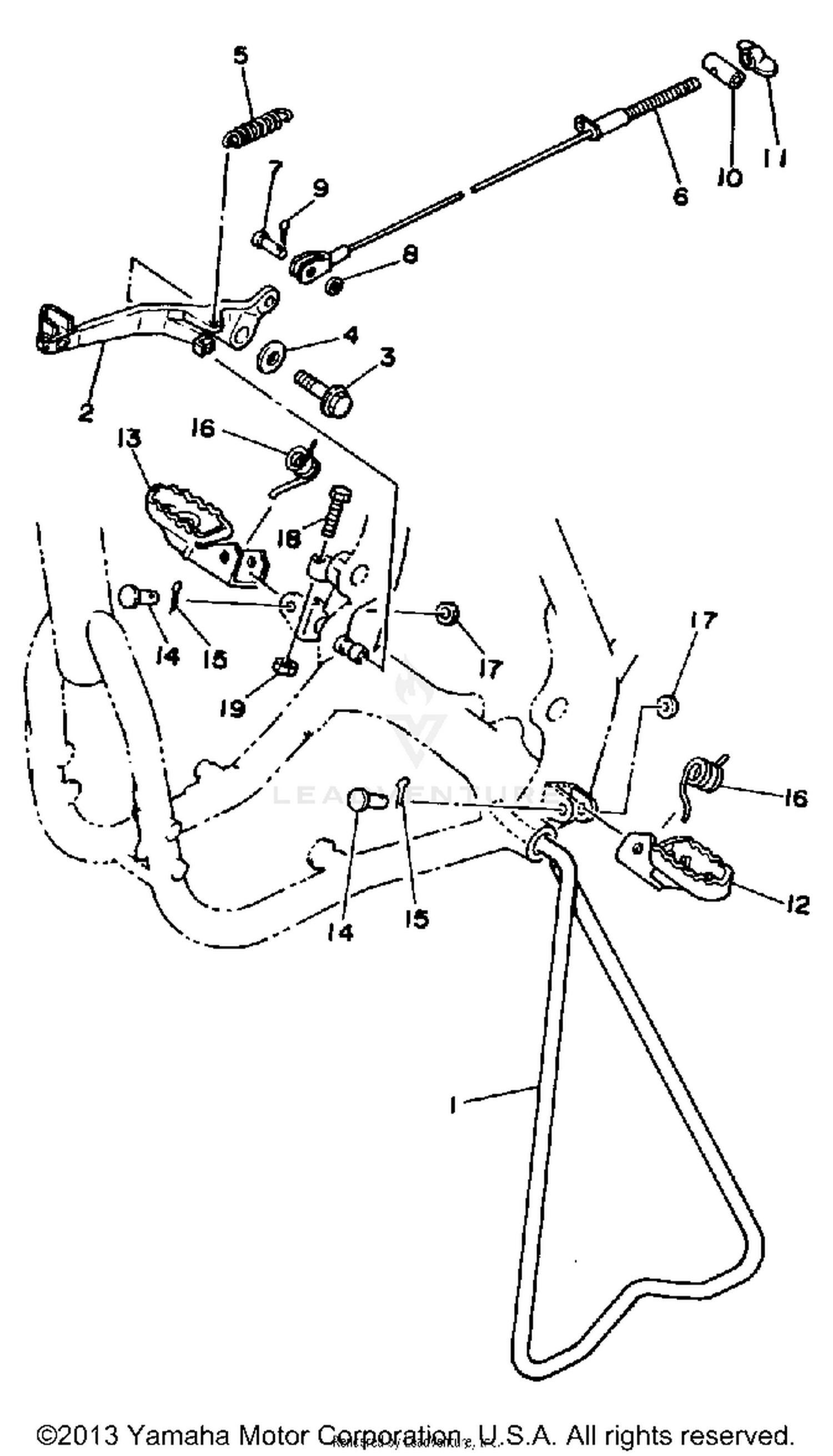

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
1LX-27311-00-00
Superseded by 4LB-27311-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#2
PEDAL, BRAKE
56A-27200-00-00
|
$97.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE (SMALL HEAD)
90105-08705-00
Superseded by 95024-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-16372-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, BRAKE
39X-26351-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CLEVIS
91790-08021-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WING
90175-06016-00
Superseded by 90175-06013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOOTREST 1
23X-27411-02-00
Superseded by 23X-27411-03-00
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FOOTREST 2
23X-27421-03-00
Superseded by 23X-27421-04-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, CLEVIS
90240-10101-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-20583-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-10119-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
