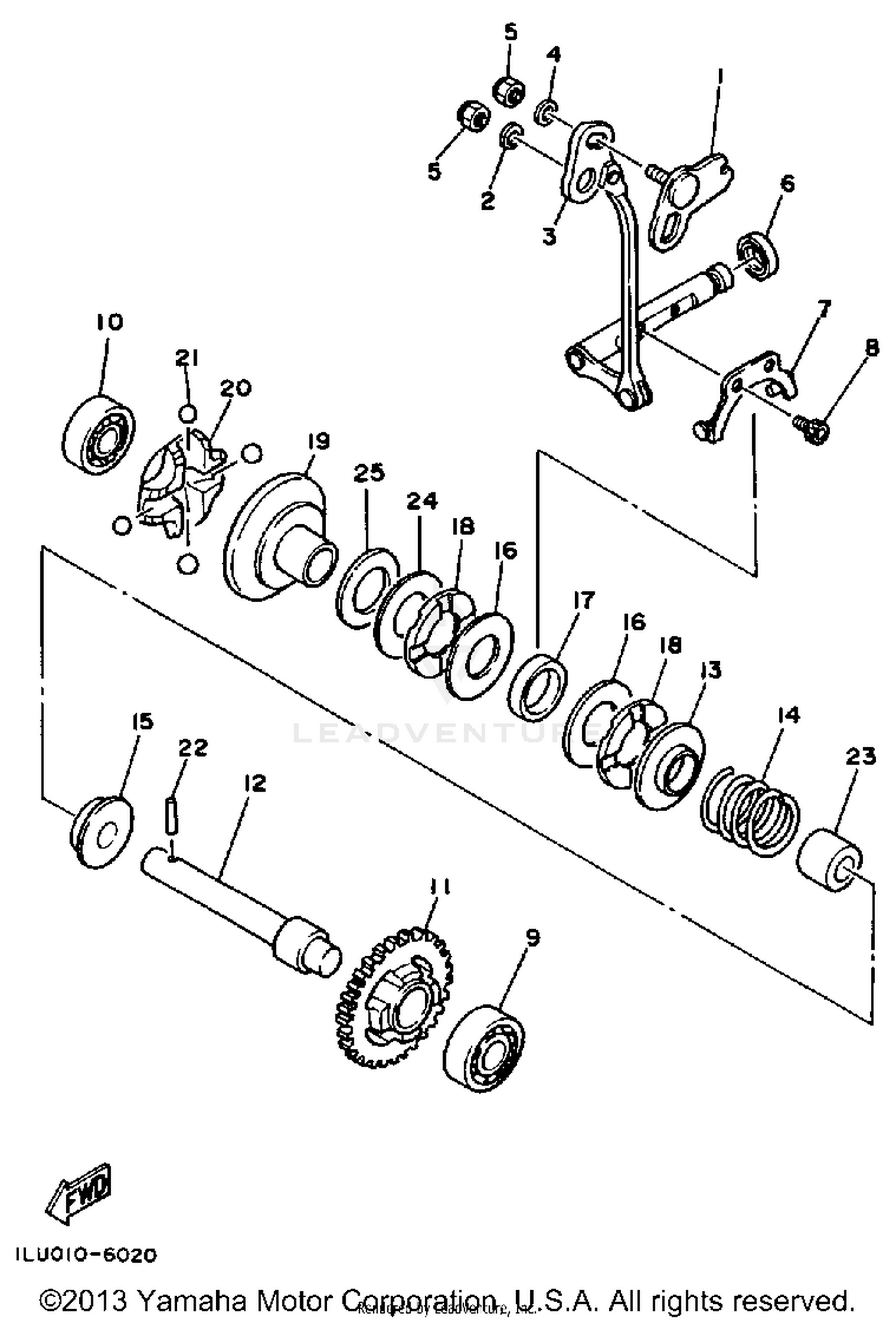

Governor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
1LU-11931-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-057H5-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PUSH ROD ASSEMBLY
1LU-11990-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93104-08040-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FORK, GOVERNOR
5X5-11922-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-04006-00
Superseded by 91317-04006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93300-60814-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, GOVERNOR (29T)
5X5-11953-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#12
SHAFT, GOVERNOR
5X5-11921-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#13
PLATE
5X5-11951-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
SPRING, COMPRESSION
90501-24745-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
PLATE
5X5-11952-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-154E9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-152F2-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, SOLID
90380-15104-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RETAINER, WEIGHT
5X5-11912-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RETAINER
5X5-11911-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BALL
93521-64032-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, DOWEL
93603-14179-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-083F4-00
|
$3.50 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-154E9-00
|
$10.49 | ||
|
Unavailable |
|||
|
#
WASHER, PLATE (T=0.8)
90201-154F5-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-154F6-00
|
$2.70 | ||
|
Unavailable |
|||
