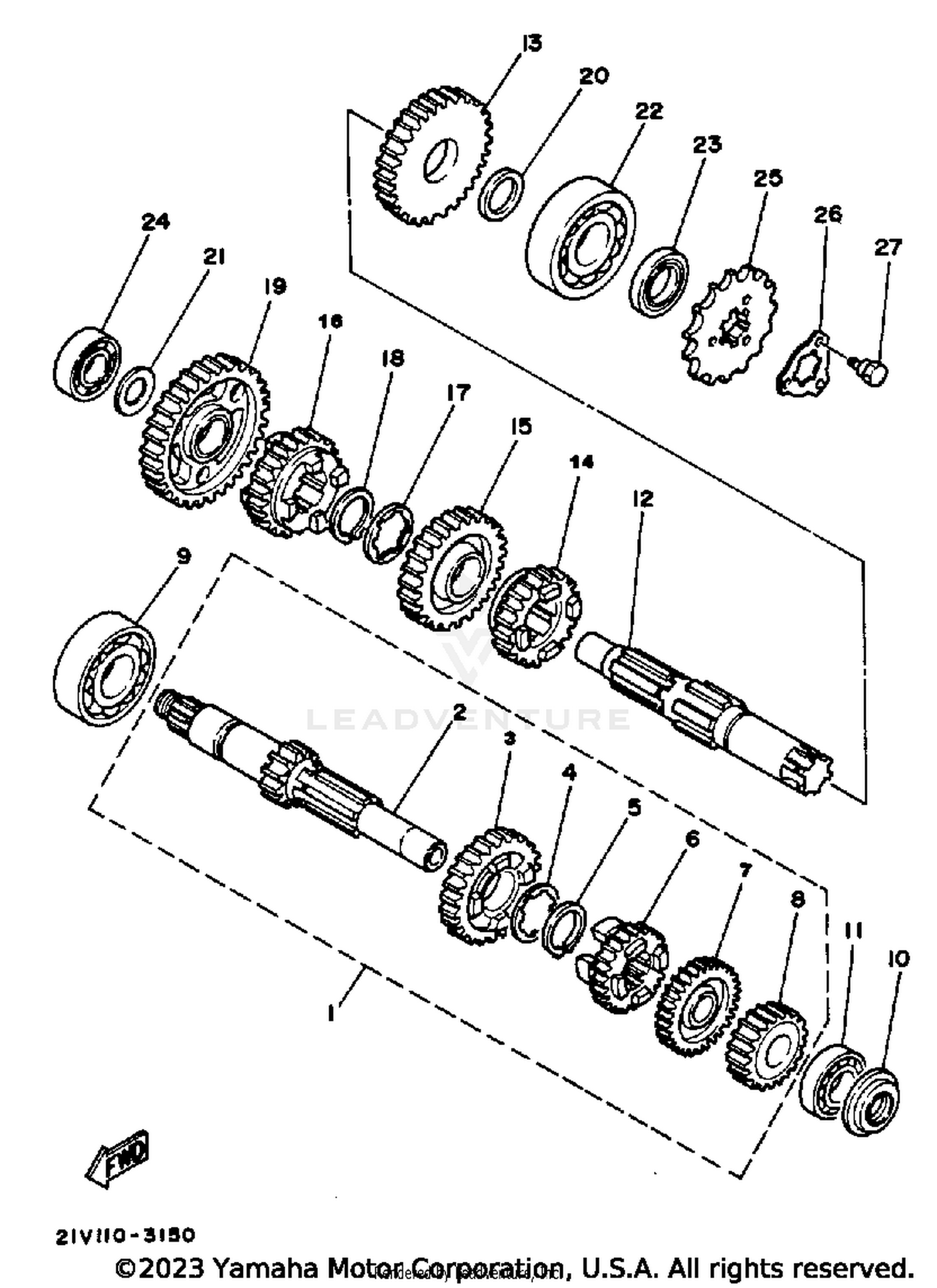

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSEMBLY COMP. (12T)
21V-17401-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#2
MAIN AXLE ASSEMBLY COMP. (12T)
21V-17401-00-00
|
$199.99 | ||
|
Unavailable |
|||
|
#3
GEAR, 5TH PINION (28T)
15A-17151-00-00
Superseded by 15A-17151-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-16209-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP, S-TYPE
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 2ND PINION (22T)
5H0-17121-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 4TH PINION (25T)
15A-17141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND PINION (19T)
15A-17121-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93101-15101-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20211-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVE AXLE ASSY
21V-17402-00-00
|
$71.81 | ||
|
Unavailable |
|||
|
#13
GEAR, 2ND WHEEL (34T)
15A-17221-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 4TH WHEEL (26T)
15A-17241-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 3RD WHEEL (29T)
15A-17231-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 6TH WHEEL (23T)
1EV-17251-00-00
Superseded by 5MP-17261-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
90209-18208-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GEAR, 1ST WHEEL (34T)
15A-17211-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-203E7-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE (T=1.0)
90201-154E8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-20242-00
Superseded by 93102-20004-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20211-00
|
$28.99 | ||
|
Unavailable |
|||
|
#25
SPROCKET, DRIVE 11T
93832-11007-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER,SPROCKET
21V-17456-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
BOLT
90109-06684-00
|
$3.65 | ||
|
Unavailable |
|||
