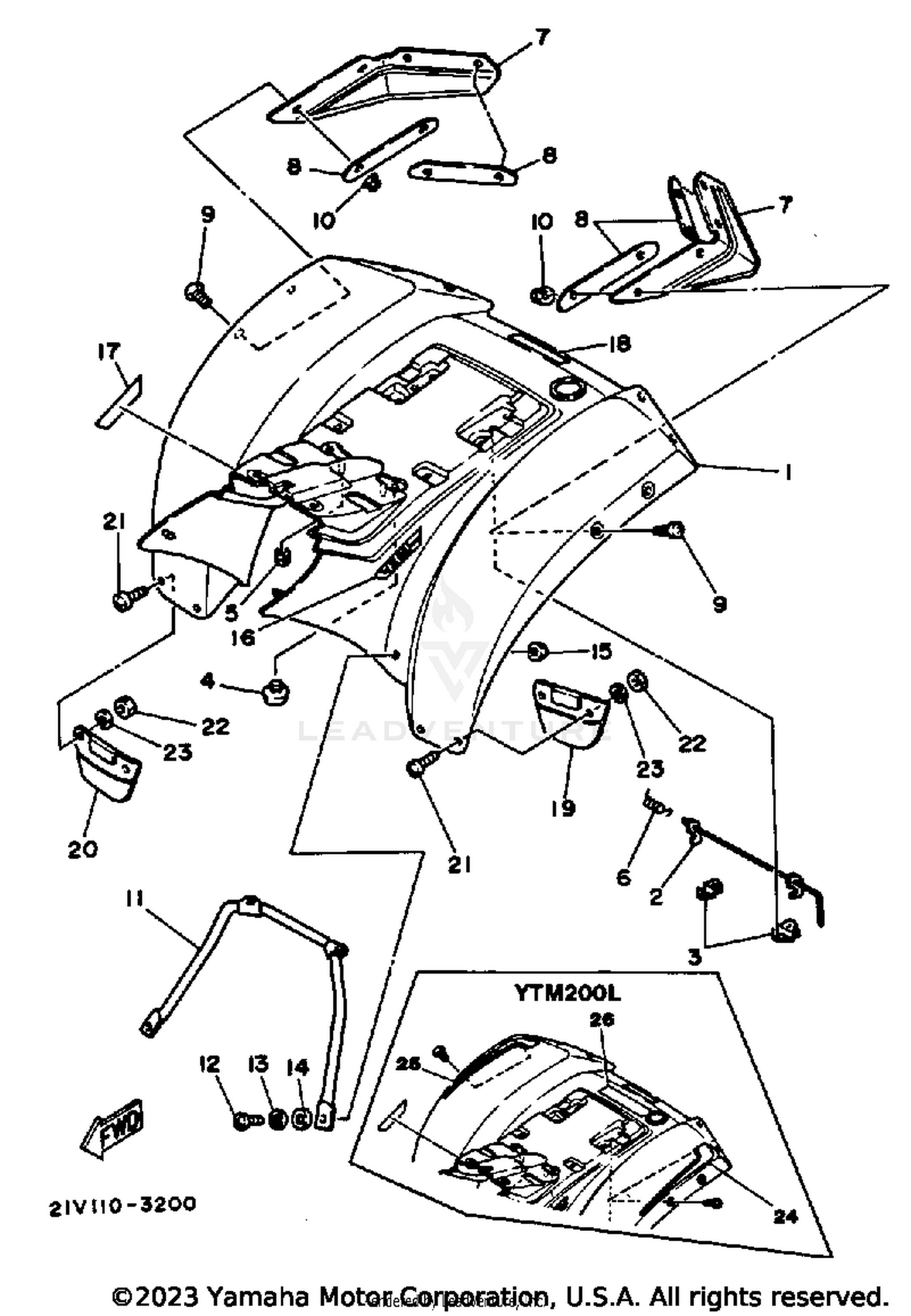

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR
21V-21611-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#1
FENDER,REAR
21V-21611-50-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
LEVER,SEAT
21V-24776-00-00
|
$16.18 | ||
|
Unavailable |
|||
|
#3
BRACKET,SEAT LEVER
21V-24775-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#4
PAD, SEAT
1L9-24741-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-19351-00
|
$3.50 | ||
|
Unavailable |
|||
|
#6
SPRING, TORSION
90508-23567-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLAP
21V-21621-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#8
PLATE,FLAP FITTING 1
21V-21623-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#9
SCREW, BINDING
90154-05059-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY,FENDER 1
21V-21613-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#12
SCREW, BIND
98903-06016-00
Superseded by 98980-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
EMBLEM 1
21V-2163G-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
EMBLEM 1
21V-2163G-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#16
EMBLEM 1
21V-2163G-30-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
EMBLEM 2
21V-2163H-50-00
|
$3.40 | ||
|
Unavailable |
|||
|
#17
EMBLEM 2
21V-2163H-30-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
EMBLEM 2
21V-2163H-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
EMBLEM 4
21V-21784-50-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
EMBLEM 4
3X3-21784-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
COVER,REAR FENDER
21V-2163A-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#20
COVER,REAR FNDR.3
21V-2163E-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#21
SCREW, BINDING
90154-05002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BINDING
90154-05016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, U
95612-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GRPHC,R/FNDR CVR L
21V-21661-30-00
|
$16.99 | ||
|
Unavailable |
|||
|
#24
GRPHC,R/FNDR CVR L
21V-21661-50-00
|
$16.99 | ||
|
Unavailable |
|||
|
#25
GRPHC,R/FNDR CVR R
21V-21662-50-00
|
$16.99 | ||
|
Unavailable |
|||
|
#25
GRPHC,R/FNDR CVR R
21V-21662-30-00
|
$13.14 | ||
|
Unavailable |
|||
|
#26
LABEL,SAFETY
21V-21659-30-00
|
$7.99 | ||
|
Unavailable |
|||
