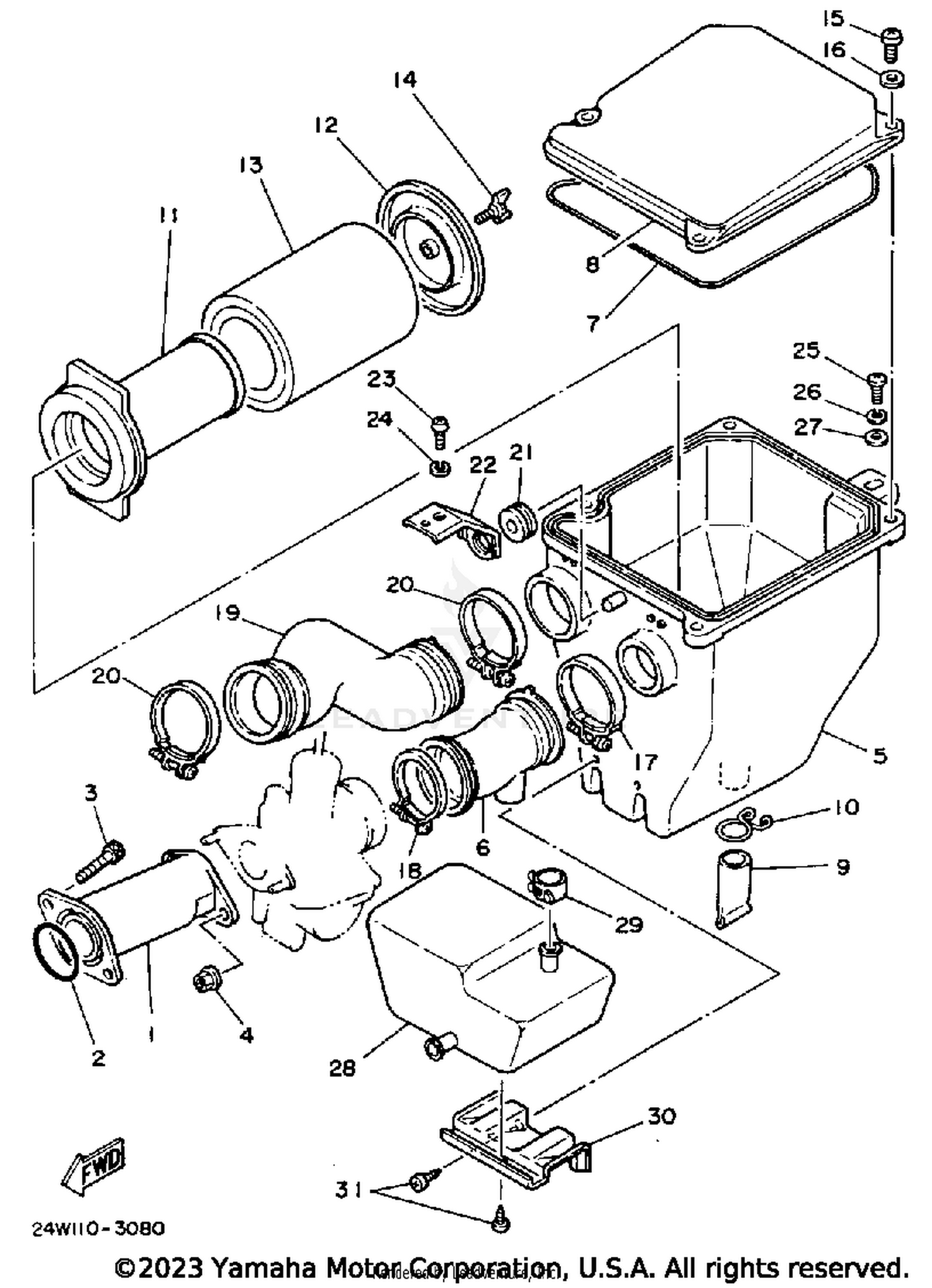

Air Filter Ytm200l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
24W-13586-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-35537-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CASE,AIR CLEANER 1
21V-14411-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#6
JOINT,AIR CLNR 1
24W-14453-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#7
GASKET, TAIL LENS
1VJ-14462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CAP, CLEANER CASE 1
21V-14412-00-00
Superseded by 21V-14412-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
59V-14457-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-22080-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GUIDE, ELEMENT
21V-14458-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, ELEMENT FTNG
21V-14468-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT, AIR CLEANER
21V-14451-00-00
Superseded by 21V-14451-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ELEMENT ASSEMBLY CLEANER
21V-14450-90-00
|
$35.99 | ||
|
Unavailable |
|||
|
#14
BOLT, WING
90122-05018-00
Superseded by 90122-05022-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, HOSE
90460-49058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90460-46206-00
Superseded by 90450-47002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DUCT
21V-14437-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#20
CLAMP, HOSE
90460-49058-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-16233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY 2
21V-14499-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#27
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAMBER,AIR
21V-13581-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-19051-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY 1
21V-14493-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#31
SCREW, TAPPING
97780-50612-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
