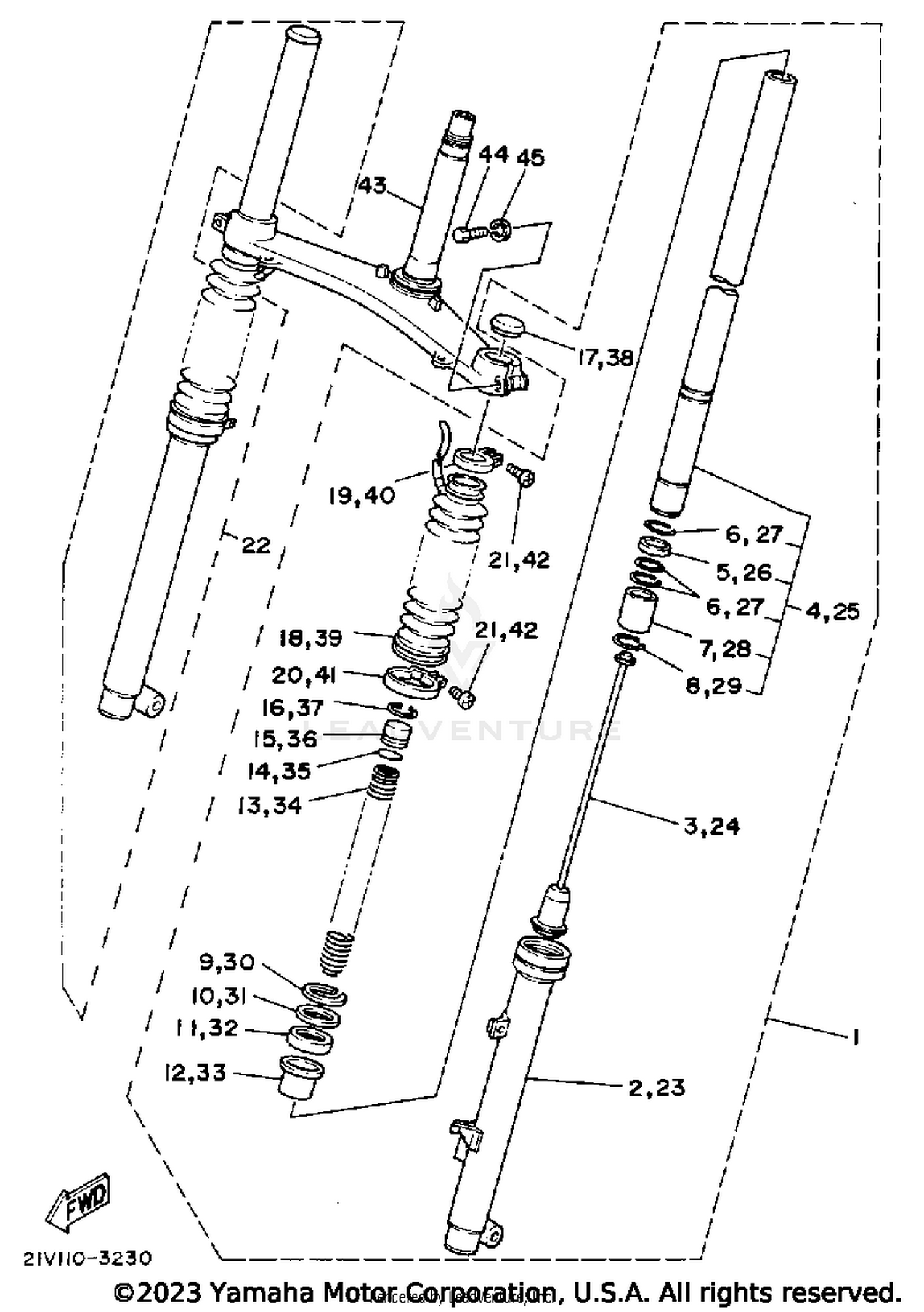

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASY L
21V-23102-00-35
|
$329.99 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE LH
21V-23106-00-35
|
$111.99 | ||
|
Unavailable |
|||
|
#3
CYLINDER,FRTFRK
21V-23170-00-00
|
$19.72 | ||
|
Unavailable |
|||
|
#4
INNER TUBE 1
21V-23110-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#5
COLLAR
5H0-23113-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#6
CIRCLIP,OUTER
93440-29110-00
|
$1.98 | ||
|
Unavailable |
|||
|
#7
FREE-PSTN, FRT FORKFRONT FORK
5H0-23189-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
CIRCLIP, OUTER
93440-27091-00
|
$4.60 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99009-42500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, OIL SEAL
5H0-23146-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#11
OIL SEAL,SWO-TYPE
93110-30013-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
METAL, SLIDE 1
5H0-23125-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#13
SPRING,FRONT FORK
21V-23141-00-00
|
$21.28 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,CAP
5H5-23111-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP,INNER
93450-27071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG,INNER TUBE
5H5-23154-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT
21V-2312A-00-00
|
$31.60 | ||
|
Unavailable |
|||
|
#19
CLAMP,HOSE
90460-52259-00
|
$5.00 | ||
|
Unavailable |
|||
|
#20
CLAMP,HOSE
90460-35260-00
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
FRONT FORK ASY R
21V-23103-00-35
|
$329.99 | ||
|
Unavailable |
|||
|
#23
OUTER TUBE RH
21V-23107-00-35
|
$111.99 | ||
|
Unavailable |
|||
|
#24
CYLINDER,FRTFRK
21V-23170-00-00
|
$19.72 | ||
|
Unavailable |
|||
|
#25
INNER TUBE 1
21V-23110-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#26
COLLAR
5H0-23113-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#27
CIRCLIP,OUTER
93440-29110-00
|
$1.98 | ||
|
Unavailable |
|||
|
#28
FREE-PSTN, FRT FORKFRONT FORK
5H0-23189-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#29
CIRCLIP, OUTER
93440-27091-00
|
$4.60 | ||
|
Unavailable |
|||
|
#30
CIRCLIP
99009-42500-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
WASHER, OIL SEAL
5H0-23146-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#32
OIL SEAL,SWO-TYPE
93110-30013-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
METAL, SLIDE 1
5H0-23125-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#34
SPRING,FRONT FORK
21V-23141-00-00
|
$21.28 | ||
|
Unavailable |
|||
|
#35
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
BOLT,CAP
5H5-23111-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#37
CIRCLIP,INNER
93450-27071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
PLUG,INNER TUBE
5H5-23154-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#39
BOOT
21V-2312A-00-00
|
$31.60 | ||
|
Unavailable |
|||
|
#40
CLAMP,HOSE
90460-52259-00
|
$5.00 | ||
|
Unavailable |
|||
|
#41
CLAMP,HOSE
90460-35260-00
|
$4.88 | ||
|
Unavailable |
|||
|
#42
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#43
UNDER BRACKET
21V-23340-10-98
|
$129.99 | ||
|
Unavailable |
|||
|
#44
BOLT,WITH WASHER
97023-10035-00
Superseded by 97070-10035-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
