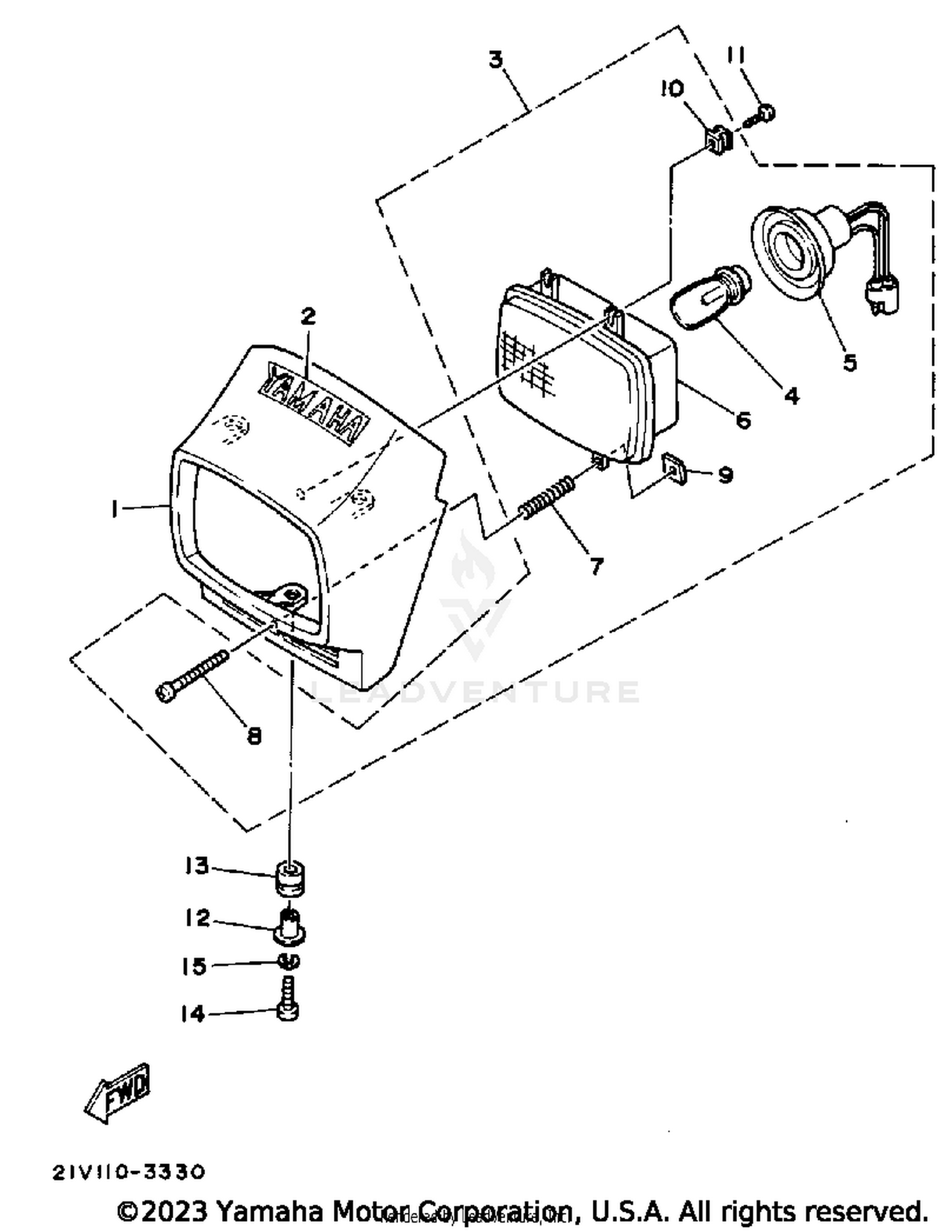

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,HEADLIGHT
21V-84311-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#1
BODY,HEADLIGHT
21V-84311-50-00
|
$21.06 | ||
|
Unavailable |
|||
|
#2
EMBLEM
21V-23395-50-00
|
$8.49 | ||
|
Unavailable |
|||
|
#2
EMBLEM
21V-23395-30-00
|
$4.35 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
4U3-23395-00-00
Superseded by 99244-00100-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (21V-84314-00-00)-45/45W)
21V-84314-00-00
Superseded by 21V-84314-00-XX
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET
21V-84312-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#6
LENS ASSEMBLY
21V-84320-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SCREW
21V-84335-00-00
Superseded by 3AA-84332-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, ADJUSTING
21V-84334-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, BODY FITTING
21V-84316-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#11
SCREW, TAPPING
97702-40614-00
Superseded by 97707-40614-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-060G8-00
Superseded by 90387-06166-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-14412-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PAN HEAD
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
