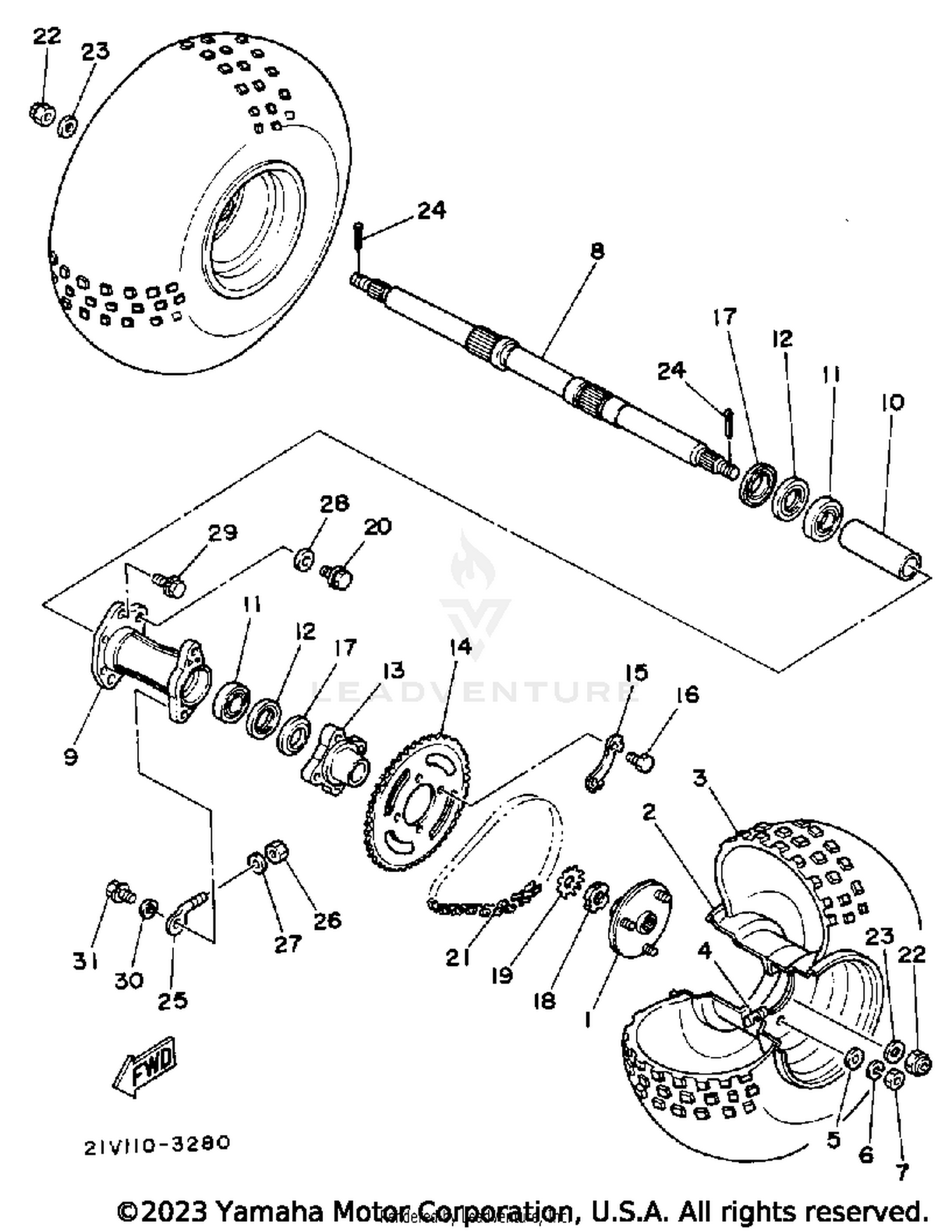

Rear Wheel Ytm200l Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL (3X3-25383-00)
5V7-25383-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#2
WHEEL, FRONT
29U-25180-00-35
|
$143.99 | ||
|
Unavailable |
|||
|
#3
22X11.00-8 KT221TL
94122-11572-00
|
$54.53 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
AXLE,WHEEL
21V-25381-01-00
|
$266.99 | ||
|
Unavailable |
|||
|
#9
HUB,REAR
21V-25311-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#10
SPACER (21V)
90560-40308-00
|
$13.49 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-00803-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL, SD-TYPE
93102-46274-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOSS
21V-25521-01-00
|
$95.99 | ||
|
Unavailable |
|||
|
#14
SPROCKET,DRVN 42T
21V-25442-20-00
|
$39.99 | ||
|
Unavailable |
|||
|
#15
WASHER
5H0-25412-00-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, HUB DUST
21V-25367-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT,SPEC'L SHAPE
90179-38392-00
|
$11.49 | ||
|
Unavailable |
|||
|
#19
WASHER,LOCK
90215-39207-00
|
$5.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-10078-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
520 D0-60L
94581-18060-00
|
$96.99 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE
95702-20300-00
Superseded by 95707-20300-00
|
$20.99 | ||
|
Unavailable |
|||
|
#23
WASHER
92901-20600-00
Superseded by 92903-20600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER,CHAIN 1
21V-25388-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-10774-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,WITH WASHER
90119-10086-00
Superseded by 97070-10035-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
Unavailable |
|||
|
#31
BOLT, WITH WASHER
90119-10087-00
Superseded by 90119-10078-00
|
$6.49 | ||
|
Unavailable |
|||
