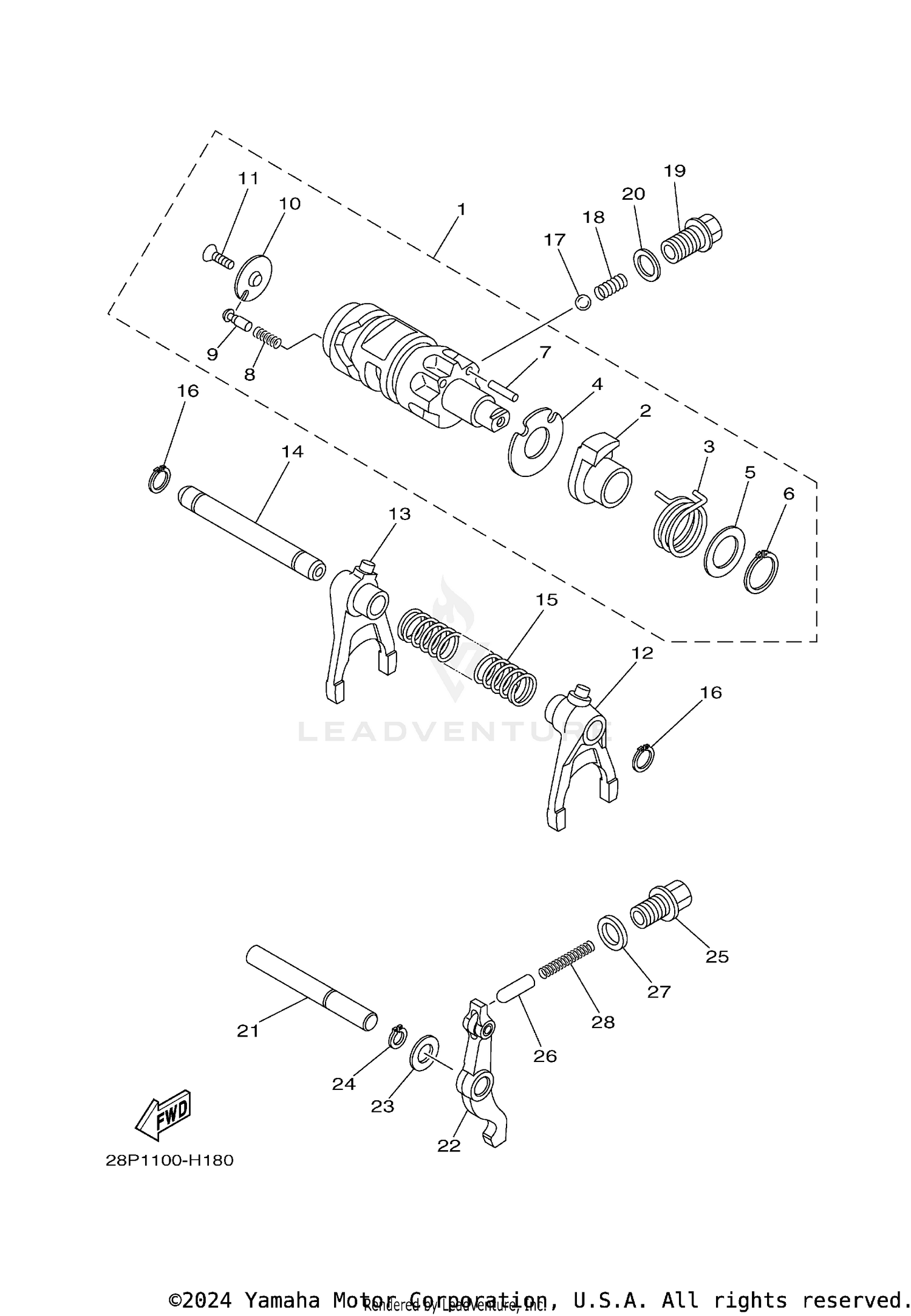

Shift Cam & Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSY
3B4-18540-21-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAM, LEVER
5KM-18171-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-32132-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SHIFT CAM
3B4-18331-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
90560-20040-00
|
$3.15 | ||
|
Unavailable |
|||
|
#6
CIRCLIP, S-TYPE
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
93604-18100-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-06022-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
POINT, NEUTRAL
5KM-18542-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SIDE 2
4UN-18566-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-05016-00
Superseded by 90149-05015-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FORK, SHIFT 1
3B4-18511-11-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK, SHIFT 2
3B4-18512-11-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAR, SHIFT FORK GUIDE 1
3B4-18531-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-140A2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BALL
93503-08007-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-10353-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-14194-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SHAFT, SHIFTER
3B4-18318-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER LEVER ASSY
28P-18140-02-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-127J6-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
Unavailable |
|||
|
#25
BOLT
90109-14002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER, CAM
1J7-18547-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-14043-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPRING, COMPRESSION
90501-090A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
