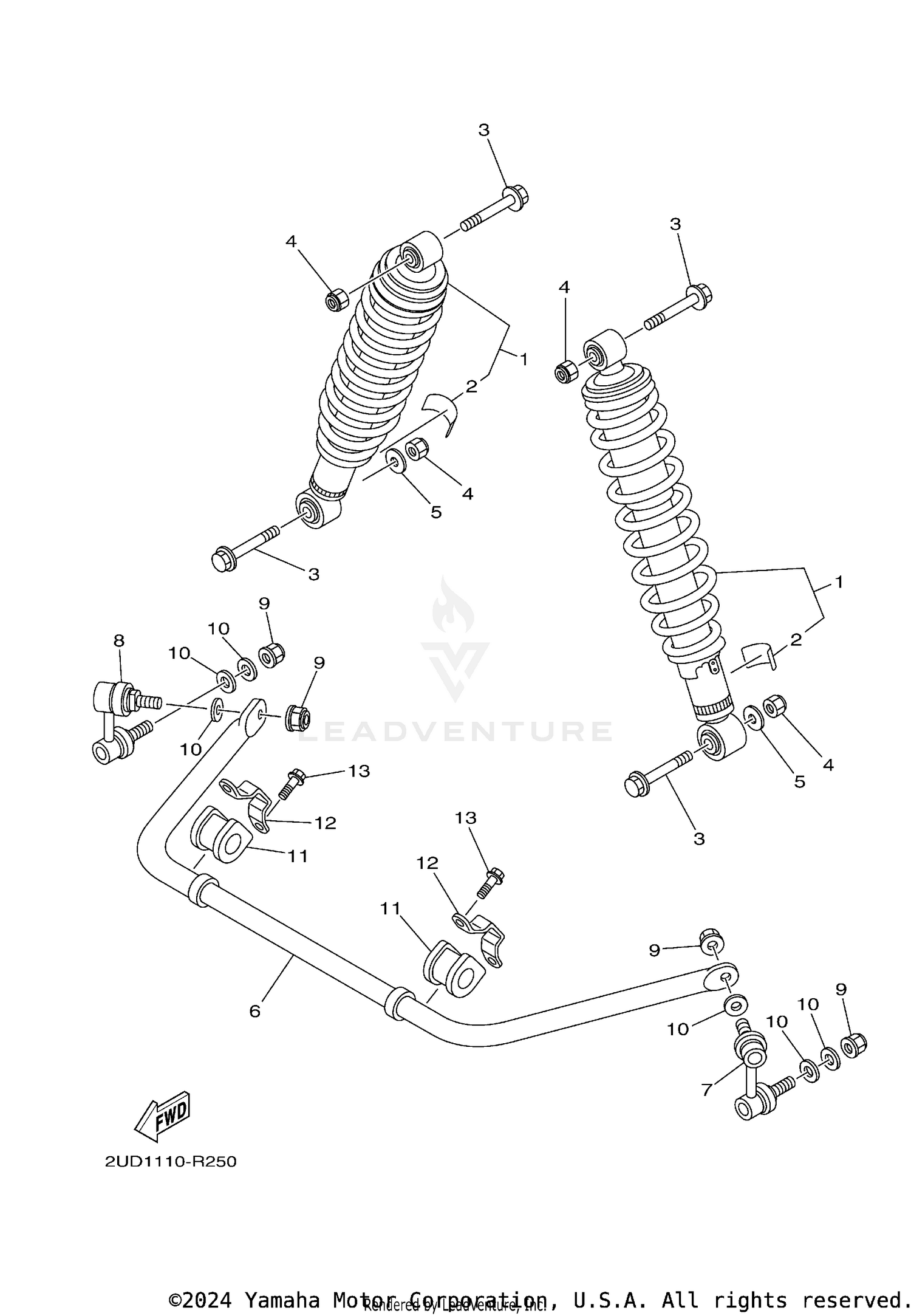

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
BFE-F2200-01-00
|
$227.99 | ||
|
Unavailable |
|||
|
#2
LABEL, WARNING
BB5-F2259-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10131-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, STABILIZER
1HP-G7491-01-00
|
$65.99 | ||
|
Unavailable |
|||
|
#7
JOINT, STABILIZER 1
16B-2385L-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, STABILIZER 2
16B-2385M-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Unavailable |
|||
|
#11
BUSH, STABILIZER FRONT
1HP-F386G-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, STABILIZER FRONT
1HP-F386H-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
