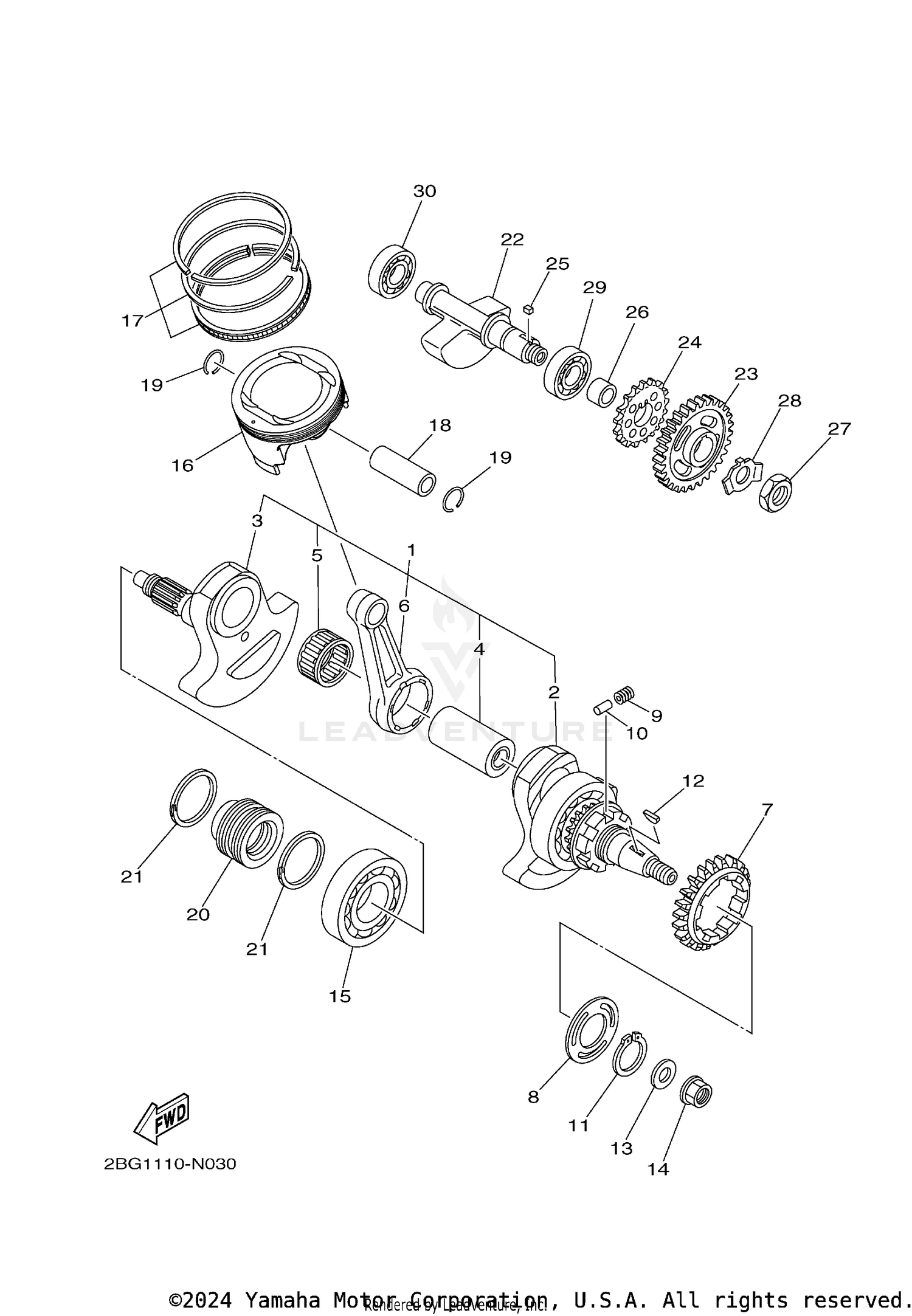

Crankshaft & Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
2BG-11400-10-00
|
$684.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK SUB ASSY 1
3B4-11401-09-00
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK SUB ASSY 2
3B4-11402-09-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
5VK-11681-01-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-84039-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
2BG-11651-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE (44T)
1HP-11536-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, BEARING COVER
5KM-11565-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-220A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93606-09002-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP (6U2)
99009-35400-00
Superseded by 93410-35M10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY, WOODRUFF
90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-16013-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-16004-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-30810-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON (STD)
2BG-11631-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON RING SET (STD)
1S3-11603-10-00
|
$66.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, PISTON
5VK-11633-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93450-24154-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER 1
3B4-16181-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, CRANK
2BG-11447-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#22
WEIGHT 1
2BG-11454-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, BALANCE WEIGHT
1HP-11531-10-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVE
1HP-13354-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY, STRAIGHT
90282-05013-00
Superseded by 90282-05065-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COLLAR
90387-24001-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
90170-18003-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-18001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BEARING
93306-30534-00
Superseded by 93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93306-30438-00
Superseded by 93306-30421-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
