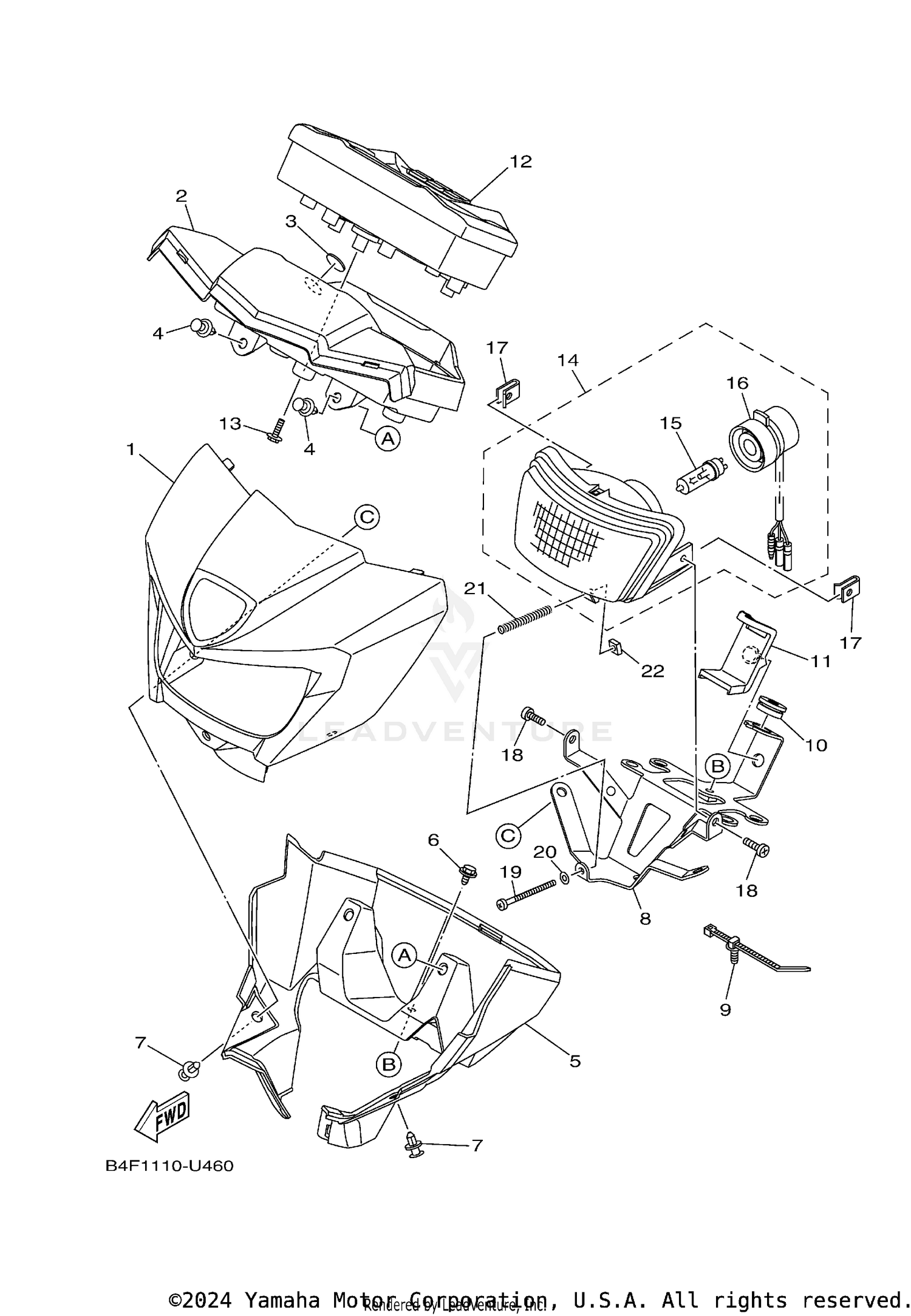

Headlight 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER COMP.
B4F-H252L-70-00
|
$151.99 | ||
|
Unavailable |
|||
|
#2
COVER, METER
B4F-H3559-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUNING FORK MARK
5GT-2836B-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER,HDLBR UPR 1
2SM-F6143-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06079-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
STAY
B4F-F6292-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
1NS-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR 1
B4F-F622K-00-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
METER ASSY
BYX-H3500-10-00
|
$215.99 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING
90163-05006-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
HEADLIGHT ASSY
2PA-84300-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BULB, HEADLIGHT(12V-35/36.5W)
5VM-84314-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SOCKET CORD ASSY 1
2PA-84340-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
5VM-84117-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98502-05012-00
Superseded by 98517-05012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, ADJUSTING
5BF-8433E-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-100A3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, ADJUSTING
5VM-84334-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
