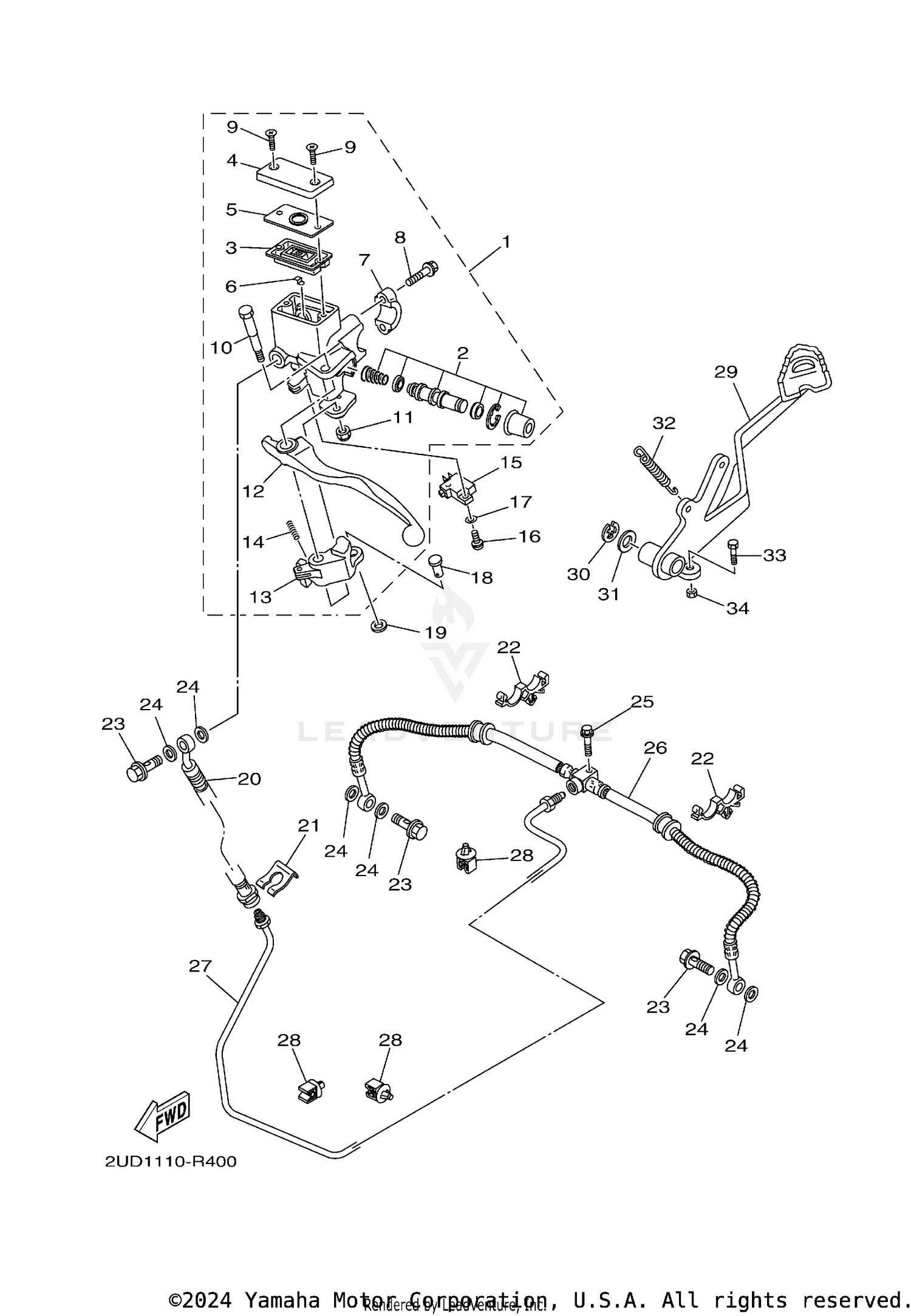

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. MASTER CYLINDER ASSY.
2UD-F583V-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
B16-F5807-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
B16-F5854-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
B16-F5852-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DIAPHRAGM
B16-F585B-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEPARATOR
B16-F5889-00-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
B16-F5867-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
B16-F6332-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
98780-04012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
2UD-F589F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 1
2UD-F6294-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, BRAKE
2UD-F3912-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KNOCKER
2UD-F6168-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, SEAT
2UD-F5865-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOP SWITCH ASSY
1HP-82530-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
90240-08013-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE, BRAKE 1
2UD-F5872-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
2GU-25866-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BRAKE 3
2BG-F5874-02-00
|
$77.99 | ||
|
Unavailable |
|||
|
#27
PIPE, BRAKE 2
1HP-F5882-02-00
|
$18.49 | ||
|
Unavailable |
|||
|
#28
CLAMP 1
5KM-81677-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PEDAL, BRAKE
1HP-F7211-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#30
CIRCLIP
99002-10600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, TENSION
90506-20014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
97022-06014-00
Superseded by 97012-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEXAGON
95302-06600-00
Superseded by 95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
