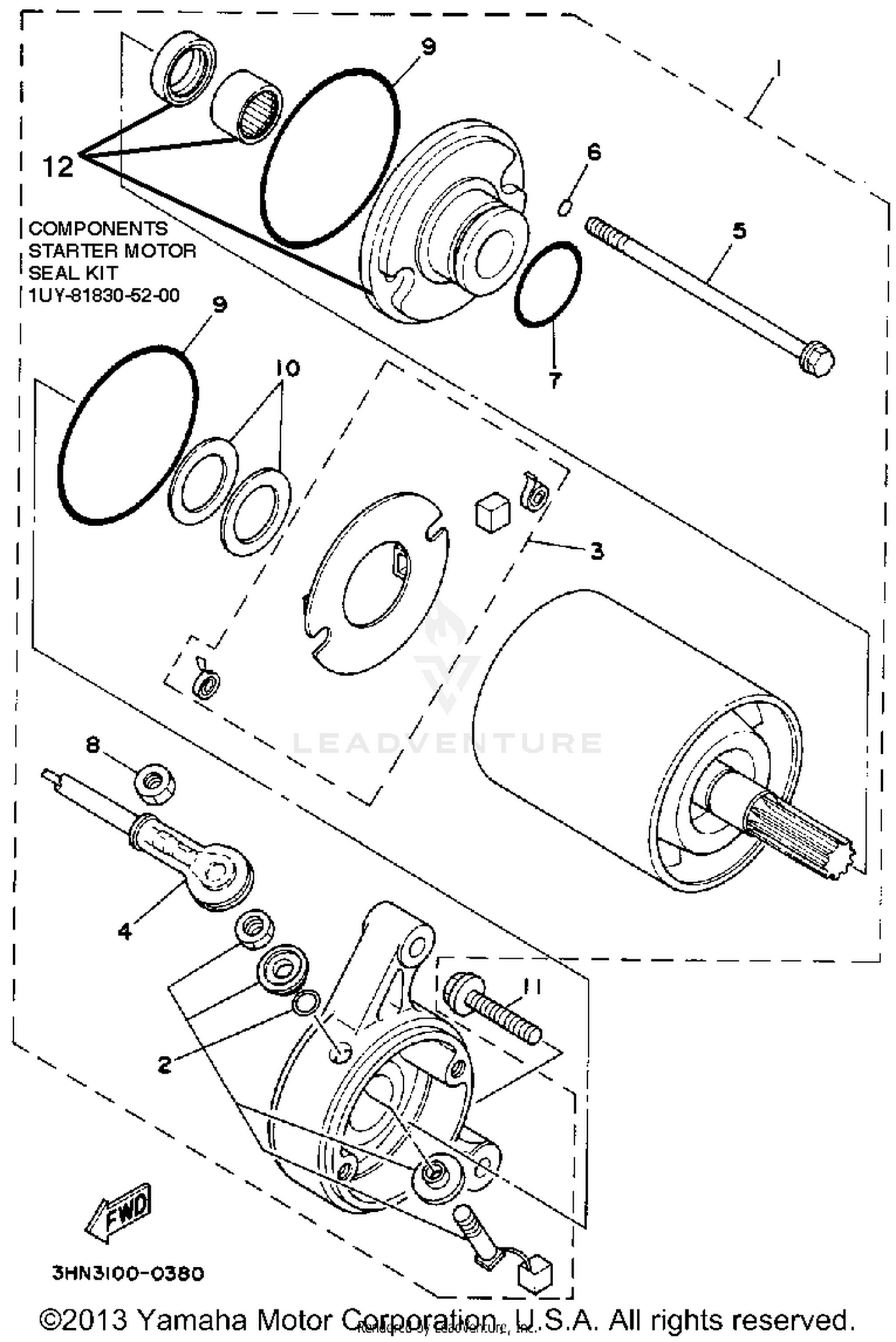

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
2HR-81800-51-00
Superseded by 1UY-81890-00-00
|
$659.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH AND BOLT
1UY-81818-50-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRUSH HOLDER ASSY
8L6-81840-50-00
Superseded by 8L6-81840-51-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CORD, STARTER MOTOR
2HR-81815-51-00
Superseded by 2HR-81815-52-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, THROUGH
3GD-81826-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
8L6-81847-50-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1UY-81847-50-00
Superseded by 93210-24235-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING
4H7-81844-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER 1
4H7-81843-50-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STARTER MOTOR SEAL KIT
1UY-81830-52-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
